ADSS Aerial Fiber Cable Cable 24 48 Core Outdoor Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001/CE/ROHS Model Number: ADSS double jacket

Detail Information

Fiber Type: G652D/G657A1 Application: Aerial
Number Of Conductors: 12core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 80m 100m 150m 200m 300m
High Light:

48 Core ADSS Aerial Fiber Cable

,

24 Core ADSS Aerial Fiber Cable

Product Description

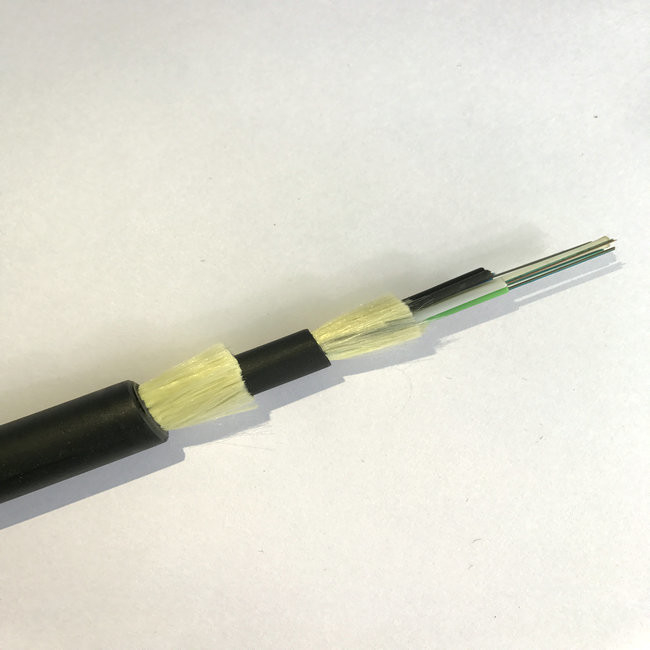

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completedwith a PE sheath.

ADSS Aerial Fiber Cable Cable  24 48 Core Outdoor Fiber Optic Cable 0
Can support Customize Color Yellow Span100m-800m



Cable Paremeter:
Cable Structure and Parameter
Fiber Count
12
48
Number of tube & Fillers
1+4
4+1
Fiber number per tube
12
12
Central strength member, FRP diameter (mm)
1.5
1.5
PBT Loose tube diameter (mm)
2.0
2.0
Sheath thickness (mm)
1.8
1.8
Cable diameter (mm)
10.2
10.5
Cable weight (kg/km)
100
105
Tensile strength(N) while fiber strain is ≤0.33%
3000
3000




Technical Data:



Cable fiber count
/
2~30
32~60
62~72
Structure
/
1+5
1+5
1+6
Fiber style
/
G.652D
Central strength member
material
mm
FRP
Diameter (average)
1.5
1.5
2.1
Loose Tube
Material
mm
PBT
Diameter (average)
1.8
2.1
2.1
Thickness(average)
0.32
0.35
0.35
Max fiber/loose tube
6
12
12
Tubes color
Full color identification
Fiber excess length
%
0.7~0.8
Water resistance
Material
/
Cable jelly
Inner sehath
material
mm
MDPE
Inner sheath
0.9mm
Non-metallic strengthen components
Material
/
Aramid Yarn
Outer sheath
material
mm
MDPE
Outer sheath
1.8mm
Cable diameter(average)
mm
10.9
11.5
12.1
Cable weight (Approximate)
kg/km
95
110
120
Cable Sectional area
mm2
93.31
103.87
114.99
Attenuation coefficient(Max)
1310nm
dB/km
0.35
1550nm
0.21
Rated Tensile Strength(RTS)
kn
6
Max allowed tension( MAT)
kn
2.5
Annual average operating tension (EDS)
kn
3.2
Young's modulus
kn/mm2
7.8
Coefficient of thermal expansion
10-6/℃
9
Crush resistance
Long term
N/100mm
1100
Short term
2200
Permission Bent Radius
static
mm
15 of OD
dynamic
20 of OD

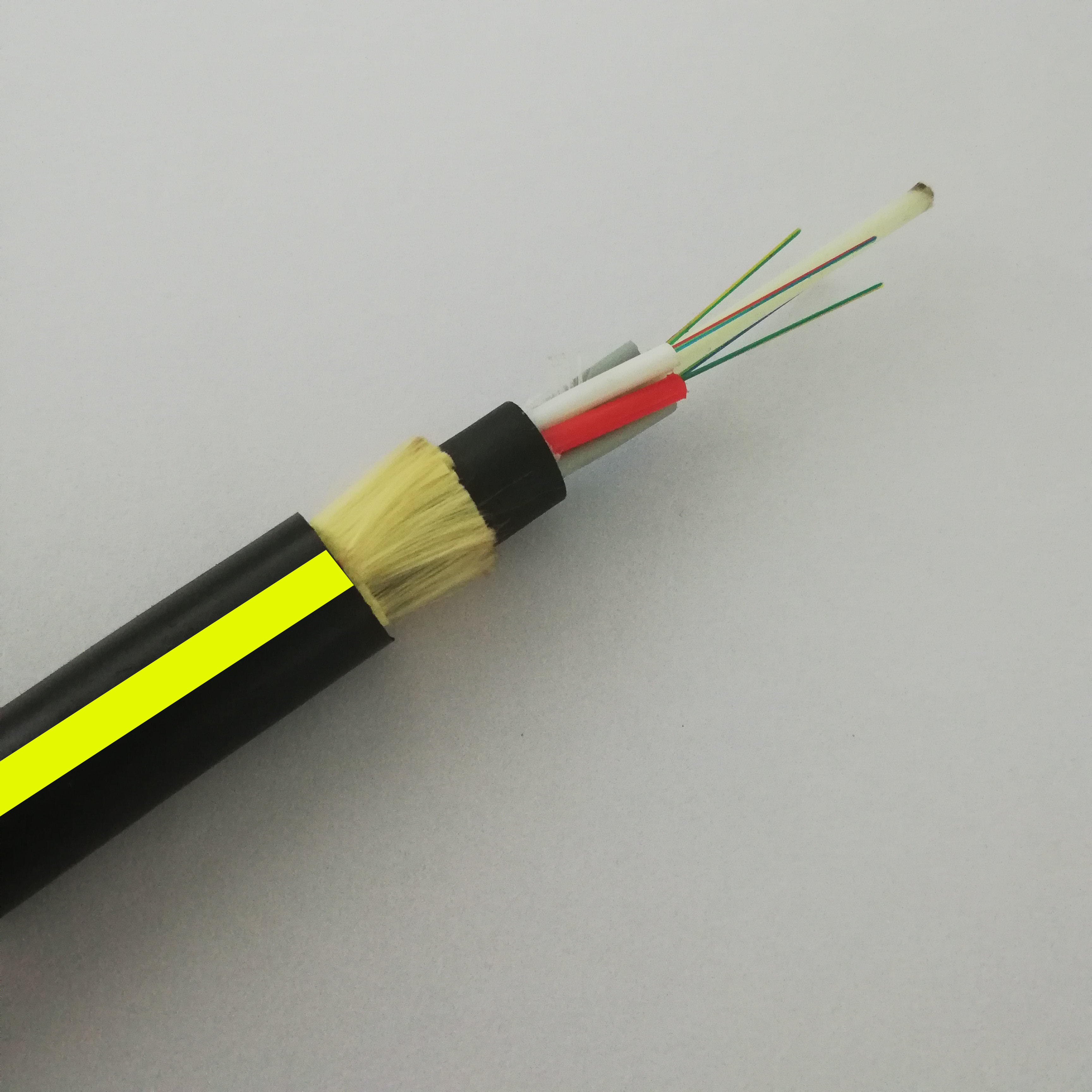

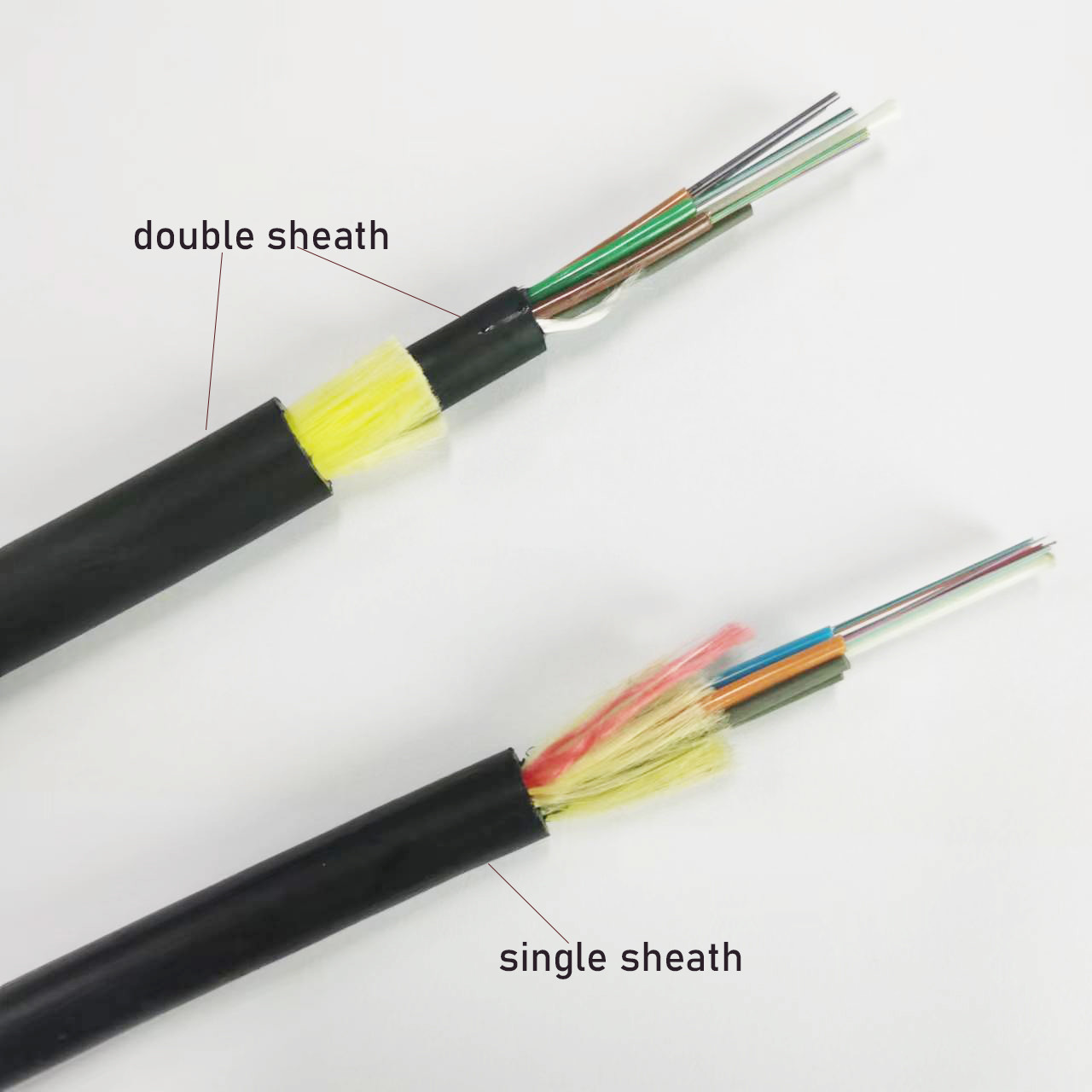

Long Span ADSS Double Jacket Fiber Cable Up To 800m Span

Fiber Type:G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

Span: 100-800m

Application: Self-support Aerial installation

Standards:ADSS Fiber Optical Cable complies with IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794

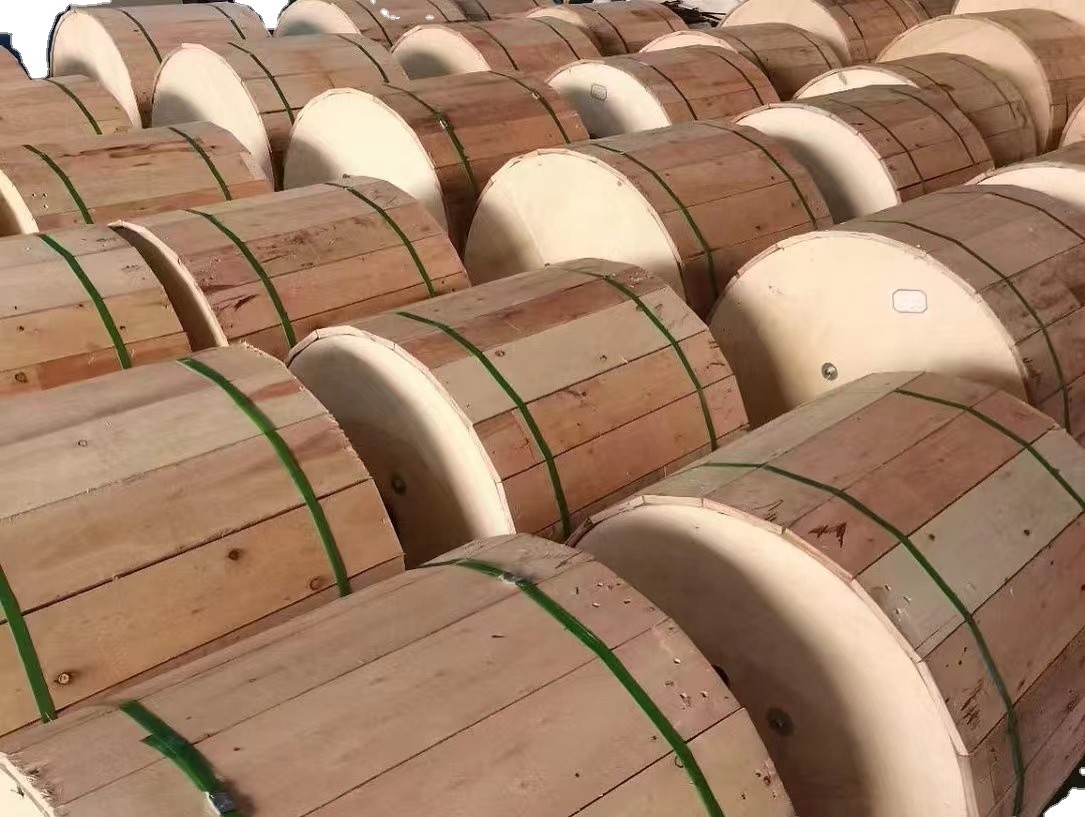

Packing details:

1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements

1.One wooden reel of the cable packed in a carton

The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about

ADSS Aerial Fiber Cable Cable  24 48 Core Outdoor Fiber Optic Cable 1

ADSS Aerial Fiber Cable Cable  24 48 Core Outdoor Fiber Optic Cable 2





Delivery to Kenya 40HQ Container :



ADSS Aerial Fiber Cable Cable  24 48 Core Outdoor Fiber Optic Cable 3

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available


3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.


6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.



7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
