ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m
ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m
ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m
Contact Now

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: ADSS

Detail Information
Model Number: ADSS Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652,G652D,50/125,62.5/125,OM3 Length: As Required
Color: Customized Tube: Multi Loose Tube
Outer Sheath: PE Or As Your Request Central Strength Member: FRP
Package: Wooden Drum/Customized Application: Self-supporting Aerial
Oem: Available Temperature Range: -40°~60°C
Certificate: ISO9001/SGS/ROHS Span: 100-500M
Filler: Aramid Yarn
Highlight:

Aerial Fibre Outdoor Cable

,

Self Supporting Aerial Fibre Outdoor Cable

,

48 Core ADSS Fiber Optic Cable

Product Description

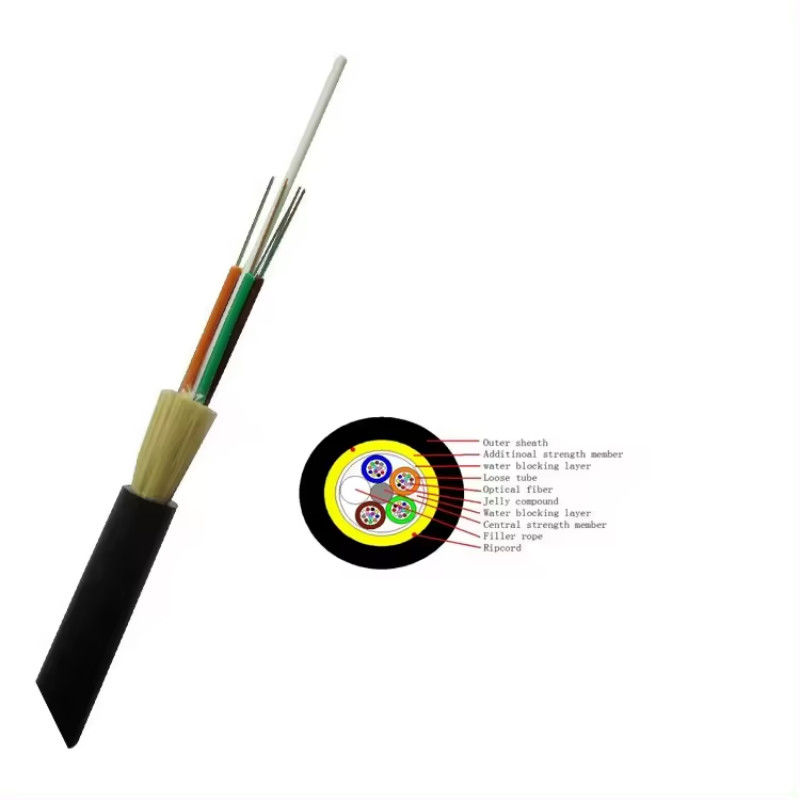

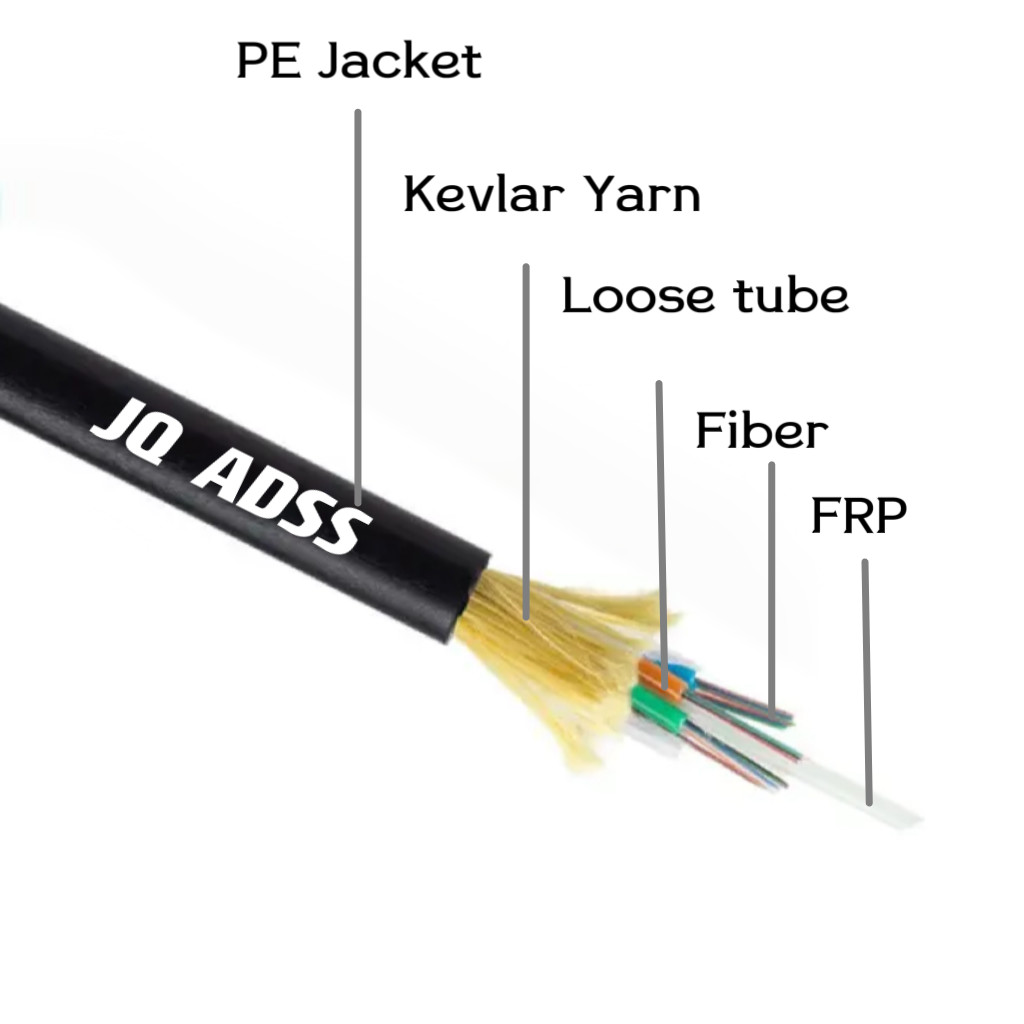

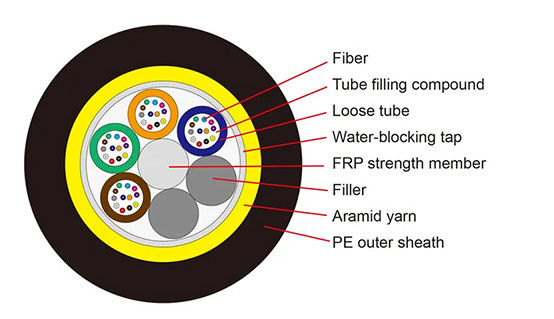

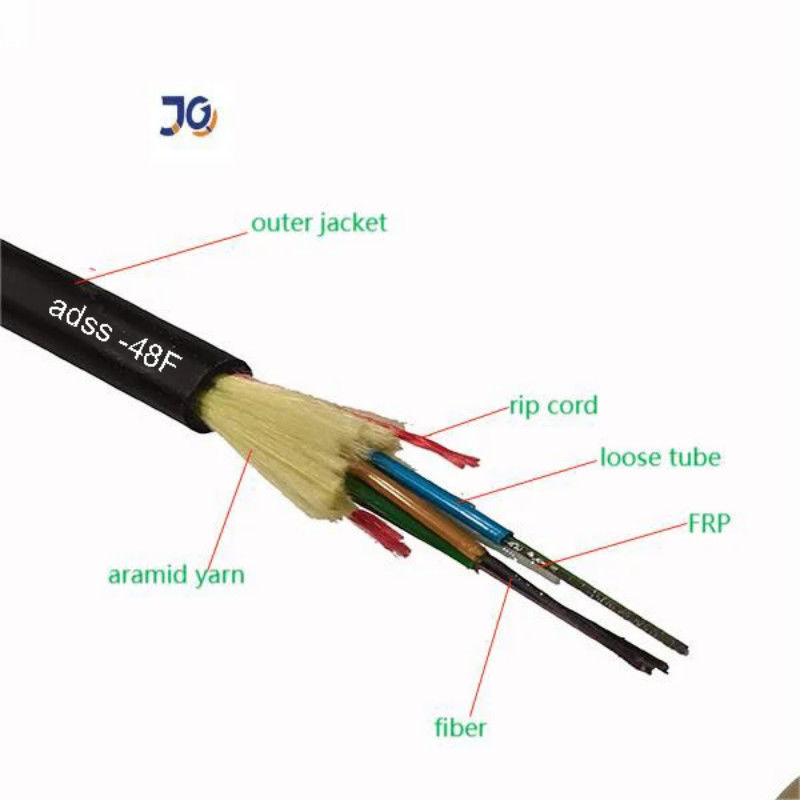

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 0
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 1ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 2
Feature:
* Can be installed without shutting off the power.
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
* Large span lengths.
* Good performance of tensile strength and temperature.
* The design life span is 30 years.

Applications:
Situation of large span.
Long distance communication system.
A long span can reach 1500M and the life span is more than 30 years.
Areas of strong electric field, multi-thunder, etc.

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 3

Specification:

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 4

Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

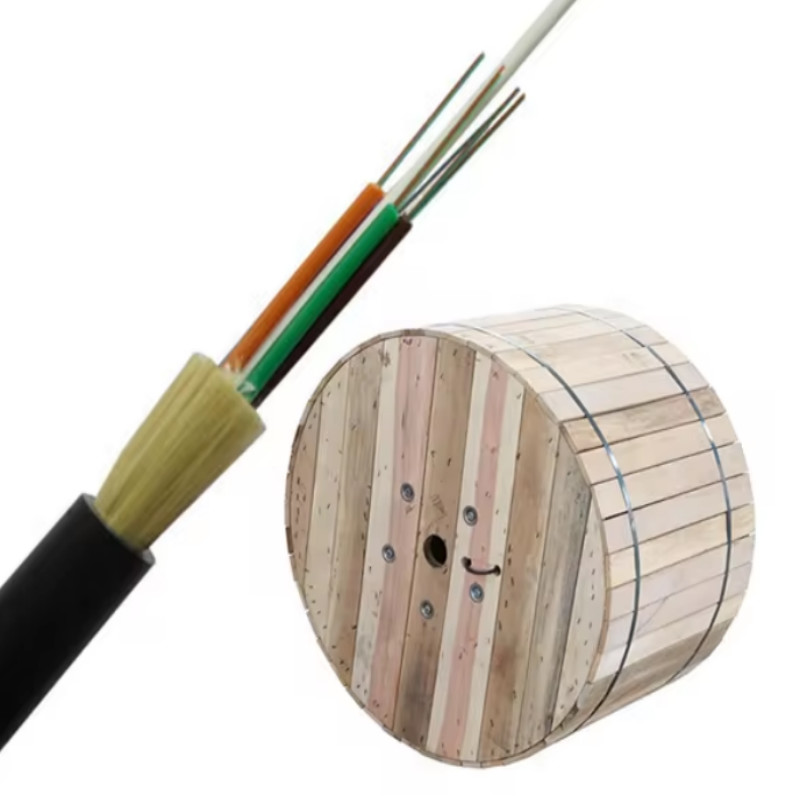

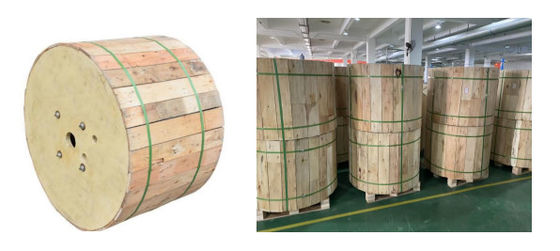

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 5

Free printing

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 6ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 7

Company Profile:

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 8ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 9

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 10

WHY CHOOSE US:

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 11

Certification:

ADSS All Dielectric 48 Core Self Supporting Aerial Fibre Outdoor Cable Single Jacket Span 100m 200m 12

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.



We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
