OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines
OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines
OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines
Contact Now

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines

Minimum Order Quantity : 1 Kilometer Packaging Details : Wooden Drum
Delivery Time : 2-5days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong，China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: ADSS

Detail Information
Model Number: ADSS Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China Number Of Conductors: ≥ 10
Fiber Type: G652,G652D,50/125,62.5/125,OM3 Length: As Required
Color: Customized Tube: Multi Loose Tube
Outer Sheath: PE Or As Your Request Central Strength Member: FRP
Package: Wooden Drum/Customized Application: Self-supporting Aerial
Oem: Available Temperature Range: -40°~60°C
Certificate: ISO9001/SGS/ROHS Span: 100-500M
Filler: Aramid Yarn
Highlight:

Aerial ADSS Singlemode Fiber Optic Cable

,

Single jacket Singlemode Fiber Optic Cable

,

1km Singlemode Fiber Optic Cable

Product Description

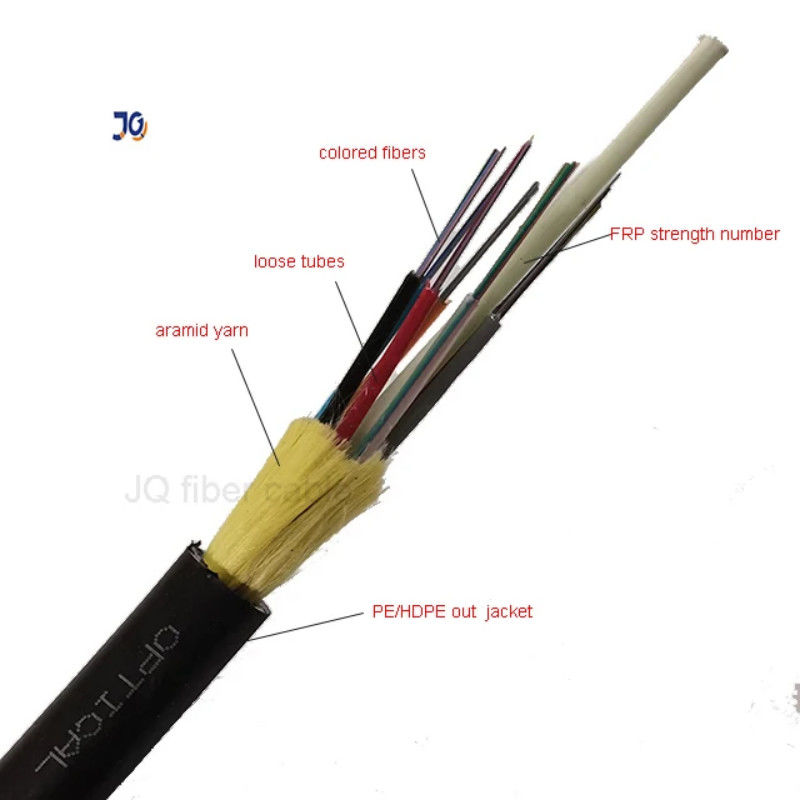

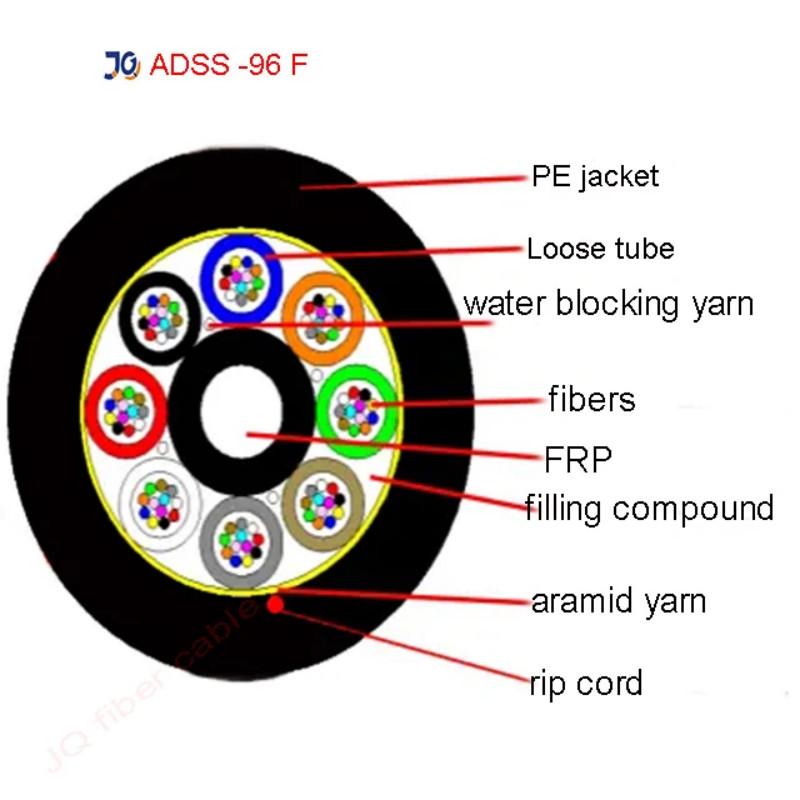

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound.It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

ADSS fiber optic cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fiber optic network.

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 0    OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 1

Feature:
1. Can be installed without shutting off the power.
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV.
3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
4. Large span lengths and the largest span is over 1000m.
5. Good performance of tensile strength and temperature.
6. The design life span is 30 years.

Applications:
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 2

Specification:

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 3

Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

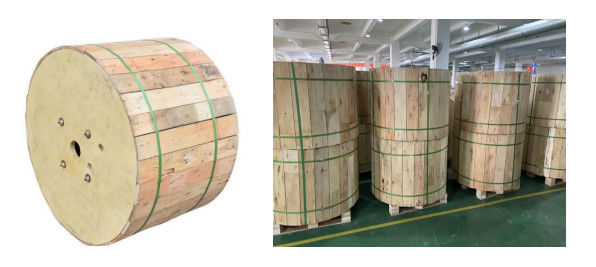

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 4

Free printing

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 5OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 6

Company Profile:

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 7OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 8

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 9

Our advantage:

1. Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2. OEM&ODM: We can help you to design or put your logo and company name into products.

3. Remote Technical support&Full Technical Document

4. Warranty: 3 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5. English software, English Indicator

6. Professional, Very competitive price

7. Large Stock, Fast Delivery

Certification:

OEM Aerial ADSS Single Jacket 96 Core Singlemode Fiber Optic Cable 1km Price For Different Voltage Power Lines 10

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.



We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at WhatsAapp +86 19120308386 to get free sample.
