Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D

Contact Now

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D

Minimum Order Quantity :	1 Kilometer	Packaging Details :	Wooden Drum
Delivery Time :	2-5days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	8000 kilometers per month

Place of Origin:	Guangdong，China	Brand Name:	JQ/OEM
Certification:	CE/ISO9001	Model Number:	ADSS

Detail Information
Model Number:	ADSS	Type:	Outdoor Fiber Optic Cable
Place Of Origin:	Guangdong, China	Number Of Conductors:	≥ 10
Fiber Type:	G652,G652D,50/125,62.5/125,OM3	Length:	As Required
Color:	Customized	Tube:	Multi Loose Tube
Outer Sheath:	PE Or As Your Request	Central Strength Member:	FRP
Package:	Wooden Drum/Customized	Application:	Self-supporting Aerial
Oem:	Available	Temperature Range:	-40°~60°C
Certificate:	ISO9001/SGS/ROHS	Span:	100-500M
Filler:	Aramid Yarn
Highlight:	Outdoor Fiber Cable ADSS , 144 Core Fiber Cable ADSS , G657A Fiber Cable ADSS

Product Description

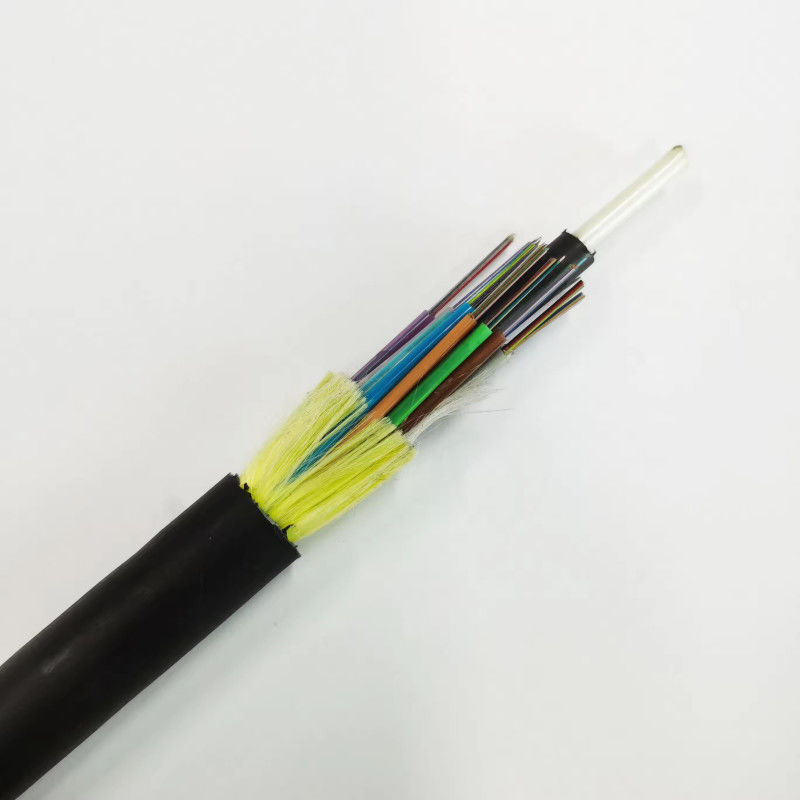

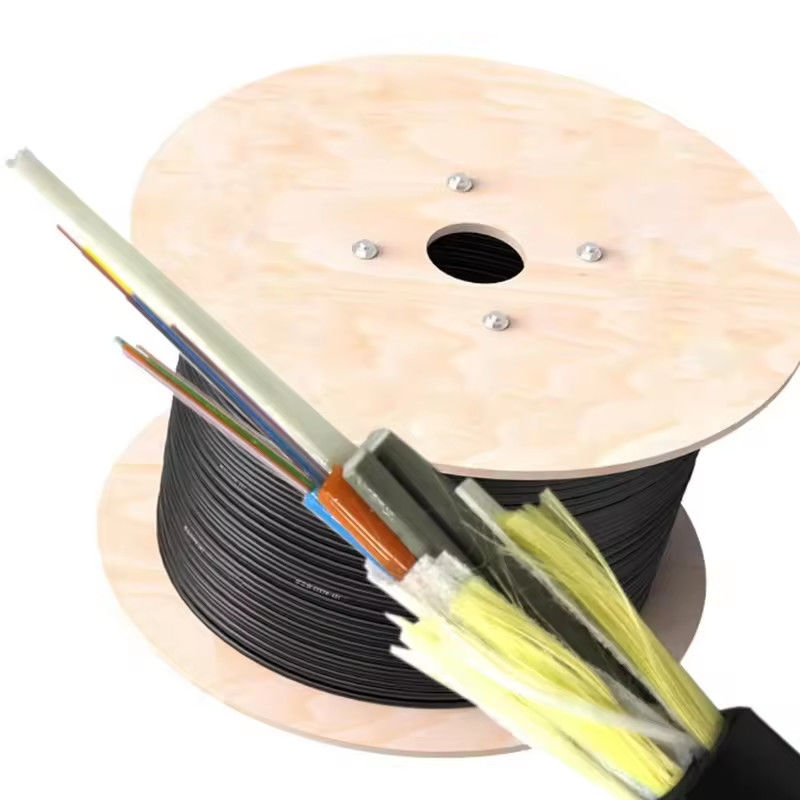

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 0

Feature:

(1) It can be used as the leading in and leading out optical cable of OPGW system relay
station. Based on its security attribute, it can solve the problem of power isolation when leading in and leading out the relay station.

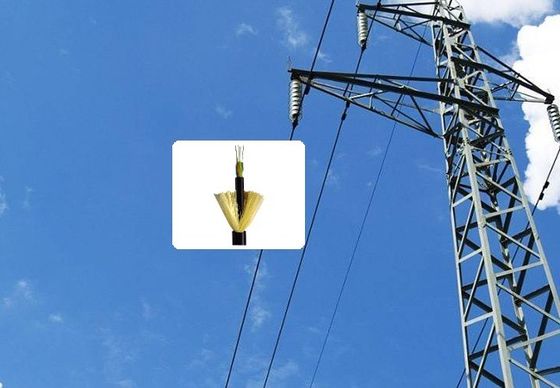

(2) It is used as the transmission cable of optical fiber communication system in high voltage (110kV-220kV) power network. Especially in many places, it is very convenient to use when rebuilding the old communication lines.

(3) It is used in fiber communication system of 6kV ~ 35kV ~ 180kv distribution network.

Applications:

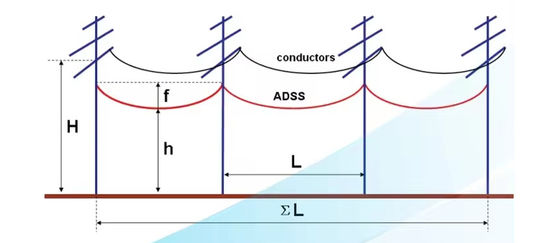

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 2

Specification:

Packing and delivry

Delivery For large orders: by sea (LCL or FCL) For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed; Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 4

Free printing

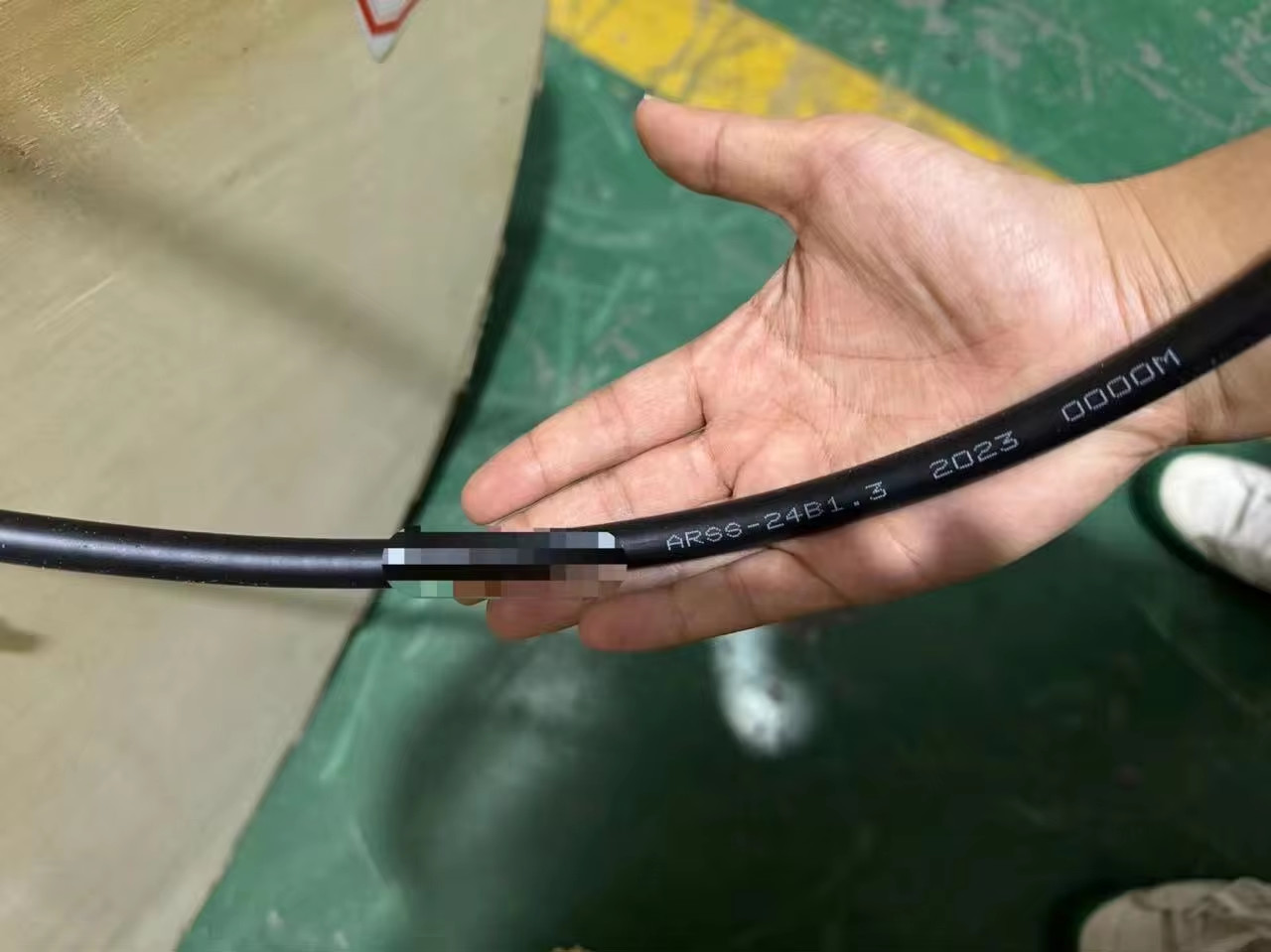

We provide free cable printing service, you can print the information you need on the cable jacket. For example, company name, product features.

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 5

Company Profile:

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province , xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 7

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 9

Our advantage:

1. Good reply: Your inquiry related to our products or price will be replied within 24 hours.

2. OEM&ODM: We can help you to design or put your logo and company name into products.

3. Remote Technical support&Full Technical Document

4. Warranty: 3 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

5. English software, English Indicator

6. Professional, Very competitive price

7. Large Stock, Fast Delivery

Certification:

Power Optical Fiber Cable ADSS 144 Core Outdoor Fiber Cable G657A G652D 10

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at WhatsAapp +86 19120308386 to get free sample.
