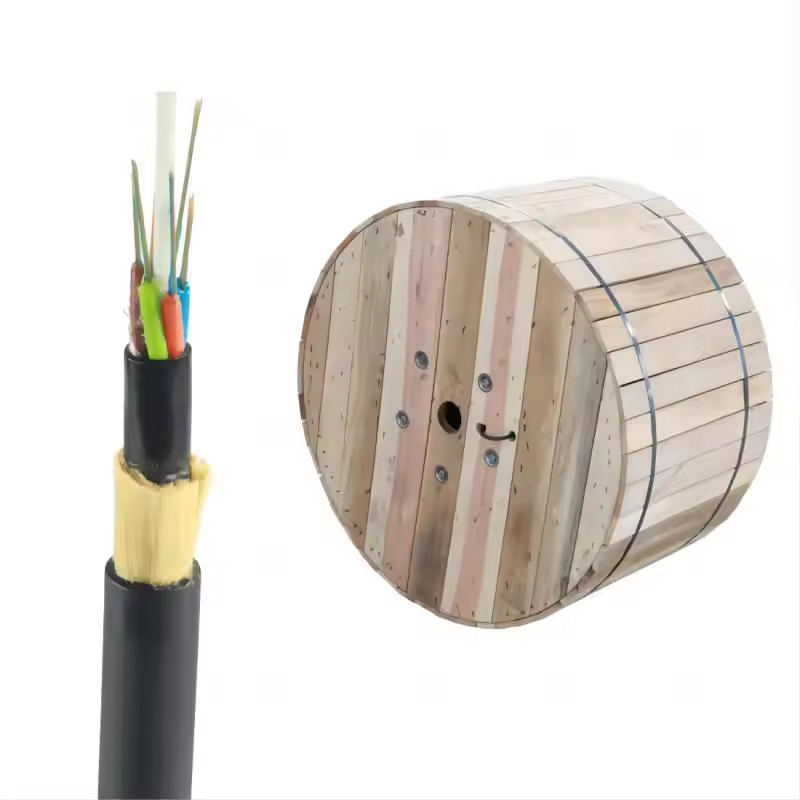

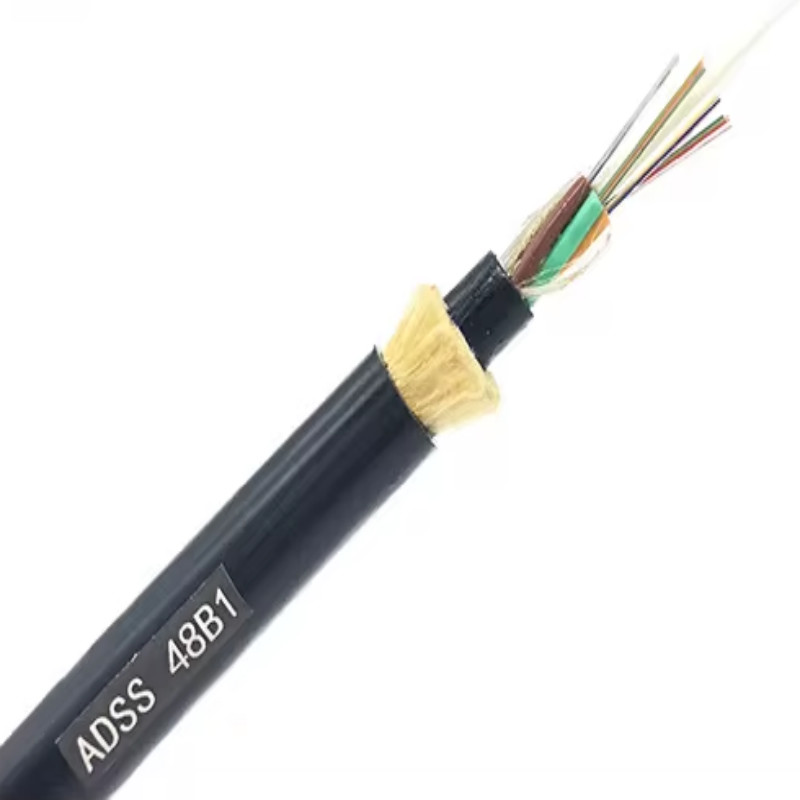

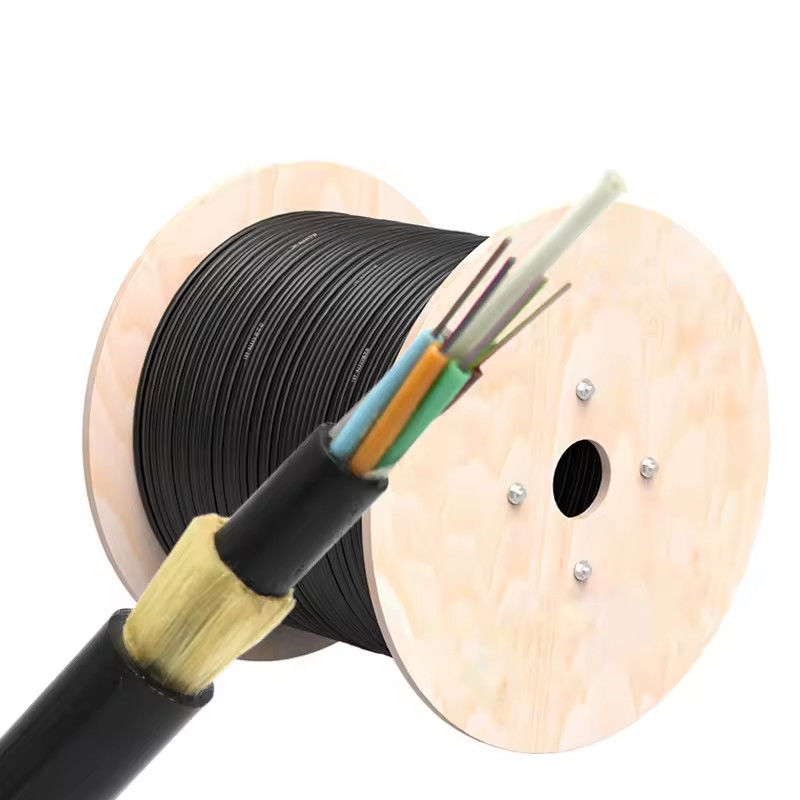

Outdoor Aerial Self Supporting Fiber ADSS Cable 24 Core 48core OHDPE Jacket 100-200m Span SM MM Fiber Optical Cable

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network. Headway manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred..

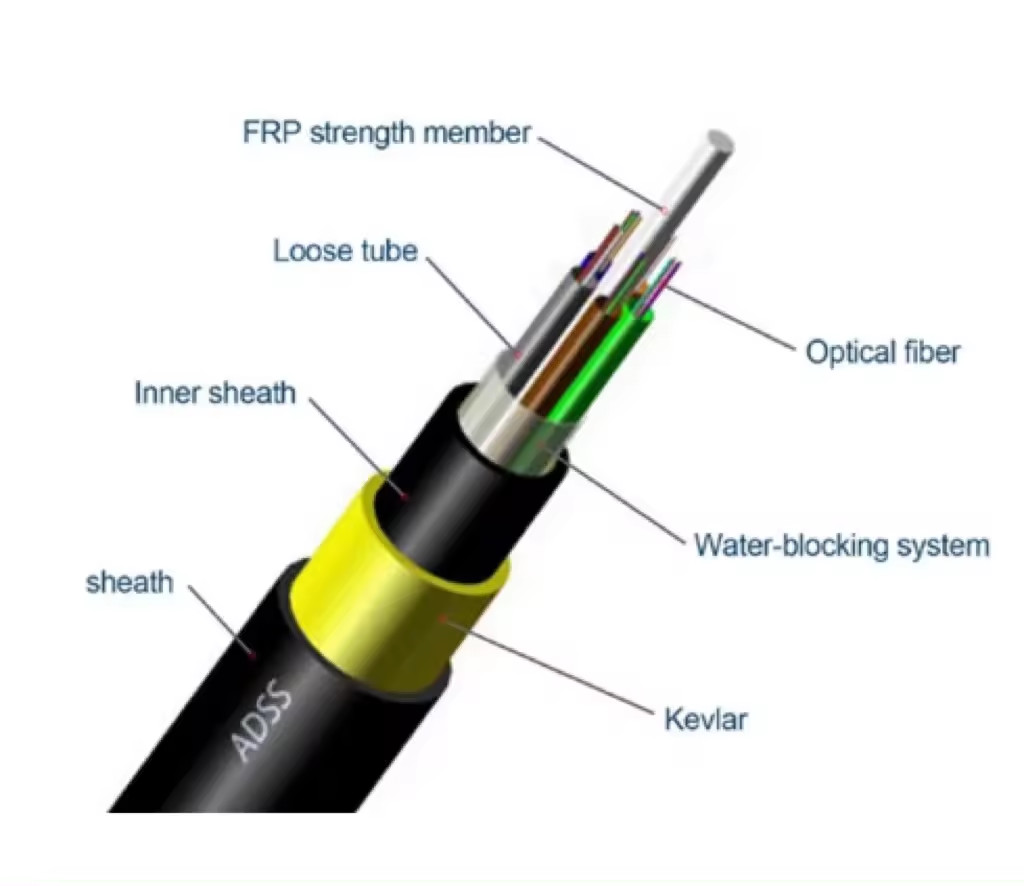

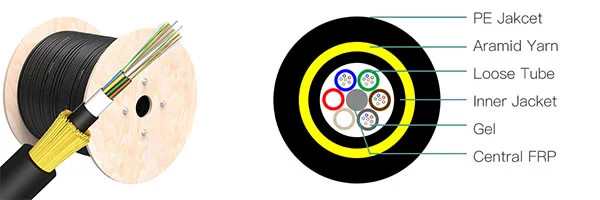

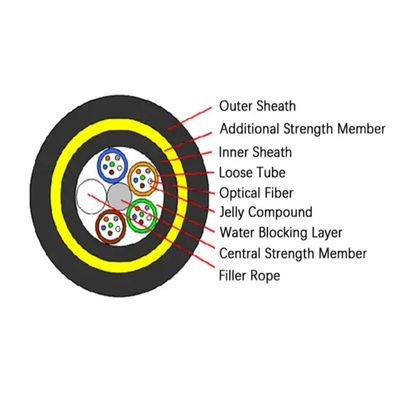

1. PE outer jacket -double jackets
2. FRP central members
3. RIP CORD
4. FIBER JELLY
5. Loose tube
6. Fibers 7. Aramid yarns

Characteristics:

• All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.

• Large number of fiber cores, light weight, can be laying with the power line, saving resources.

• Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.

• Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

• Double jacket, PE/AT Oute sheath.

• Large span, the maximum span exceeds 1000 meters.

• Life expectancy greater than 30 years.

Application:

* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.

Specification:

WHY CHOOSE US:

Certification:

FAQ:

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
