OEM FTTH 62.5/125um Fiber SC APC Pigtail
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 50PCS | Packaging Details : | 100PCS In One Export Cartoon box |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | Western Union, T/T, L/C,Alipay |
| Supply Ability : | 5000pcs per day |
| Place of Origin: | Guangzhou, China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | SM-SX Patch Cord |
|
Detail Information |
|||
| Material: | PVC/LSZH | Color: | Yellow |
|---|---|---|---|
| Item: | Optical Fiber Patch Cord | Repeatability: | ≤ 0.2 DB |
| Fiber Count: | Simplex | Fiber Type: | SM Or MM |
| Quality Control: | 100% Test Before Shipping | Connector Type: | SC/APC-SC/UPC |
| Length: | 1m 2m 3m Or Customized | Product Name: | Fiber Optic Patch Cord |
| High Light: | 1m 2m 3m Patch Cord,SC/APC a SC/UPC Patch Cord |
||
Product Description

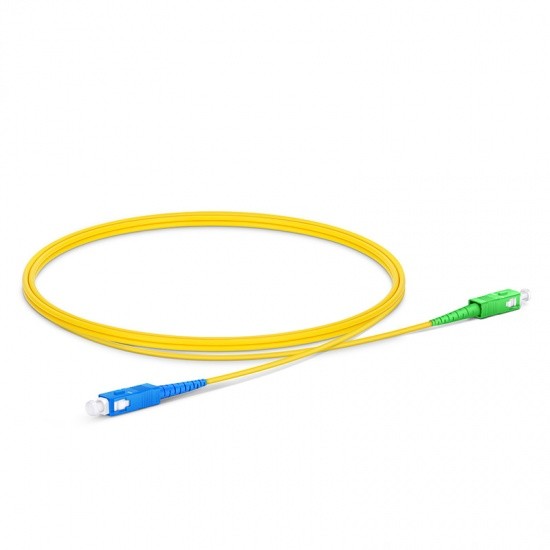

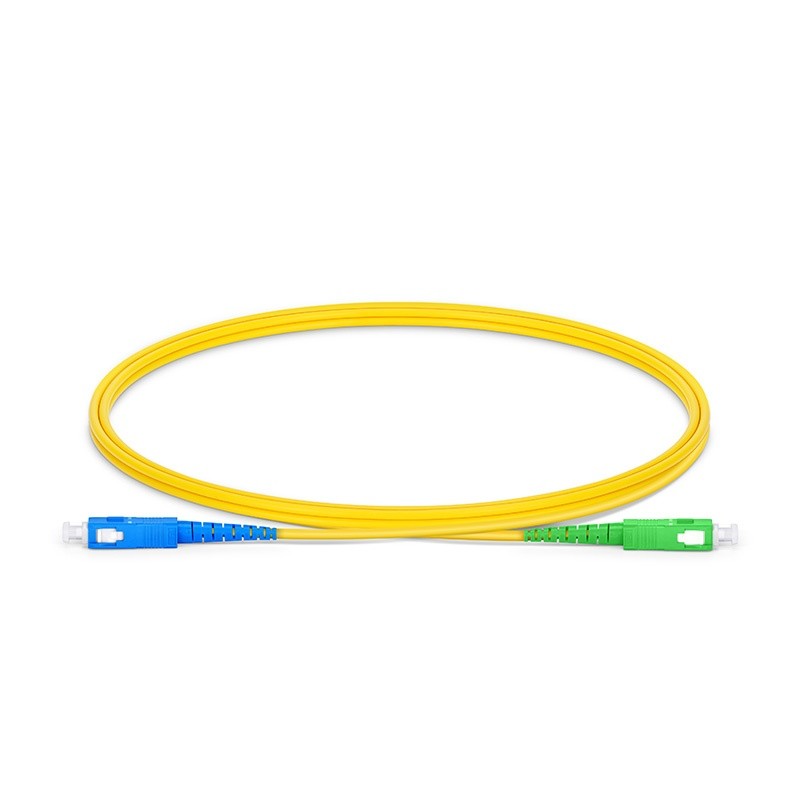

SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord
Product Description
9/125 Micron Simplex 900 Micron Buffered Fiber Patch Cord, Pass all TIA/EIA-568-B.3 performance requirements, 100 percent factory
inspected end face geometry in compliance with Telcordia GR-326-CORE, Issue 3, UPC polished, factory terminated and 100
percenttested for insertion loss and return loss, insertion loss and return loss data recorded for every single-mode patch cord,
Lifetime traceability of test data to a Quality Control number on each patch cord, highest quality fiber optic cable with
tight-buffered coatiing on each optical fiber.
Connector Type
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter |
PC |
UPC |
APC |
Multi-mode |
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
|
Exchange |
≤0.2dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Servicelife |
>1000times |
|||
|
Tensile strength |
>10kg |
|||
|
Temperature range |
-40°C to +85°C |
|||
Technical Data
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,MPO,SC/APC, FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125(Multi mode) OM2&OM1 50/125,10G(Multi mode)OM3 |
|
Cable |
Simplex,Duplex outer diameter:3.0mm,20mm,0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC(8°&6°) |
|
Insertion Loss |
≤0.1dB (For Single mode Master) ≤0.25dB (For Single mode Standard) ≤0.25dB (ForMultimode) Tested by JDSRM3750 |
|
Return Loss (Single mode) |
UPC≥50dB SPC≥55dB APC≥60dB (typ.65dB) Tested by JDSRM3750 |
|
Repeat ability |
≤0.1dB |
|
Operating temperature |
-400 C° to 850 C° |
|
Geometry Requirement (Single mode) |
Ferrule Endface Radius 7mm≤R≤12mm (For APC) 10mm≤R≤25mm (For Standard) Apex Offset≤30μm (For Master) Apex Offset≤50μm (For Standard) Under cut-50nm SU≤50nm Tested by DORCZX-1 |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
Welcome to inquiry us,Whatsapp: +86 18122384553
