Jiqian Factory ADSS Self-Supporting Optic Fiber Cable 12 24 48 Core Span 120m Fiber Optic Cables G652D ADSS 567 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Plywooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 9000km per month |
| Place of Origin: | China | Brand Name: | Jiqian/OEM/ODM |
|---|---|---|---|
| Certification: | ISO 9001/CE/ROHS/FCC | Model Number: | ADSS-48B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Number Of Conductor: | ≥ 10 |
|---|---|---|---|
| Cettification: | ISO 9001/CE/ROHS/FCC | Manufacturer: | Yes |
| Application: | Overhead | Outer Sheath: | PE/Anti-Tracking |
| Number Of Fiber: | 4-576 | Span: | 50-1000m |
| Fiber Brand: | Fiberhome/YOFC/Corning | ||
| High Light: | 400m ADSS Fiber Optic Cable,288 Core ADSS Fiber Optic Cable,Double Sheath ADSS Fiber Optic Cable |
||
Product Description

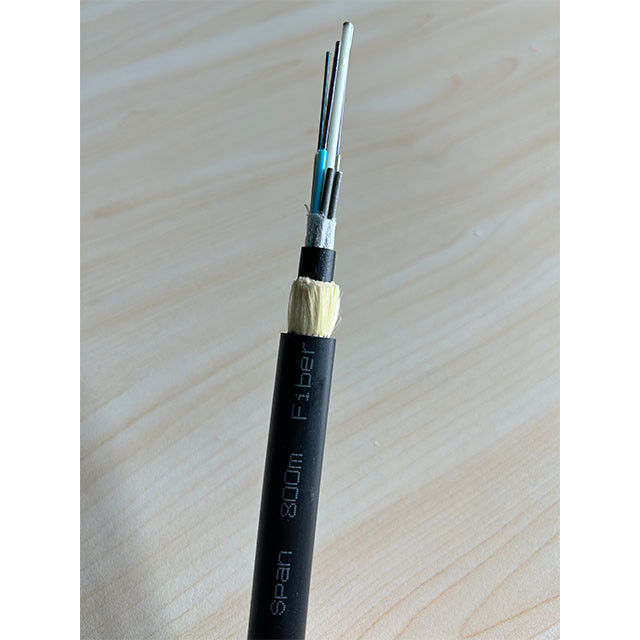

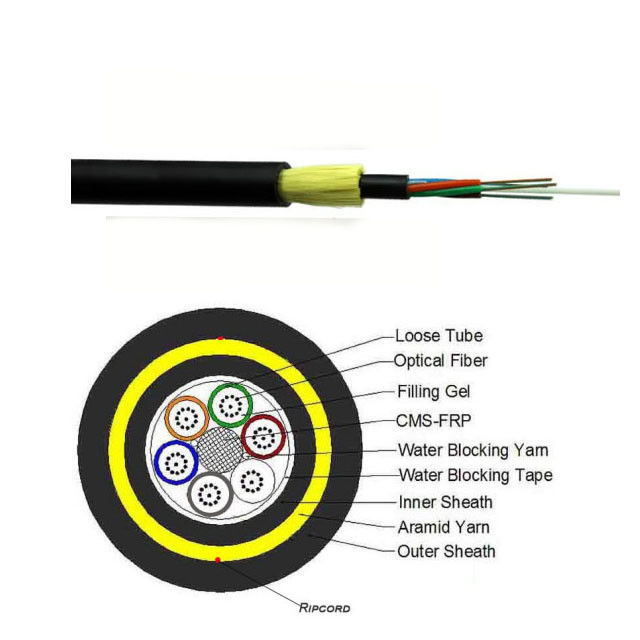

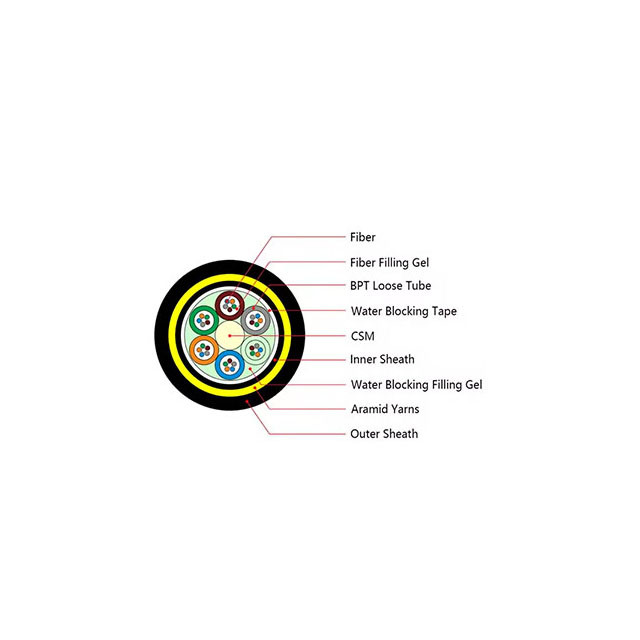

Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Features:
1. Double sheath(PE/Anti-tracking)
2.800m span
3.Single mode G652D
Advantage:
1.All-dielectric structure, no need for metal support, self-supporting, easy to use
2.Lightweight design, reducing the burden on overhead lines and towers, reducing installation costs
3.It has good temperature adaptability and can work normally in high and low temperature environments.
Fiber Optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
All of our fiber cables have to be tested before sending out
from our factory
Fiber optic cable with 30 years life expectancy
Company Profile:
Exhibition:
Certification:
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
