Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead

Minimum Order Quantity : 1km Packaging Details : Plywooden drum
Delivery Time : 5-7days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Place of Origin: China Brand Name: Jiqian/OEM/ODM
Certification: ISO 9001/CE/ROHS/FCC Model Number: ADSS-48B1.3

Detail Information

Place Of Origin: Guangzhou,China Number Of Conductor: ≥ 10
Cettification: ISO 9001/CE/ROHS/FCC Manufacturer: Yes
Application: Overhead Outer Sheath: PE/Anti-Tracking
Number Of Fiber: 4-288 Span: 50-1000m
Fiber Brand: Fiberhome/YOFC/Corning
Highlight:

48 Core ADSS Fiber Optic Cable

,

24 Core ADSS Fiber Optic Cable

,

Self-Supporting ADSS Fiber Optic Cable

Product Description

Jiqian ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of building a fiber optic network. designed for Overhead self-supporting applications at short, medium and long span 50-1000m



Features:



Can be installed without shutting offthe power.
Excellent AT sheath performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Span is 50-1000m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.



Application:

Overhead

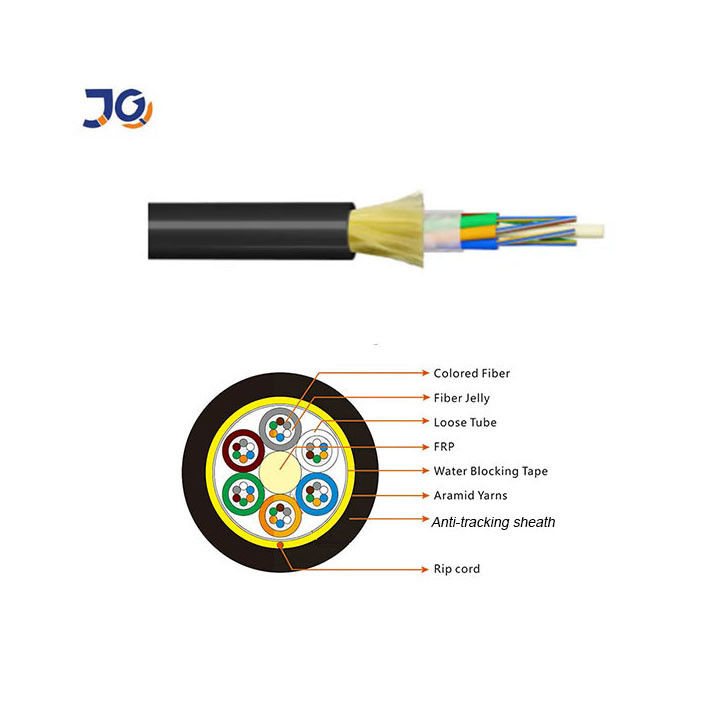

Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 0

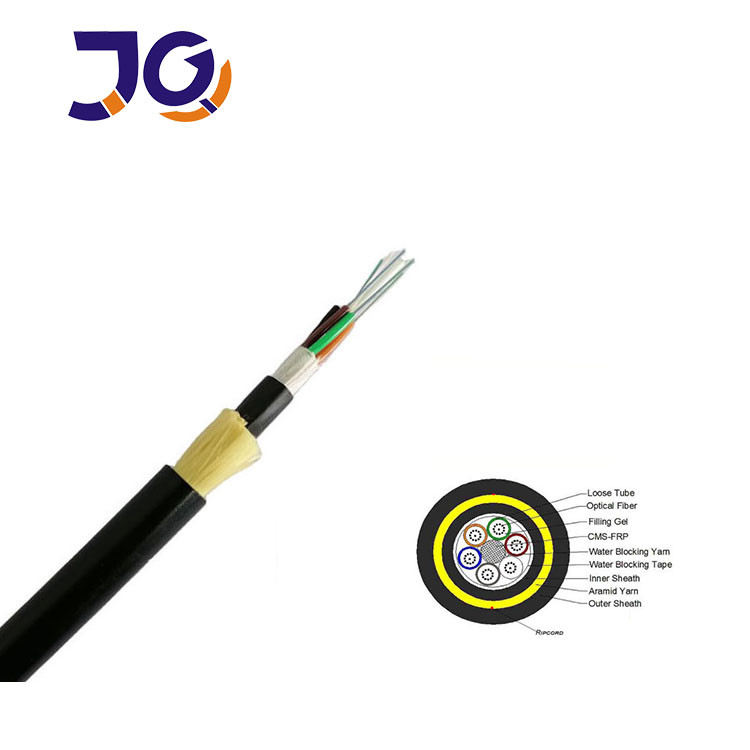

Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 1


Fiber Optic G652D:



Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % 1.0
Core/cladding concentricity error mm 0.5
Coating diameter mm 245±5
Coating non-Circularity % 6.0
Coating/cladding concentricity error mm 12.0
Cable cut-off wavelength nm 1260
Attenuation Coefficient 1310nm dB/km 0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100



All of our fiber cables have to be tested before sending out

from our factory

Fiber optic cable with 30 years life expectancy

GOOD after-sales service

Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 2



Company Profile:
Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 3

Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 4

Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 5



Certification:



Self-Supporting ADSS Fiber Optic Cable 24 48 Core Fiber Cable For Overhead 6
FAQ:
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will takes about 5-7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



For more information please contact me
