Product Description
SC UPC SC APC FTTH drop fiber patch cord SM G657A1 G657a2 anti bending 10M 30M 50M 100M 200m LSZH

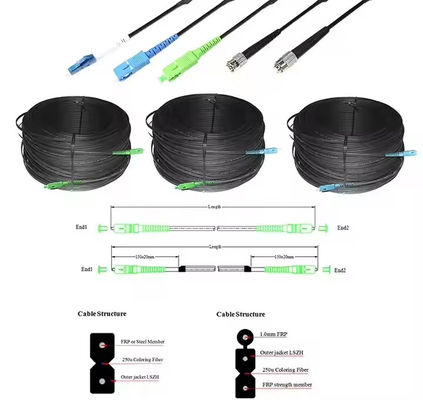

Description of fiber drop cable
2.0x5.0mm/ 2.0x3.0mm FTTH drop cable, 2 pcs FRP, blue colored fiber inside, LSZH jacket, assembled with SC / LC / FC / ST connectors.
Features
Low loss, high perfermance
FTTH Drop cable diameters: Φ2.0*5.0mm
Strength: GFRP, QFRP, KFRP, steel wire
Fiber Mode: G652D, G.657A1, G657A2, G657B3
Compliant to IEC standard Certification:ISO9001:2008, ROHS,CE
All products undergo 100% strict quality inspection before shipment.
Application
FTTH network for indoor and outdoor Local Area Network and Building Cabling Network
Interconnect between instruments, terminal box and communication

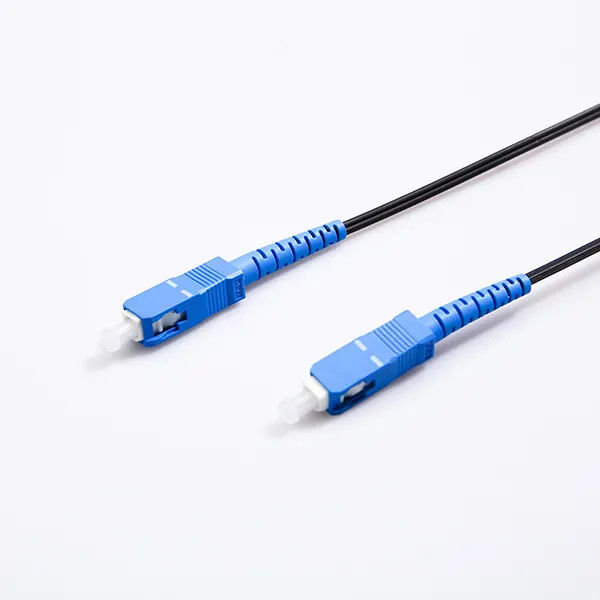

SC/UPC-SC/UPC

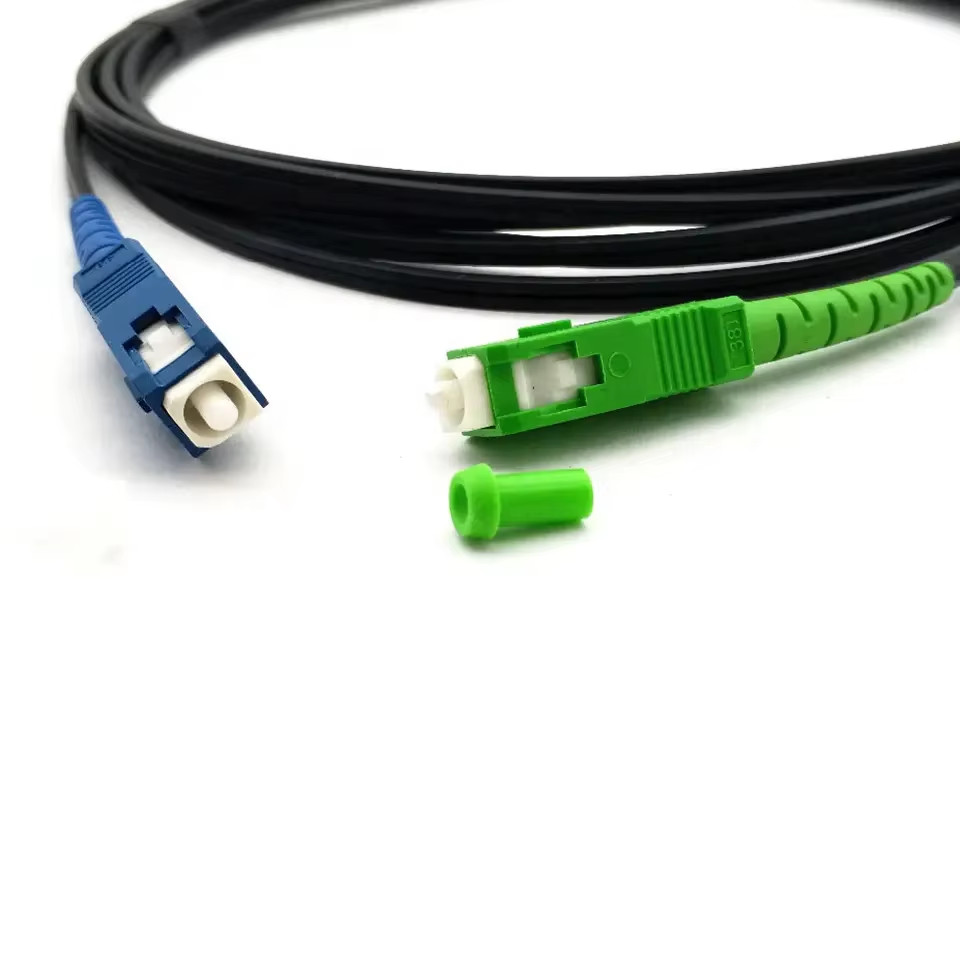

SC/UPC-SC/APC
Optical Characteristics
| Items |
Unit |
Specification |
|
G657a2
|
| Mode Field Diameter |
1310nm |
um |
8.6±0.4 |
| 1550nm |
um |
9.5±0.5 |
| Cladding Diameter |
um |
125±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
| 1550nm |
dBkm |
≤0.21 |
Cable Parameters
| Items |
Specifications |
| Fiber Count |
2~12 |
| Colored Coating Fiber |
Dimension |
250μm+15μm |
| Color |
blue /orange |
| Strength Member |
Diameter |
0.45mm/0.5mm |
| Material |
Steel/FRP |
| Outer Jacket |
Dimension |
2.0*3.0mm/2.0*5.0mm/2.7*6.5mm |
| Material |
LSZH ( Low smoke zero halogen) |
| Color |
Black/white |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~4 |
2.0*3.0 |
9.5 |
300/600 |
1000/2200 |
10D/20D |
| 6-12 |
2.7*6.5 |
11 |
300/600 |
1000/2200 |
10D/20D |
details pictures showes

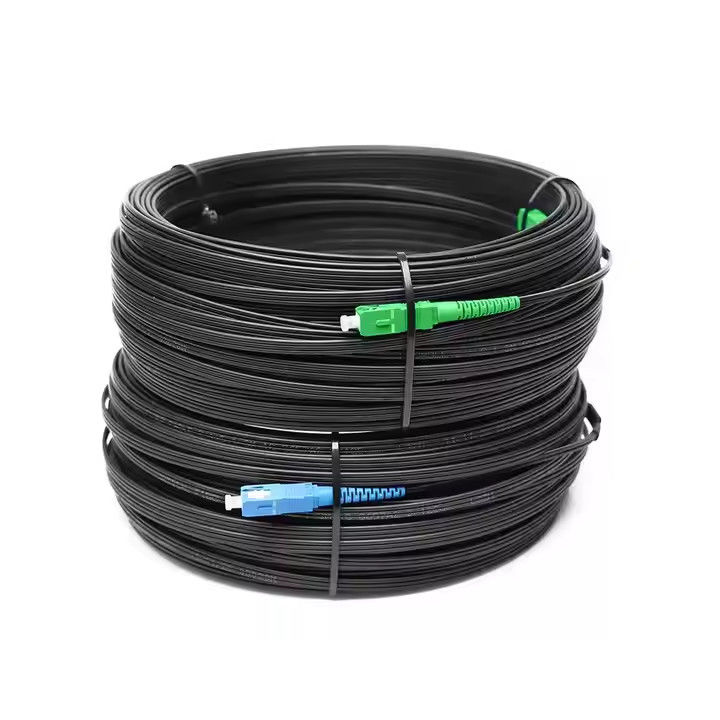

indoor drop cable
outdoor drop cable
loose tube outdoor drop cable

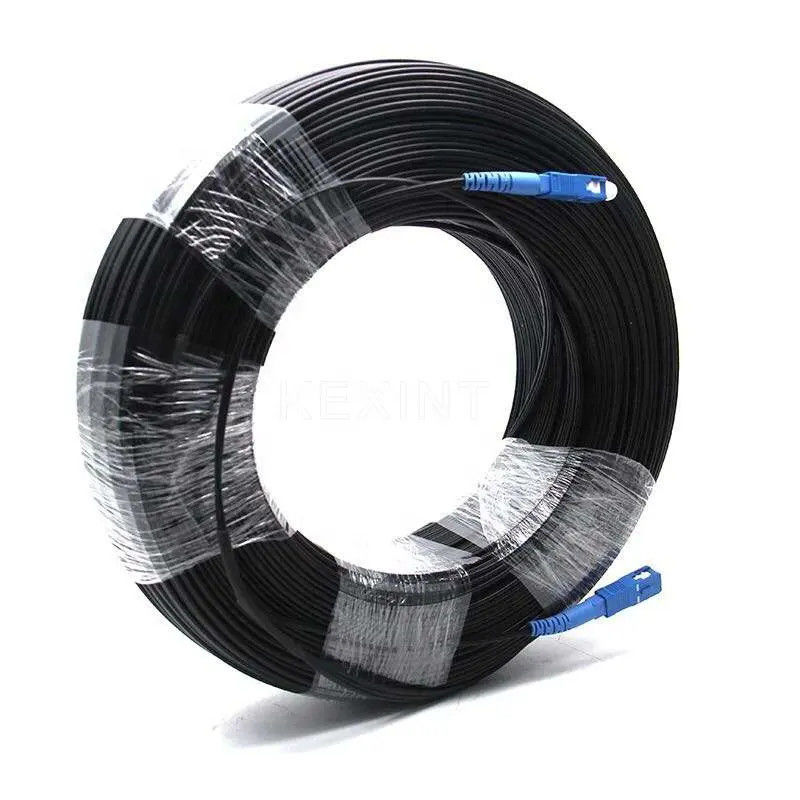

drop cable package
package in the box
package in the pallets
For more details, pls contact Philip, Tel: +8613422342788, What App : +8613422342788,
Email : philip@gzjqofc.com
FAQ
1. Are you trading company or manufacturer?

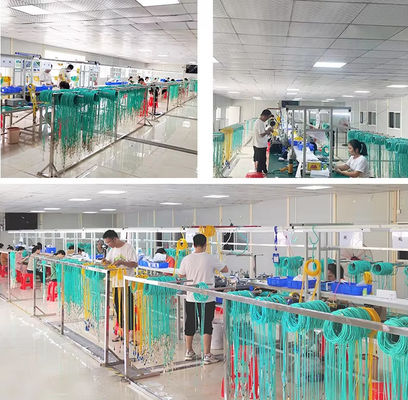

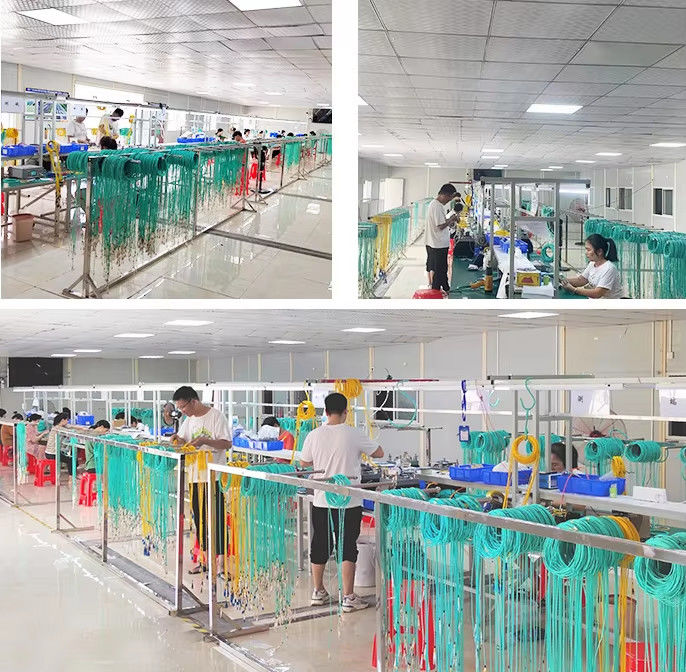

We are the manufacturer with 12 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2. About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4. What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
