MGXTSV Fire Retardant Anti-rodent LSZH Armored Mining Fibre Optic Cable

Product Description

anti-rodent flame retardant mining fiber cable MGXTSV

Product Description



▶



1.  Mining optical cable MGXTSV is a special application of optical fibre cable in the field of communication, that is, it is a communication optical cable specialised in the coal mining industry. It is an optical cable in coal mines, gold mines, iron ore and other mining occasions.

2.  Mining optical cable MGXTSV not only inherits all the properties of optical fibre cables, but also adds many special properties due to the special requirements of the coal mining industry. The main additional properties are flame retardant characteristics and rat-proof characteristics (special environment of the mine), because coal mines, gold mines, iron ore and other mines are accident-prone areas, in order to ensure In the event of an external occurrence, it is still to ensure smooth communication and reduce losses. The National Security Production Supervision Administration (State Coal Mine Safety Supervision Administration) requires the safety certification of all products used in coal mines, including communication optical cables, that is: safety mark certification of mining products.

3.  Because there are no corresponding standards for others such as gold mines, iron ores, etc., because the comprehensive performance of coal mine optical cables is the standard for mining, and it is also an implementation standard with high requirements in the industry, other mines are generally designed and produced according to the optical cables for coal mines.







Features



▶

1. Features of MGTSV mining optical sables

2. It has good mechanical and temperature properties.

3. Loose casing material itself has goad water resistance and high strength.

4. The tube is filled with special oll paste, which provides key protection to the optical fibre.

5. Good pressure reustance

6. Double-eided plastic-coated steal strip (PSP) imprtines the maisture-reaintant ability of aptical cables and ham the function of anti-mouse

7. Biue flame-retardant PVC is need for mecondary sheathing, so that the oplical cable has a good flame netardant affect.



 Applications:



▶

  1. Using microtubule resources, especially for the backbone network, access network and fiber to the home.

  2. Cabling costs are low and suitable for upgrading the old city and building network.

  3.  Standards ·MGXTSV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.







Optical Characteristics

Items		Unit	Specification
			G652D
Mode Field Diameter	1310nm	um	9.2±0.4
	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
	1550nm	dBkm	≤0.22

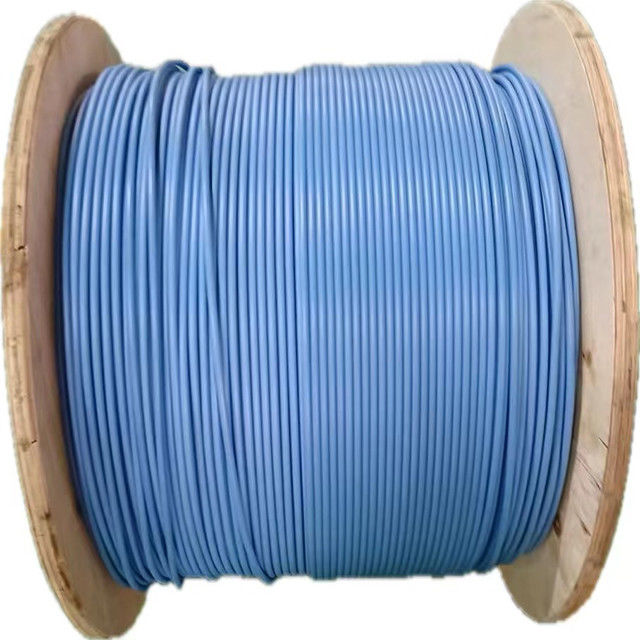

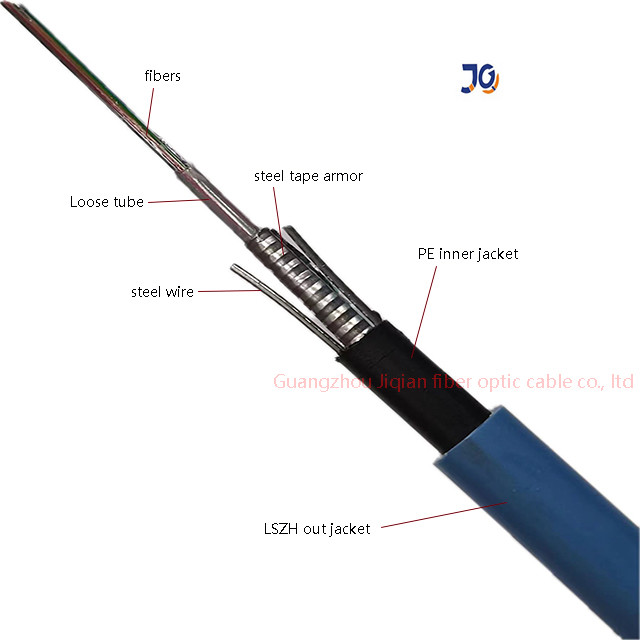

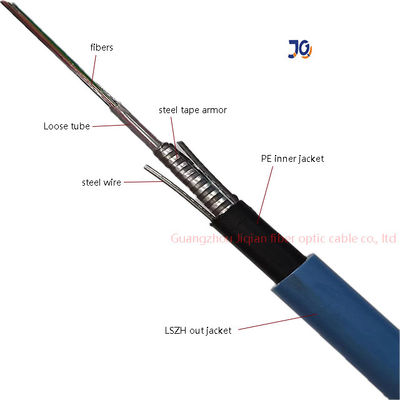

Detail product pictures

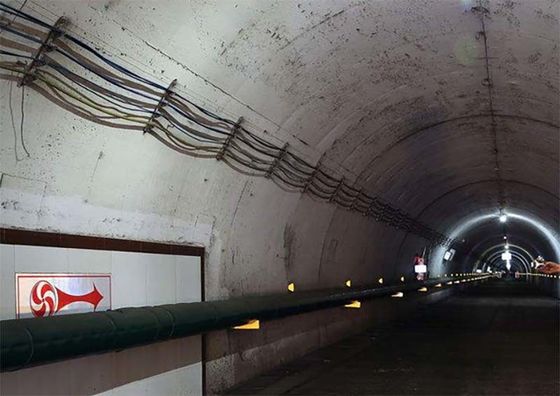

                                                           Mining application

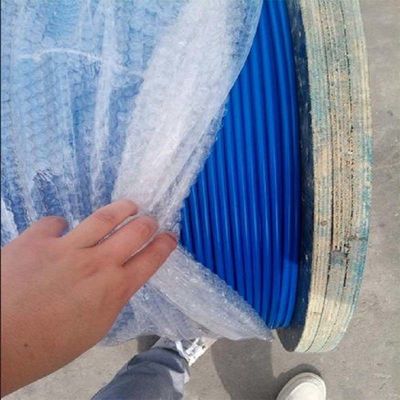

   factory shows















FAQ



Q1:  How the warranty for products ?

A: 10 years,and maintance for whole life



Q2:  Can we make OEM for products?

A: Yes, we can print your logo or label on the products or on the box.



Q3:  Can you provide free samples ?

A:  you can get free samples from my company.



Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
