Home /Products/ADSS Fiber Optic Cable/OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D

OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D

1KM
MOQ
OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

6 CORE ADSS G652D

,

96 CORE ADSS G652D

,

24 CORE ADSS G652D
Basic Infomation
Place of Origin: CHINA
Brand Name: JQ
Certification: ISO9001/CE/RoHS
Model Number: ADSS
Payment & Shipping Terms

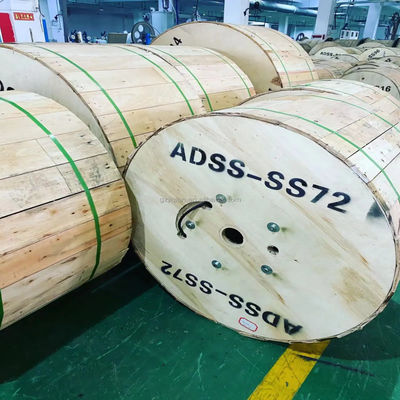

Packaging Details: Wooden package
Delivery Time: 5 days
Product Description

with its unique structure, good insulation, high temperature resistance and high tensile strength, provides a fast and economical transmission channel for power communication system. Generally speaking,ADSS cable is cheaper than OPGW (optical fiber composite ground ) in many applications, and it is easier to install. It isadvisable to set up ADSS optical cable by using power lines or nearby towers, and even necessary in some places. The main uses of ADSS optical cable are as follows:

OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D 0OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D 1

Advantage:


1.The lifespan is over 30 years
2.Large span with the largest span of over 1000m
3.Reliable performance of moistureproof and waterproof
4.Central strength member FRP gives high tensile strength
5.PE or AT sheath ensures safety of cable in high voltage environment
6.All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.


Applications

---Outdoor aerial applications
---Low voltage transmission system(≤12 kV)
---Railway & Telecommunication pole route
---Subscriber & Local Area Network
---Voice, data, video & imaging system
OUTDOOR AERIAL FIBER OPTIC CABLE 6 /12/24/36/48/96/144 CORE ADSS G652D 2
Specification
Specifications and technical parameters
Span (m)
100~300
300~500
500~650
650~800
800~900
900~1000
OD (mm)
14.0
15.0
15.5
16.0
16.5
17.2
Weight(kg/km)
165
185
200
210
225
235
Tensile strength (N)
20500
46500
61500
75500
92000
11300
Maximum tension (N)
6800
15500
20500
25100
30500
37600
Minimum static bending radius (nm)
10D
Minimum dynamic bending radius (nm)
30D
Maximum field voltage (kV)
25
Standard initial sag (%)
1~3
Operating temperature (℃)
-40℃ ~ +70℃

Tag:

24 Core Adss Aerial Fiber Optic Cable

200m Span Adss Aerial Fiber Optic Cable

G657A1 adss optical cable
