MPO ODC FTTH Fiber Optic SC UPC Connector Butterfly Blue SC APC Connector

Product Description

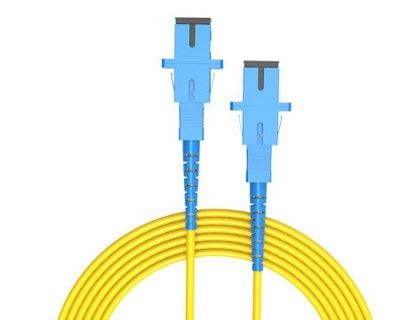

SC/APC a SC/UPC 1m 2m 3m Fiber Patch Cord





Product Description



9/125 Micron Simplex 900 Micron Buffered Fiber Patch Cord, Pass all TIA/EIA-568-B.3 performance requirements, 100 percent factory
inspected end face geometry in compliance with Telcordia GR-326-CORE, Issue 3, UPC polished, factory terminated and 100
percenttested for insertion loss and return loss, insertion loss and return loss data recorded for every single-mode patch cord,
Lifetime traceability of test data to a Quality Control number on each patch cord, highest quality fiber optic cable with
tight-buffered coatiing on each optical fiber.



Fast Connector























Feature



Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability









Optical Characteristics





Singemode(UPC)	Singemode(APC)	Multimode
Insertion loss	≤ 0.3db	≤ 0.3db	≤ 0.25db
Return loss	≥45db	≥50db	≥30db
Durability	≤ 0.3db typical change, 1000 times mating
Operating Temperature	-45 to +85 degree
Ferrule Hole Sizes	125.0+1/-0um, Concertricity:≤1.0um	125.0+1/-0um, Concertricity:≤0.5um	127.0um, Concertricity: ≤3.0um
	125.5+1/-0um, Concertricity:≤1.0um	125.5+1/-0um, Concertricity:≤0.5um
	126.0+1/-0um, Concertricity:≤1.0um	126.0+1/-0um, Concertricity:≤0.5um





Technical Data

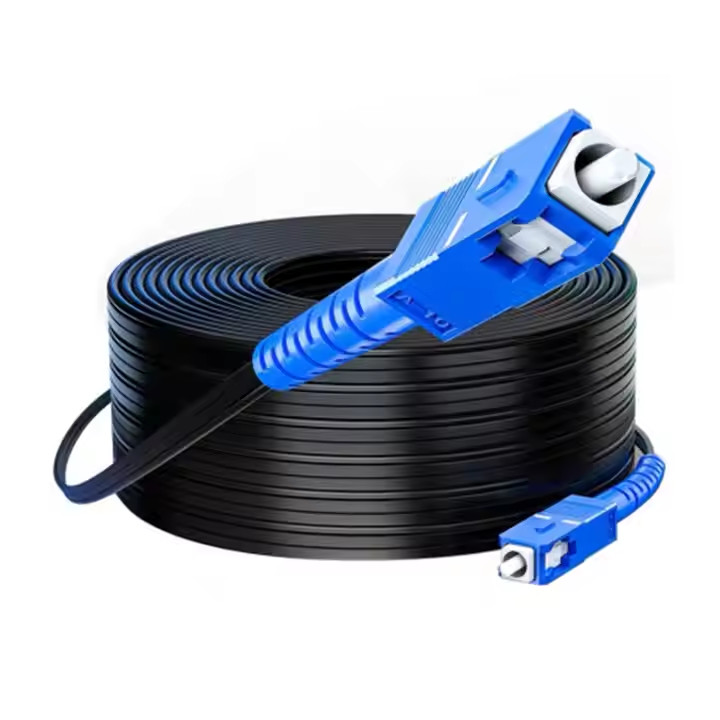

FTTH drop cable patch cord
item	Technical Parameters
Insertion loss	SM ≤ 0.2dB
Return loss	PC>45dB UPC>50dB APC ≥65dB
Connector plug	More than 1000 times
Temperature range	40°C~+80°C
Tensile strengtr	45Kg (Except Φ0.9SM fiber)
Insertion losss	<0.25dB (1310nm&1550nm)
Vibration test	< 0.1dB (5-50Hz,1.5SM amplitude)



Application



Communication rooms

FTTH (Fiber to The Home)

LAN  (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment



 Other Products



















Packing&Delivery

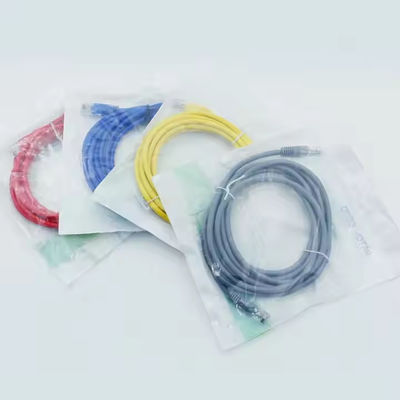

Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.
