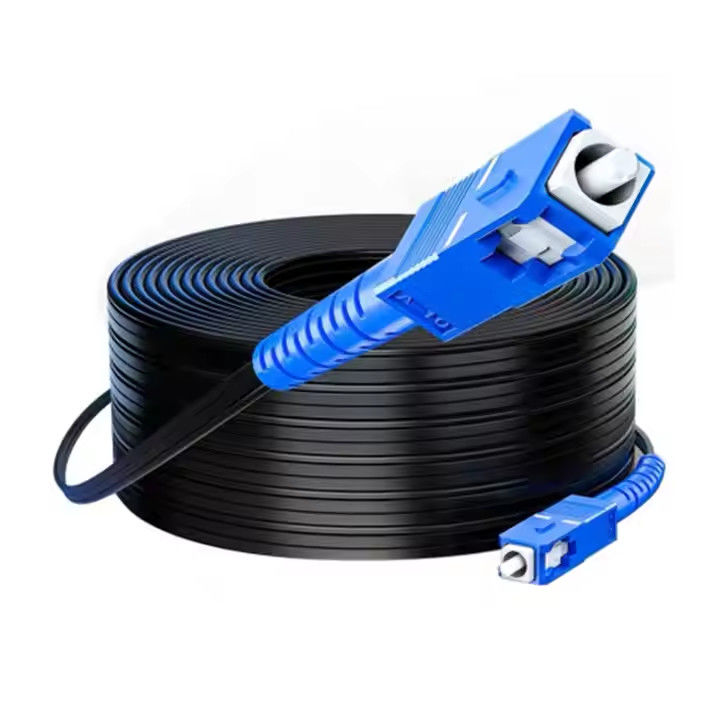

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price
Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price
Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price
Contact Now

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price

Minimum Order Quantity : 1km Packaging Details : Export Cartoon box
Delivery Time : 5-8 work days Payment Terms : Western Union, T/T, L/C,Alipay
Supply Ability : 1000pcs per day
Place of Origin: Guangzhou, China Brand Name: jiqian/Customize
Certification: ISO 9001 Model Number: SC-LC Patch Cord

Detail Information
Connector Type: SC-LC Or Hybrid Length: 1m 2m 3m Or Customized
Material: PVC/LSZH Color: Yellow
Item: Optical Fiber Patch Cord Repeatability: ≤ 0.2 DB
Fiber Count: Simplex Or Duplex Quality Control: 100% Test Before Shipping
Real Factory: Yes Test: 100% Test Before Shipping
Return Loss: ≥50dB Core: 2 Cores
Model Name: Fiber Optic Pigtail Water Proof Grade: IP 68
Returen Loss: UPC>55dB, APC>65dB Customized: Yes
Fiber Length: 10 Meter Cable Outer Diameter: 11.8mm
Connector Color: Green Jacket Color: Yellow
Application: FTTH , Connection , GPON Fiber Diameter: 9/125μm, 50/125μm, 62.5/125μm
Fiber Types: G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4 Manufacturer: Yes

Product Description

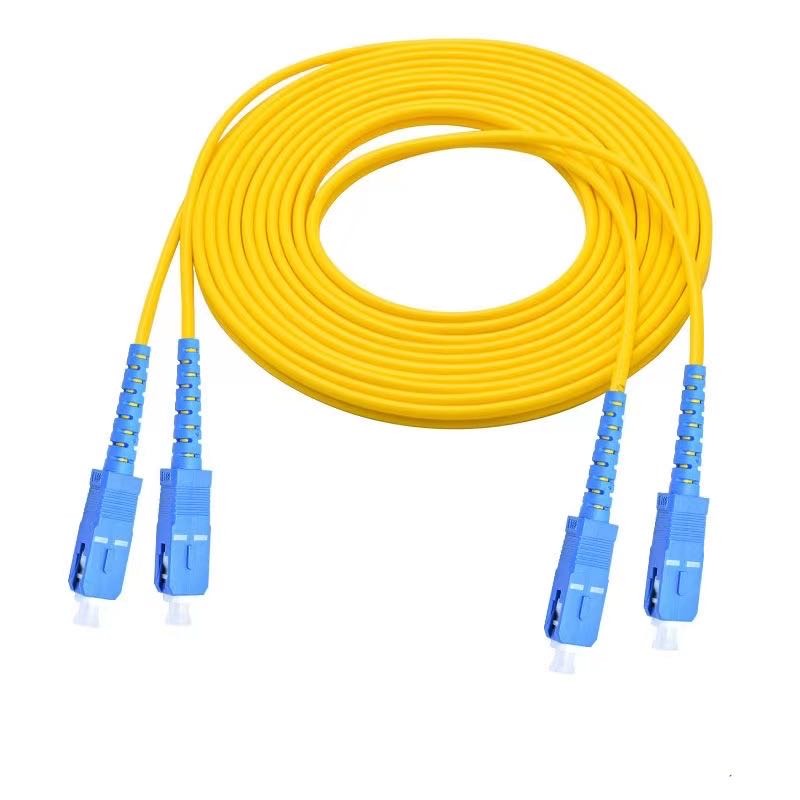

Simplex & Duplex SC-LC Patch Cord SM OS2 9/125um PVC/LSZH Fiber Optic Patch Cord





Product Description

The LC-SC Singlemode Duplex fiber optic patch cord is a cable with connectors at both ends, allowing for quick and easy connection to CATV, optical switches, or other telecom equipment. With a durable protective layer, it's commonly used to link optical transmitters, receivers, and terminal boxes, often referred to as "interconnect-style cabling." These patch cords are highly reliable, offering low insertion and return loss. Available in simplex or duplex configurations, they come with a variety of connector options including ST, SC, LC, and MTRJ, and can be customized with PC, UPC, or APC polish types to meet your specific needs.





Feature

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability





Optical Characteristics

Mode SM MM
Polish UPC APC APC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB(1000 times mating)
Tensile Strengh >10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB(+25+65 93 R.H.100 hours)







Technical Data

Type



Standard,Master



Style

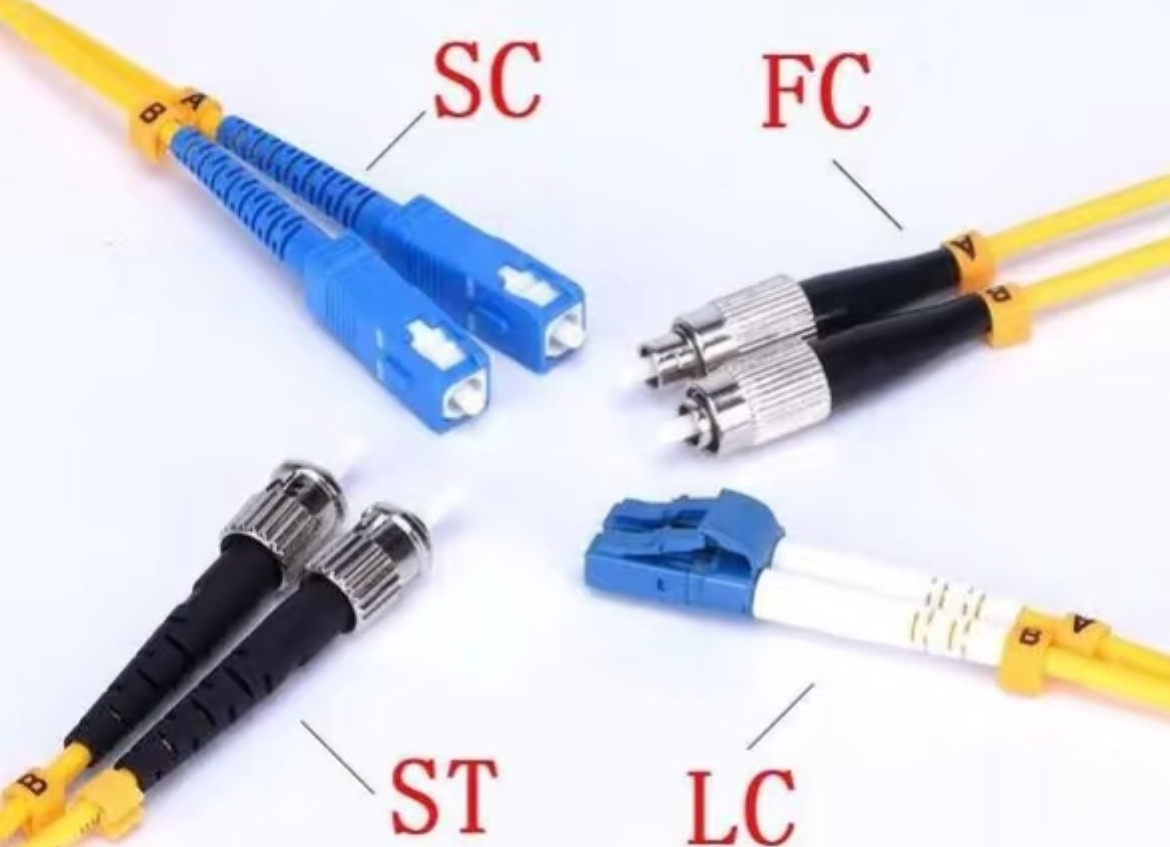

LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC



Fiber



Singlemode/Multimode

50/125,62.5/125 (Multimode) OM2&OM1

50/125,10G(Multimode)OM3



Cable



Simplex,Duplex

Φ3.0mm,Φ20mm,Φ0.9mm

PVC or LSZH



Polishing Manner



UPC,SPC,APC (8°&6°)



Insertion Loss



≤0.1dB(For Singlemode Master)

≤0.25dB(ForSinglemodeStandard)

≤0.25dB(ForMultimode)

Tested by JDSRM3750

ReturnLose (Singlemode)



UPC≥50dB

SPC≥55dB

APC≥60dB(typ.65dB)

Tested by JDSRM3750



Repeatability



±0.1dB



Operating temperature



-400C° to 850 C°



GeometryRequirement (Singlemode)



Ferrule Endface Radius

7mm≤R≤12mm(For APC)

10mm≤R≤25mm(For Standard)

Apex Offset≤30μm(For Master)

Apex Offset≤50μm(For Standard)

Under cut-50nmSU≤50nm

Tested by DORCZX-1



Application

Communication rooms

FTTH (Fiber to The Home)

LAN  (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment



Recommed Products

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price 0

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price 1

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price 2





Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price 3





Fiber Optic Patch Cord Single Multi Mode SC/LC/ST-UPC/APC LSZH Sheath Best Price 4





Factory Pictures







FAQ

  1. Are you a trading company or manufacturer?
    We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou city, and you're welcome to visit us!

  2. How is the quality?
    All fibers are thoroughly tested before shipment. After price confirmation, you can request free samples to check the quality.

  3. Can you accept small orders?
    Yes, we accept small orders and support new projects, as we understand that business often starts small.

  4. What is your delivery time?
    The usual delivery time is 3-7 working days, depending on the order quantity. Rest assured, we will process your order as soon as your payment is confirmed.
