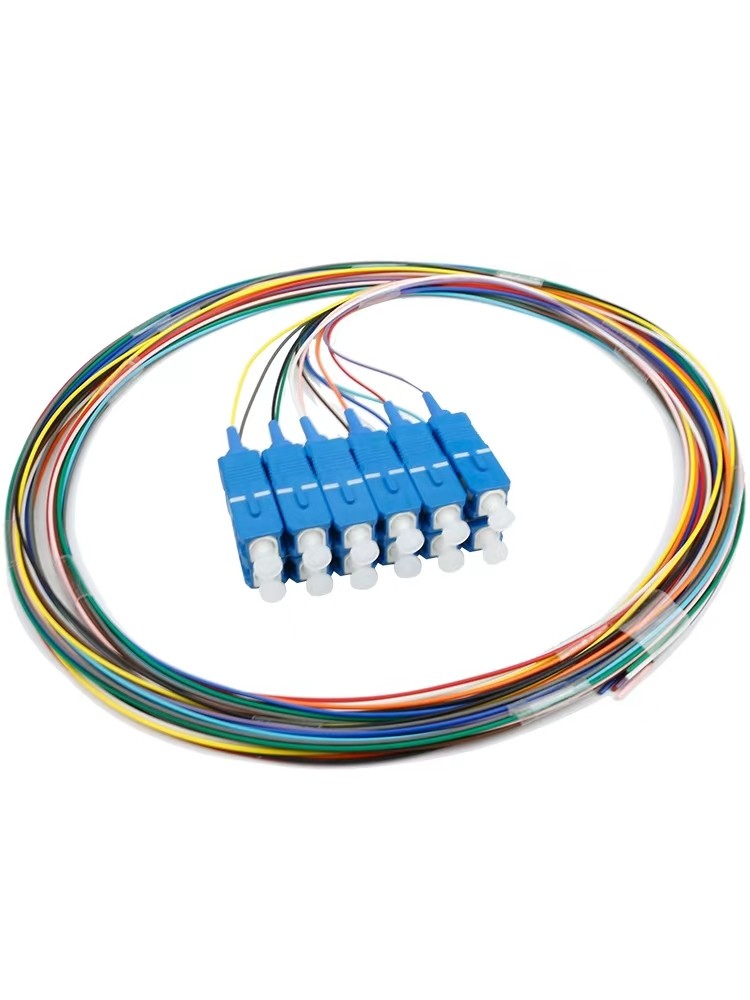

FTTH FTTB 12 Cores SC UPC 0.9mm Multimode Optical Fiber Pigtail
Product Description
Fiber optic pigtails are essential components in optical networks, featuring connectors at the ends of fiber optic cables. Our Fiber Optic Patch Cord series offers a wide range of lengths and connector options to meet your deployment needs. Available in 4, 6, 8, 12, 24, or 48 cores, with single-mode or multi-mode fiber choices. These pigtails are ideal for equipment jumper cords, cross-connects, and work area connections. Manufactured with riser-grade cables and factory-tested, they ensure performance that meets Telcordia standards.
Features
We offer a variety of connectors including SC, LC, FC, MU, ST, MT-RJ, and E2000, with polishing options such as PC, APC, UPC, and SPC. Available in single-mode (9/125) or multi-mode (50/125 or 62.5/125) fiber, with cable sizes Φ 0.9mm, Φ2.0mm, and Φ3.0mm.
Our products come in fiber bunch, ribbon fan-out, or pigtail configurations, with simplex and duplex connectors. The connectors available are FC, SC, ST, LC, and more. Cables are made from PVC or LSZH, with OM1, OM2, or OM3 options.
These cables are known for excellent exchangeability, durability, and can be customized to meet specific requirements.
Application
Fiber Optic telecommunications
Lan(Local Area network)
FTTH (Fiber to the home)
CATV & CCTV
High Speed transmission systems
Fiber optic sensing
Optical Characteristics
| Item |
SM(Single Mode) |
MM(Multimode) |
| Fiber Cable Type |
G652D/G655/G657A1/G657A2 |
OM1 |
oM2/OM3/OM4 |
| Fiber Diameter (um) |
9/125 |
62.5/125 |
50/125 |
| Cable oD (mm) |
0.9/1.6/1.8/2.0/2.4/3.0 |
| Endface Type |
PC |
UPC |
APC |
UPC |
UPC |
| Typical Insertion Loss (dB) |
<0.2 |
<0.15 |
<0.2 |
<0.1 |
<0.1 |
| Return Loss (dB) |
>45 |
>50 |
>60 |
/ |
| Insert-pull Test (dB) |
<0.2 |
<0.3 |
<0.15 |
| Interchangeability (dB) |
<0.1 |
<0.15 |
<0.1 |
| nti-tensile Force (N) |
>70 |
| remperature Range (c) |
-40r+80 |

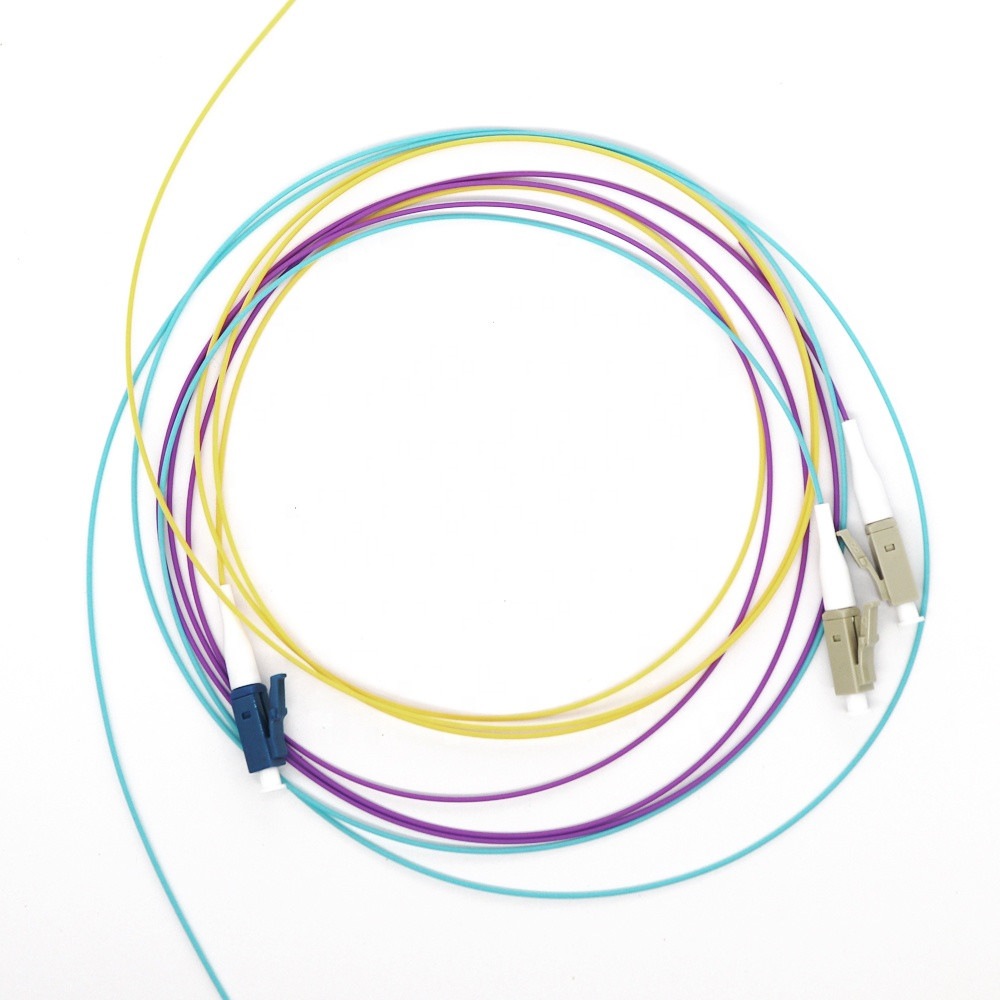

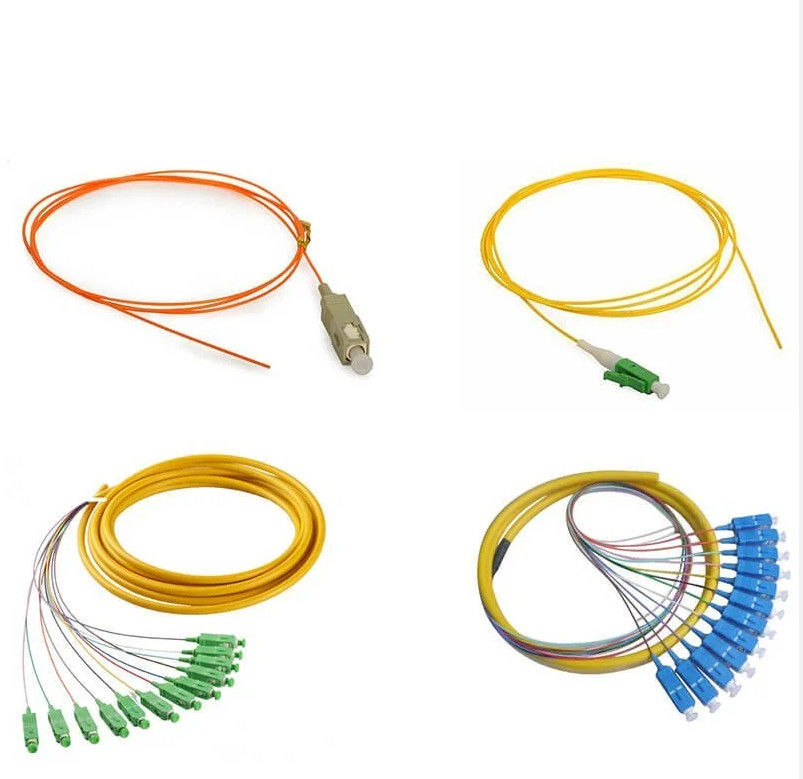

Detailed Image
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
