Simplex & Duplex SC-LC Patch Cord SM OS2 9/125um PVC/LSZH Fiber Optic Patch Cord
Product Description

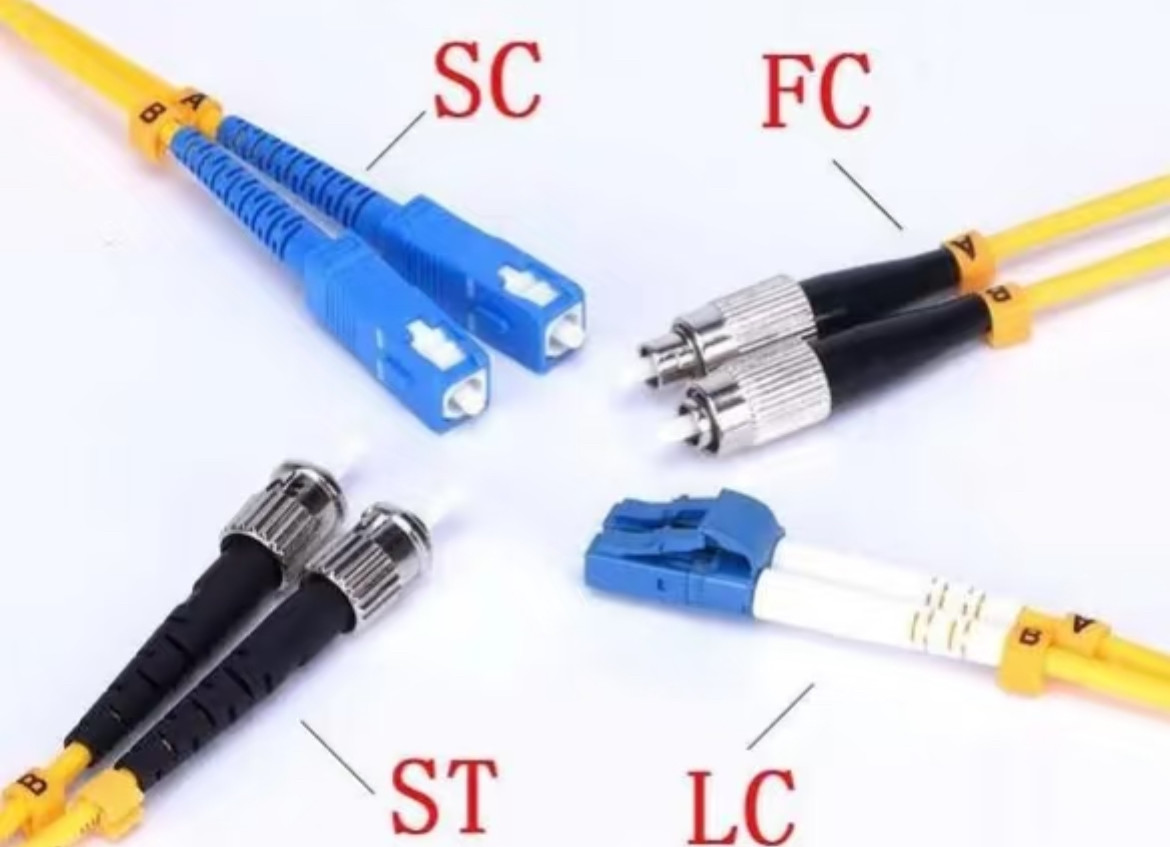

The LC-SC Singlemode Duplex Fiber Optic Patch Cord is a high-performance cable equipped with connectors on both ends, enabling quick and easy connections to CATV systems, optical switches, or other telecom devices. Designed with a durable protective layer, it is ideal for linking optical transmitters, receivers, and terminal boxes in what is referred to as "interconnect-style cabling." These patch cords are known for their exceptional reliability, offering low insertion and return loss. Available in both simplex and duplex formats, they are terminated with precision-engineered connectors and can be customized in various combinations of ST, SC, LC, and MTRJ types, with polish options including PC, UPC, or APC to suit standard or bespoke requirements.
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
| Mode |
SM |
MM |
| Polish |
UPC |
APC |
APC |
| Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
| Return Loss |
≥50dB |
≥65dB |
≥35dB |
| Interchangeability |
≤0.2dB |
| Repeatability |
≤0.1dB |
| Durability |
≤0.2dB(1000 times mating) |
| Tensile Strengh |
>10kg |
| Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
| Humidity |
≤0.2dB(+25+65 93 R.H.100 hours) |
Technical Data
|
Type
|
Standard,Master
|
|
Style
|
LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC
|
|
Fiber
|
Singlemode/Multimode
50/125,62.5/125 (Multimode) OM2&OM1
50/125,10G(Multimode)OM3
|
|
Cable
|
Simplex,Duplex
Φ3.0mm,Φ20mm,Φ0.9mm
PVC or LSZH
|
|
Polishing Manner
|
UPC,SPC,APC (8°&6°)
|
|
Insertion Loss
|
≤0.1dB(For Singlemode Master)
≤0.25dB(ForSinglemodeStandard)
≤0.25dB(ForMultimode)
Tested by JDSRM3750
|
|
ReturnLose (Singlemode)
|
UPC≥50dB
SPC≥55dB
APC≥60dB(typ.65dB)
Tested by JDSRM3750
|
|
Repeatability
|
±0.1dB
|
|
Operating temperature
|
-400C° to 850 C°
|
|
GeometryRequirement (Singlemode)
|
Ferrule Endface Radius
7mm≤R≤12mm(For APC)
10mm≤R≤25mm(For Standard)
Apex Offset≤30μm(For Master)
Apex Offset≤50μm(For Standard)
Under cut-50nmSU≤50nm
Tested by DORCZX-1
|
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou, and you're welcome to visit us anytime!
2. How is the product quality ensured?
Every fiber undergoes thorough testing before shipment. After confirming the price, you’re welcome to request free samples to evaluate our product quality.
3. Do you accept small orders?
Absolutely. We welcome small orders and support our customers' new projects. We understand that many successful businesses start with small quantities.
4. What is your typical delivery time?
Our standard lead time is around 3–7 working days, depending on the order quantity. Rest assured, we’ll begin processing your order promptly after payment.
