FTTH Indoor/Outdoor Fiber Optic Drop Cable Patch Cord SC/LC/ST-UPC/APC Connectors

Product Description

SC UPC SC APC FTTH drop fiber patch cord SM G657A1 G657a2 anti bending 10M 30M 50M 100M 200m LSZH



Description of fiber drop cable







Features

• Low insertion loss and excellent performance

• FTTH drop cable dimensions: Φ2.0 × 5.0 mm

• Reinforcement options: GFRP, QFRP, KFRP, or steel wire

• Fiber types available: G.652D, G.657A1, G.657A2, G.657B3

• Compliant with IEC standards; certified by ISO9001:2008, ROHS, and CE

• 100% quality inspection conducted before delivery

---

Applications

• Suitable for FTTH networks in both indoor and outdoor environments

• Ideal for Local Area Networks (LAN) and building cabling systems

• Used for interconnecting instruments, terminal boxes, and communication equipment

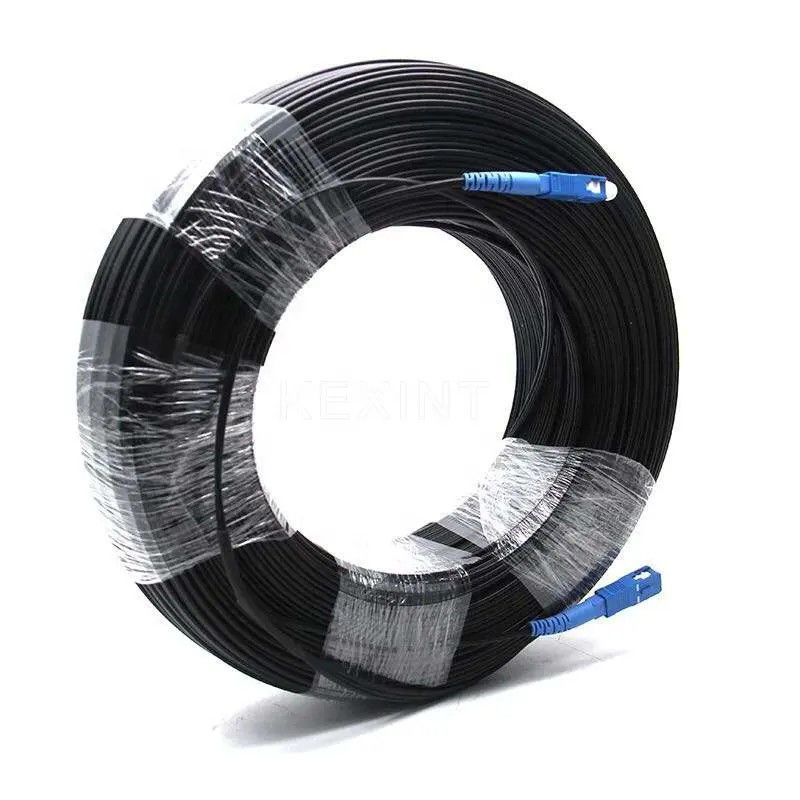

                                                                              SC/UPC-SC/UPC

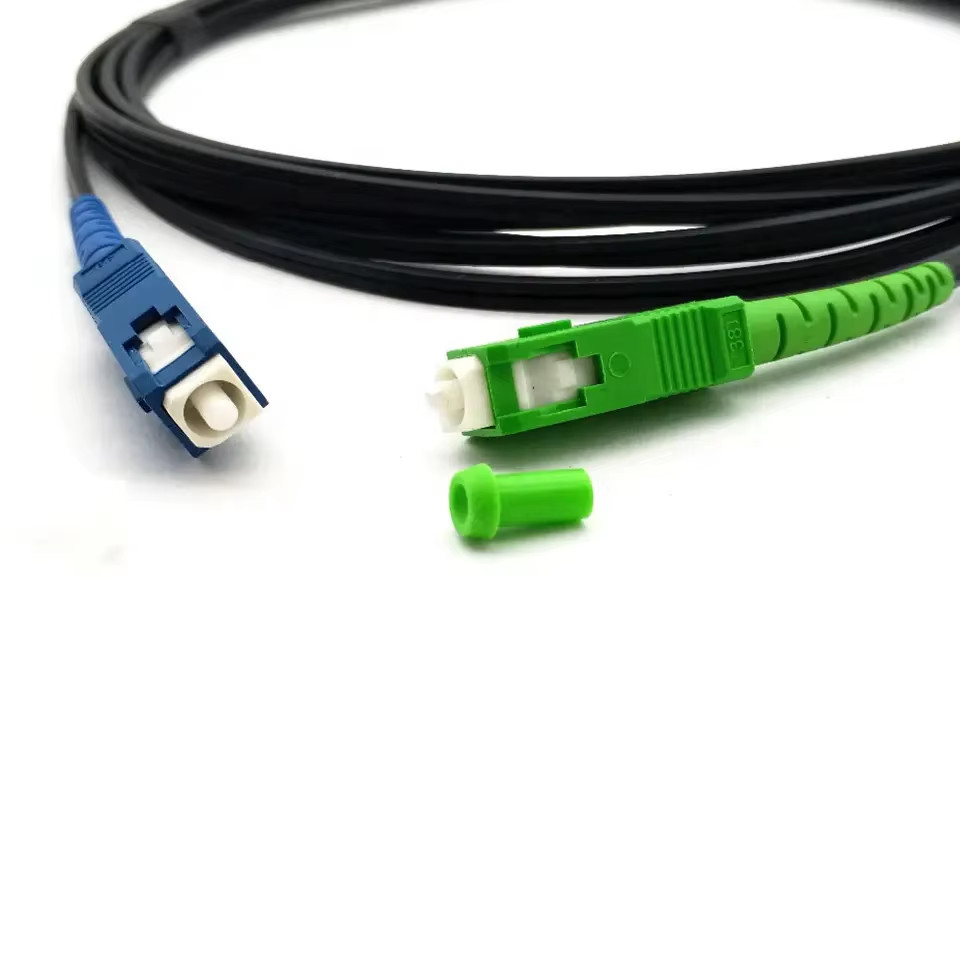

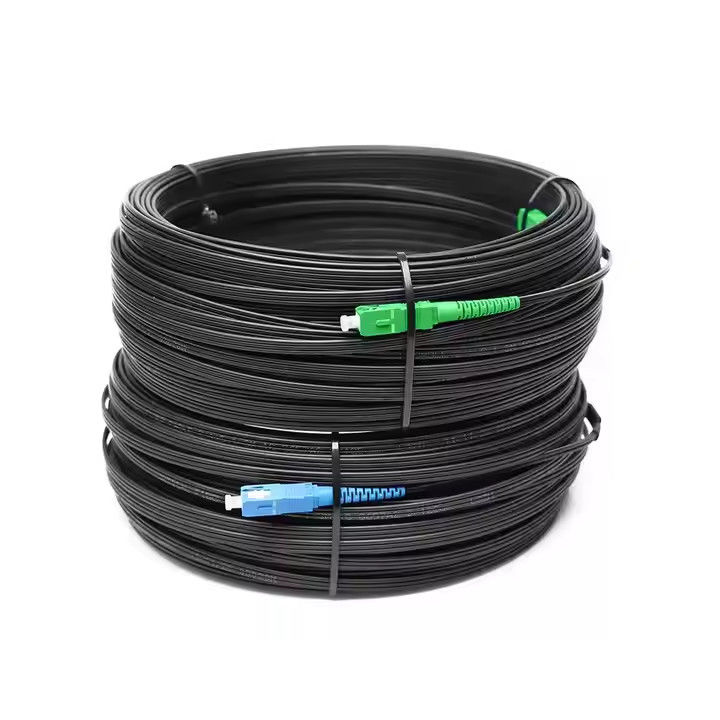

                                                                              SC/UPC-SC/APC



Optical Characteristics

Items		Unit	Specification
			G657a2
Mode Field Diameter	1310nm	um	8.6±0.4
	1550nm	um	9.5±0.5
Cladding Diameter		um	125±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.35
	1550nm	dBkm	≤0.21







Cable Parameters

Items		Specifications
Fiber Count		2~12
Colored Coating Fiber	Dimension	250μm+15μm
	Color	blue /orange
Strength Member	Diameter	0.45mm/0.5mm
	Material	Steel/FRP
Outer Jacket	Dimension	2.0*3.0mm/2.0*5.0mm/2.7*6.5mm
	Material	LSZH ( Low smoke zero halogen)
	Color	Black/white





Technical Parameters

Fiber Count	Cable Diameter(mm)	Cable Weight kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic mm)
2~4	2.0*3.0	9.5	300/600	1000/2200	10D/20D
6-12	2.7*6.5	11	300/600	1000/2200	10D/20D







details pictures showes





                                                   indoor drop cable





                                              outdoor drop cable







                                           loose tube outdoor drop cable





drop cable package





                                                    package in the box





                                              package in the pallets







For more details, pls contact Philip, Tel:  +8613422342788, What App : +8613422342788,

Email : philip@gzjqofc.com





FAQ

1. Are you a trading company or a manufacturer?
We are a manufacturer with 12 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou. You're warmly welcome to visit us!

2. How do you ensure product quality?
Every fiber is thoroughly tested before delivery to ensure high quality. After confirming the price, you may request free samples to evaluate our products.

3. Do you accept small orders?
Yes, we do. We’re happy to support new projects and understand that many businesses start with small quantities.

4. What is your typical delivery time?
Generally, it takes about 3–7 working days, depending on the order quantity. Rest assured, your goods will be arranged and shipped promptly after payment.

5. Do you offer OEM services?
Yes, OEM service is available. We can customize products with your logo, and we’re open to any design or idea you may have.
