Product Description

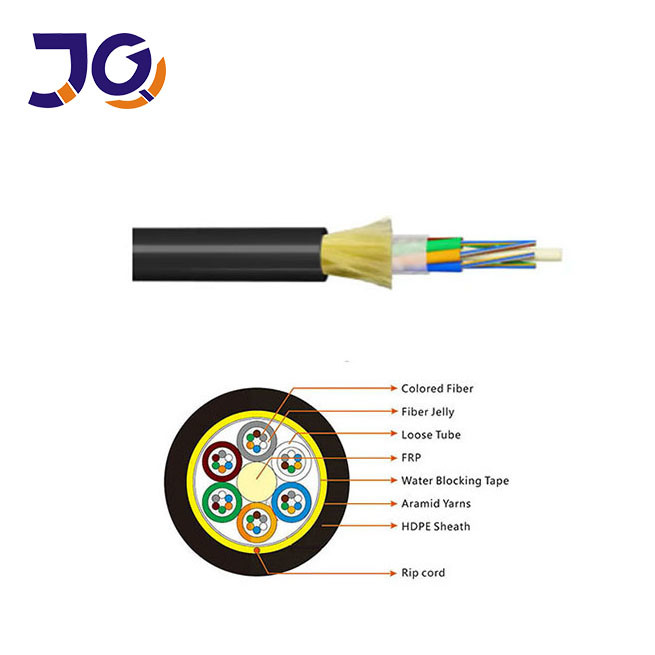

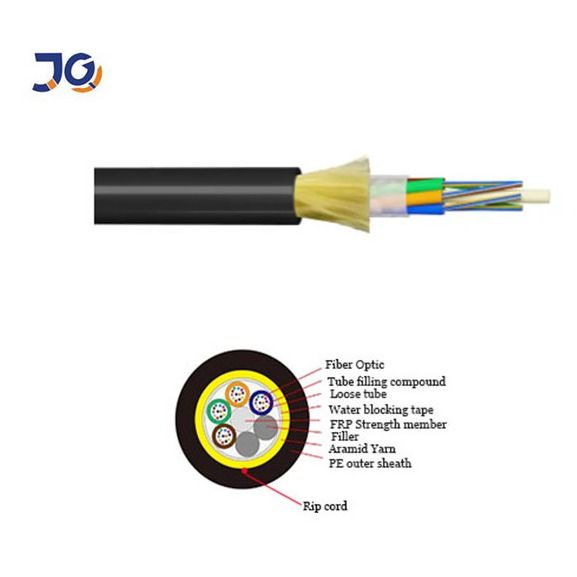

ADSS cable adopts a loose tube stranded design. Optical fibers, each with a 250 μm diameter, are housed and protected within tubes made from high modulus plastic, which are filled with a water-blocking compound. These tubes and fillers are helically stranded around a central FRP (Fiber Reinforced Plastic) rod that serves as a non-metallic strength element, forming a compact, circular core. A thin polyethylene (PE) inner jacket is then applied. Surrounding this, aramid yarns are helically wound to provide additional tensile strength. Finally, the entire assembly is enclosed with a PE or AT (anti-tracking) outer sheath, completing the cable.
Features:
This cable offers excellent mechanical and thermal properties. Its lightweight design and small diameter help minimize wind and ice loads, as well as reduce the overall stress on towers and poles. Additionally, the inclusion of aramid yarn significantly enhances its tensile strength. With a maximum span exceeding 1000 meters, it is well-suited for extensive installations.
| No. |
Items |
Unit |
Specification |
| G.652D |
| 1 |
Mode Field Diameter |
13 10nm |
μm |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| 2 |
Cladding Diameter |
μm |
124.8±0.7 |
| 3 |
Cladding Non-Circularity |
% |
≤0.7 |
| 4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
| 5 |
Coating Diameter |
μm |
245±5 |
| 6 |
Coating Non-Circularity |
% |
≤6.0 |
| 7 |
Cladding-Coating Concentricity Error |
um |
≤12.0 |
| 8 |
Cable Cutoff Wavelength |
μm |
λcc≤1260 |
| 9 |
Attenuation(max.) |
1550nm |
dB/km |
≤0.36 |
| 1310nm |
dB/km |
<0.22 |
Applications:
Establishing long-distance telecom links or local area networks (LAN) in high-voltage environments is straightforward with the self-support aerial method.
This approach is highly effective, enabling network access even under demanding conditions. It allows for quick, cost-efficient installation and delivers dependable, secure connections with minimal interruptions, ensuring long-term service for users.
Customization:
ADSS Fiber Optic Cable
Brand: JQ
Model: ADSS
Origin: Guangzhou, China
Storage Temperature: -40℃ to +85℃
Attenuation: ≤0.36 dB/km @1310 nm, ≤0.22 dB/km @1550 nm
Available Lengths: 1 km, 2 km, 3 km, 4 km, 5 km
Fiber Type: Single-mode
Features: Suitable for aerial installation; available in 72F and 96F configurations for 100 m spans.
Support and Services — ADSS Fiber Optic Cable
We provide complete technical support and services to assist customers with the installation, operation, and maintenance of ADSS fiber optic cables.
Both online and phone support are available 24/7, with our technicians ready to answer questions and resolve any issues.
For customers requiring additional help, we also offer on-site installation and maintenance by a team of experienced fiber optic specialists.
For further details or assistance, please feel free to contact us anytime.
Packing and Shipping — ADSS Fiber Optic Cable
ADSS fiber optic cables are packaged in bundles of various lengths as per customer requirements. Each bundle is securely bound to prevent tangling and protected with a plastic film. Bundles are then placed in labeled cardboard boxes, sealed with strong tape, and shipped by ground or air freight according to the customer’s delivery preference.
FAQ:
Q1: What is the brand and model of the ADSS Fiber Optic Cable?
A1: Brand: JQ; Model: ADSS
Q2: Where is it produced?
A2: It is manufactured in Guangzhou, China.
Q3: What transmission speed does it support?
A3: It supports speeds up to 10 Gbps.
Q4: What is its maximum range?
A4: The cable can cover distances up to 80 km.
Q5: What is the fiber core diameter?
A5: The core diameter is 0.9 mm.
