Home /Products/ADSS Fiber Optic Cable/Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span

Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span

1km
MOQ
Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC Or Fiberhome As Request
Fiber Count: 4 -144 Core
Color: Black,Customized
Length: 2km Or Customized Length
Jacket Material: MDPE/HDPE Or AT
Name: ADSS Optical Fiber Cable
Strength Member: FRP Central Strength Member
Operating Temperature: -40 ~ +60 C
Span: 50/100/200/300/400m
Installation: Self- Supporting Aerial
Outer Sheath: PE
Cable Structure: Loose Tube Or Ribbon
Number Of Cores: 2-144 Core
Cable Name: Aerial Fiber Optic ADSS Cable
Cable Color: Black
Installation Method: Aerial
Aramid Yarn: Yes
Cable Model: ADSS Optical Fiber Cable
Strength Material: Kevlar
Strength Number: FRP, Kevlar Aramid Yarn
Cable Type: All-Dielectric Self-Supporting
Sheath Material: PE/AT
Strength Member: Armid Yarn
Lift Time: 25 Years
Application: Long-haul Communication Or Access Network
Highlight:

Single Jacket ADSS Fiber Optic Cable

,

Outdoor ADSS Fiber Optic Cable

,

100m Span ADSS Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: ADSS-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Communication Cable 24 Core AT/PE ADSS Fiber Optic Cable

All Dielectric Self supporting 24 Core ADSS Fiber Optic Cable With 100m Span



Product Description

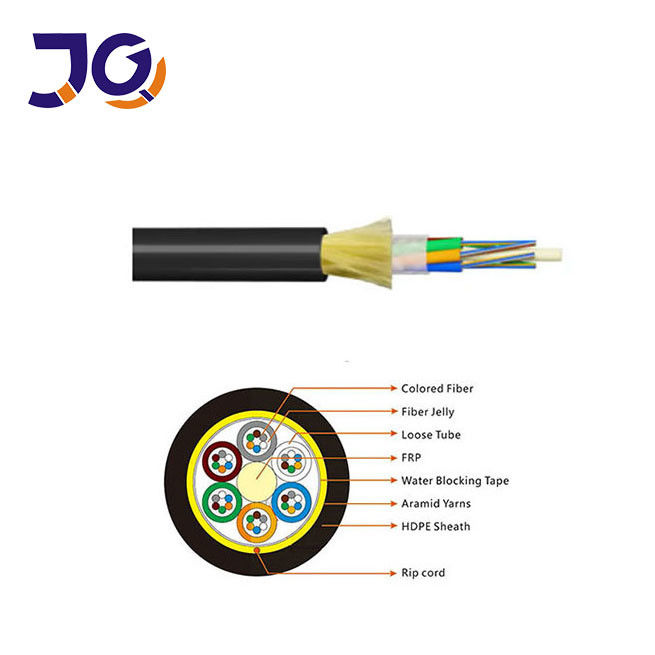

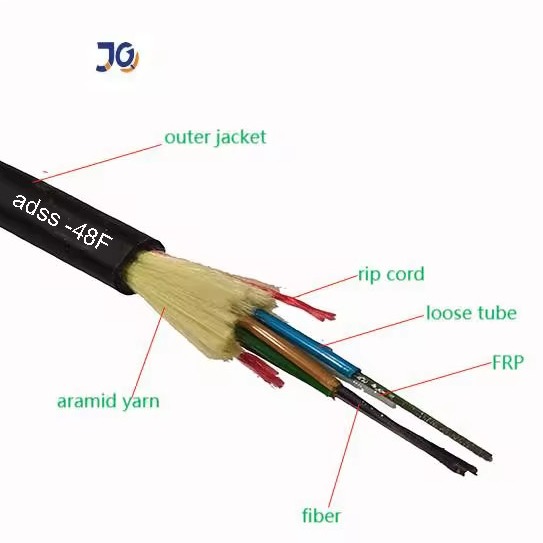

The ADSS cable adopts a loose tube stranded structure. 250μm fibers are housed in loose tubes made from high-modulus plastic materials, which are filled with water-blocking gel. These tubes, along with filler rods, are helically stranded around a central non-metallic strength core made of fiber reinforced plastic (FRP), forming a compact circular cable structure. The core is then filled with a protective compound and encased in a thin inner polyethylene (PE) sheath. A layer of aramid yarn is applied over the inner sheath to provide additional tensile strength. Finally, a PE or anti-tracking (AT) outer jacket is extruded to complete the cable.



Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span 0

Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span 1



Features

To ensure excellent flexibility, crush resistance, and watertight performance, the cable features full core filling and water-blocking gel within the loose tubes. It offers reliable mechanical strength and stable performance across temperature variations. The loose tubes are made of high-strength, hydrolysis-resistant material, while a specially formulated filling compound provides essential fiber protection. A single FRP rod serves as the central non-metallic strength member.



Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Data



Span : 100m



under 110kv



24core



structural

parameter



Central strength components : FRP



Diameter : 1.5mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable

10.0mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



85kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



Young's modulus



7.8 kn/mm2



Coefficient of thermal expansion



1.810-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm



4-144 core ADSS Fiber Optic Cable

Fiber

count

 Structure

Fibers

per tube

Loose tube

diameter

(mm)

CSM diameter

/pad diameter(mm)

Nominal Thickness

of outer jacket(mm)

Cable diameter

(mm)

Cable

Weight

(kg/km)
4 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
6 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 81
8 1+6 4 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
12 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 82
24 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 83
36 1+6 6 2.0±0.1 2.3/2.3 1.7 10.5±0.5 84
48 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 93
72 1+6 12 2.2±0.1 2.6/2.6 1.7 11.1±0.5 95
96 1+8 12 2.2±0.1 3.0/3.9 1.7 12.5±0.5 122
144 1+12 12 2.2±0.1 3.5/6.4 1.7 15.5±0.5 185





Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.
Other length is also available if required by buyer.

Cable type                                             Drum
Height (mm) Width (mm) Inner diameter (mm)

Length

(km)

 Drum type
ADSS-4 900 760 500 2 Plywood wood drum
ADSS-6 900 760 500 2 Plywood wood drum
ADSS-8 900 760 500 2 Plywood wood drum
ADSS-12 900 760 500 2 Plywood wood drum
ADSS-24 900 760 500 2 Plywood wood drum
ADSS-36 900 760 500 2 Plywood wood drum
ADSS-48 950 760 500 2 Plywood wood drum
ADSS-72 950 760 500 2 Plywood wood drum
ADSS-96 1000 760 500 2 Plywood wood drum
ADSS-144 1200 760 500 2 Plywood wood drum

Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Single Jacket ADSS Outdoor Aerial Fiber Optic Cable 100m Span 2





FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in the R&D and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou — you're welcome to visit us.

2. How is the product quality ensured?
All fibers undergo strict testing before delivery. After confirming the price, you may request free samples to evaluate our quality.

3. Do you accept small orders?
Yes, we support small orders, especially for new projects. We understand that big business often starts small.

4. What’s your delivery time?
Normally 3–7 working days, depending on the order quantity. We’ll arrange shipment promptly after receiving your payment.

5. Do you offer OEM services?
Yes, OEM is available. We can print your logo and customize products based on your ideas.
