Fibra Optica 24 48 96 Hilos ADSS Span200m 48 96 144 Core Single/Double Jacket ADSS ASU Fiber Optic Cable

Minimum Order Quantity :	1km	Packaging Details :	Plywood drum
Delivery Time :	5-7 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union

Place of Origin:	China	Brand Name:	Jiqian
Certification:	ISO9001/ROHS/CE/FCC	Model Number:	ADSS-96B1

Product Description

Product Description

Fibra Optica 24 48 96 Hilos ADSS Span200m 48 96 144 Core Single/Double Jacket ADSS ASU Fiber Optic Cable

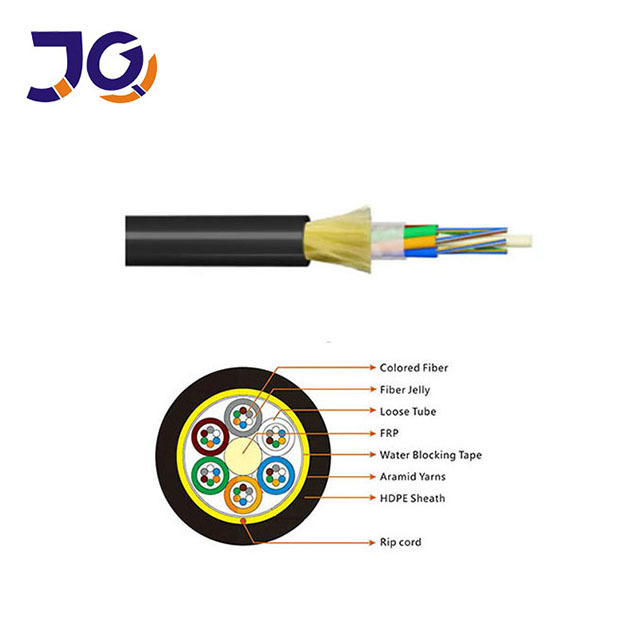

Single Jacket ADSS Fiber Optic Cable 4-576 Cores

Fibra Optica 24 48 96 Hilos ADSS Span200m 48 96 144 Core Single/Double Jacket ADSS ASU Fiber Optic Cable 0

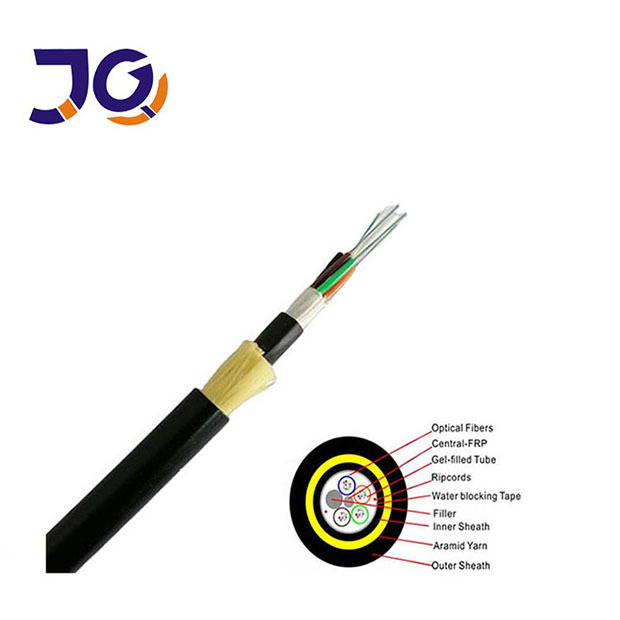

Double Jacket Fiber Optic Cable 4-576 Cores

Fibra Optica 24 48 96 Hilos ADSS Span200m 48 96 144 Core Single/Double Jacket ADSS ASU Fiber Optic Cable 1

Fibra Optica 24 48 96 Hilos ADSS Span200m 48 96 144 Core Single/Double Jacket ADSS ASU Fiber Optic Cable 2

For outside plant aerial and duct applications
A separate messenger support wire hanging system is not required
Greatly reducing installation time
Improving upfront and maintenance labor costs

G652D Parameter:

Item		Unit	Specification
Fiber Type			G.652D
Fiber Brand			YOFC
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.35
Attenuation Coefficient	1550nm	dB/km	≤0.21
Proof stress level		kpsi	≥100

Span(m)	100	200	300
Rated tensile strength(RTS)	7.1	10.8kn	15.7kn
Allows the use of tension(MAT)	2.8 kn	4.3kn	6.3kn
The compressive strength	Long time: 1100 n/100mm	Long time: 1100 n/100mm	Long time: 1100 n/100mm
The compressive strength	Short time: 2200 n/100mm	Short time: 2200 n/100mm	Short time: 2200 n/100mm

Cable accessories:

Packaging:

Company profile:

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ:

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes

Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
