FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable
FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable
FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable
Contact Now

FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable

Minimum Order Quantity : 50PCS Packaging Details : PE bag or plastic box and Cartoon box
Delivery Time : 3-5 work days Payment Terms : Western Union,T/T, L/C
Supply Ability : 30000pcs per day
Place of Origin: Guangzhou, China Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC Model Number: Fiber Optic Pigtail

Detail Information
Application: FTTH FTTB FTTX Network Connector Type: SC UPC
Length: Can Be Customized Color: Customized
Cable Diameter: 0.9/2.0/3.0mm Ferrule End-face: PC/UPC/APC
Jacket Material: PVC/LSZH/PE Product Name: Fiber Optic Pigtail
Cable Diameter: 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm Return Loss: ≥50dB
Material: PVC Or LSZH Model Name: Fiber Optical Patch Cord
Jacket Od: 4.5mm Item: ST-ST Simplex
Standard: IEC 61754-15 Product: Fiber Optic Patch Cord
Conntctor Type: SC To ST Jacket Colour: Yellow Or Customized
Free Sample: Avalible Strength Member: Aramied Yarn
Priduct Name: Fiber Optic Patch Cord Jacket: PVC
Wiring Devices: ODF
Highlight:

12 core multimode fiber patch cable

,

SC UPC fiber optic pigtail

,

FTTH FTTB 0.9mm patch cord

Product Description

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Optical Fiber Pigtail Cable

Descriptions
Fiber optic pigtails are key components in optical networks. They are pre-terminated cables with one end connected to optical equipment and the other end ready for splicing. Our patch cord series offers a wide range of lengths, connector types, and fiber counts (4, 6, 8, 12, 24, 48 cores) in both single-mode and multimode options. Each pigtail is factory-tested to meet Telcordia standards, ensuring stable performance and reliability. They are ideal for jumper connections, cross-connects, and work area links in fiber optic systems.



Charactors

  • Multiple connector types: SC, LC, FC, MU, ST, MT-RJ, E2000

  • High-quality polishing: PC, APC, UPC, SPC

  • Single-mode (9/125) and multimode (50/125, 62.5/125) available

  • Cable sizes: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Simplex and duplex configurations optional

  • Jacket materials: PVC or LSZH; OM1, OM2, OM3 optional

  • Excellent durability and interchangeability

  • Customized lengths and specifications available


Application

  • FTTH (Fiber to the Home)

  • FTTB (Fiber to the Building)

  • LAN & WAN Networks

  • CATV & CCTV Systems

  • High-speed data transmission

  • Fiber optic sensing and testing



Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

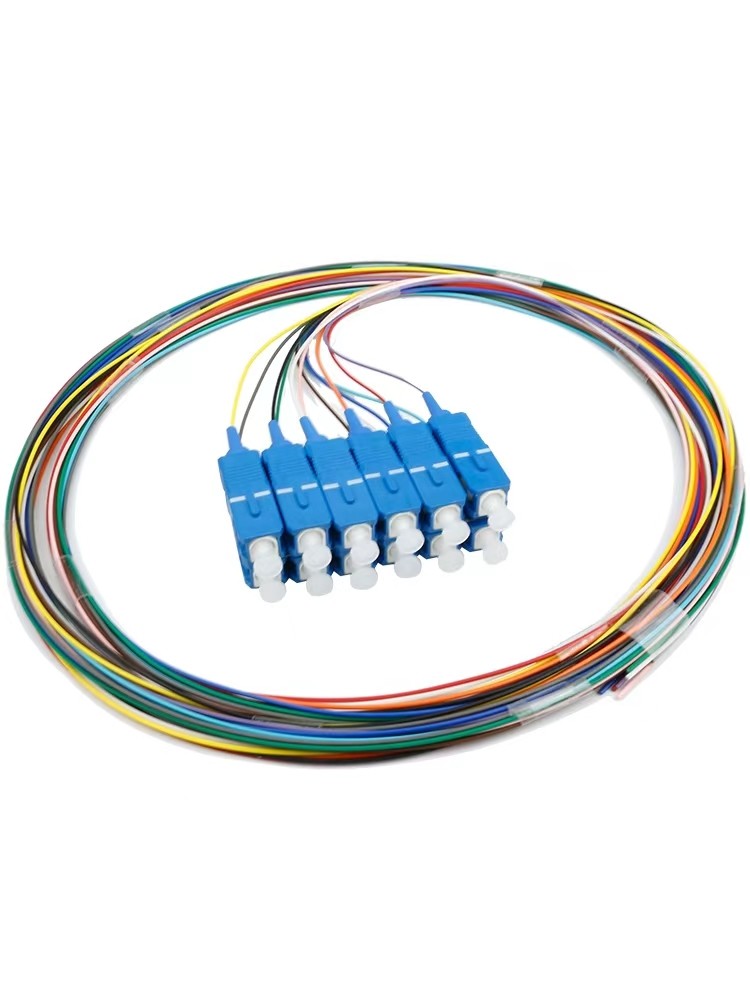

FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable 0

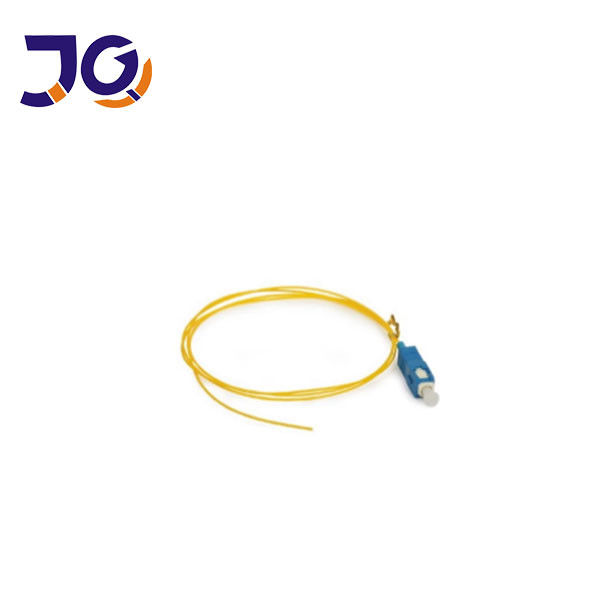

FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable 1

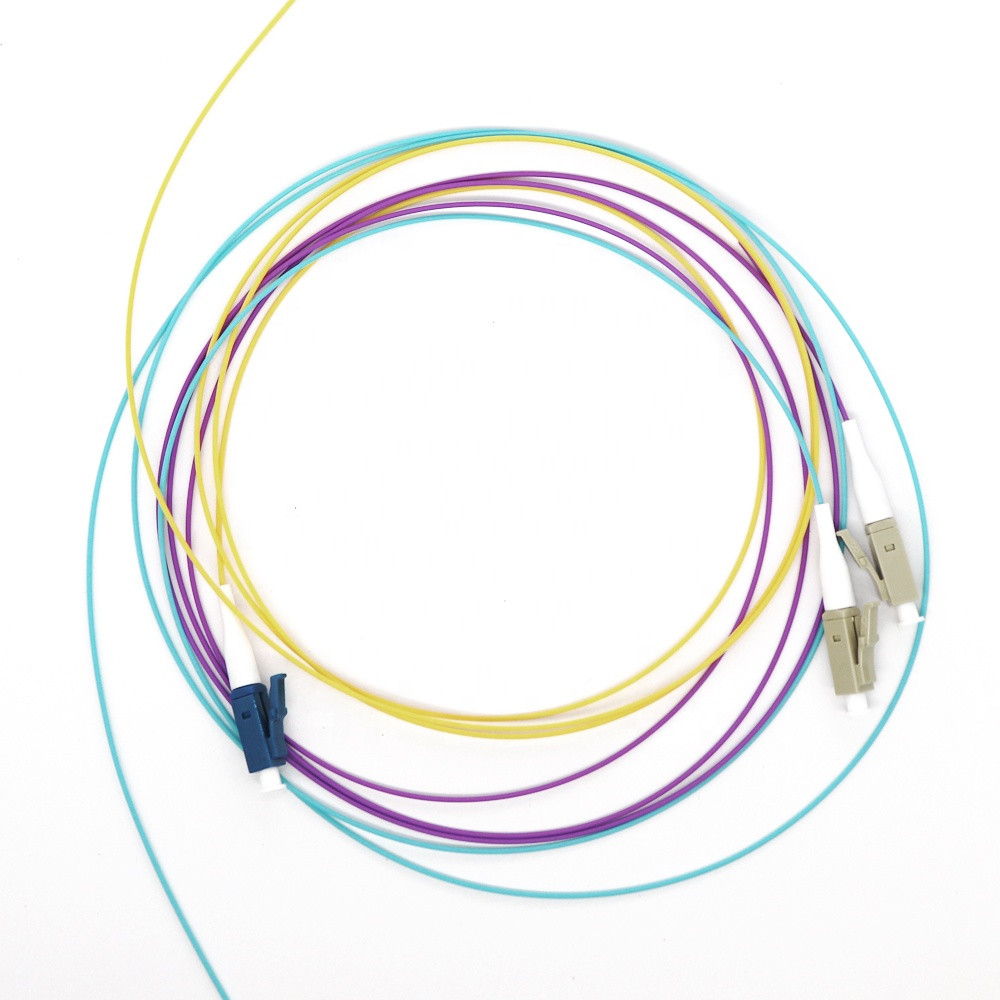

FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable 2

FTTH FTTB 12 Core Optical Fiber Pigtail SC UPC 0.9mm Multimode Patch Cable 3

FAQ

1. Are you a real manufacturer?
Yes, we are an experienced manufacturer with over 10 years in fiber optic production.

2. Do you accept small orders?
Of course. We welcome small trial orders and new project requests, as every big business starts from small.

3. What is your warranty period?
We provide up to 25 years warranty for fiber optic cables.

4. How fast can you deliver?
Normally within 3–5 working days after order confirmation.

5. What is your annual production capacity?

  • Outdoor/Indoor Fiber Optic Cable: 6,000,000 km/year

  • FTTH/FTTX/FTTA Cable: 6,000,000 km/year

  • Patch Cords & Pigtails: 12,400,000 pcs/year

6. Can you offer customized products with logo?
Yes, OEM & ODM services are available. Send us your design or requirements and we will make it for you.
