Product Description

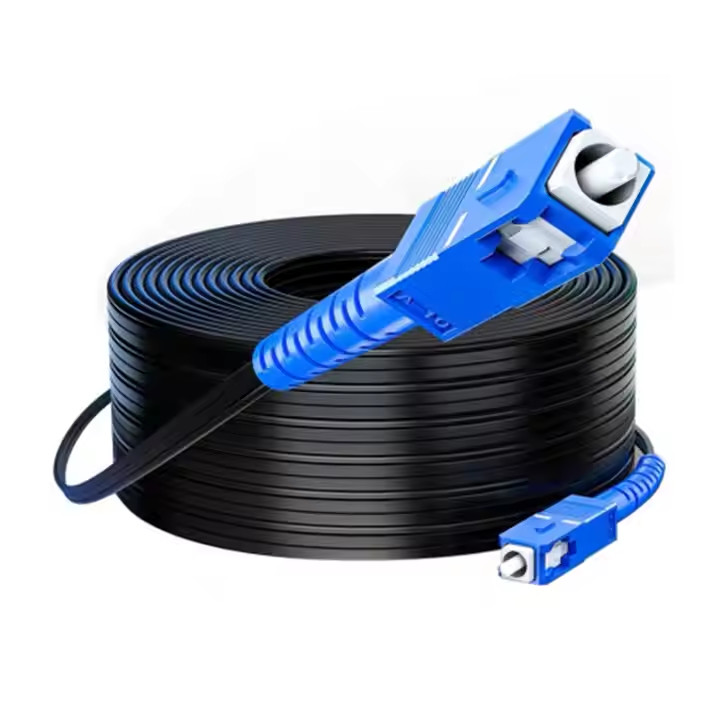

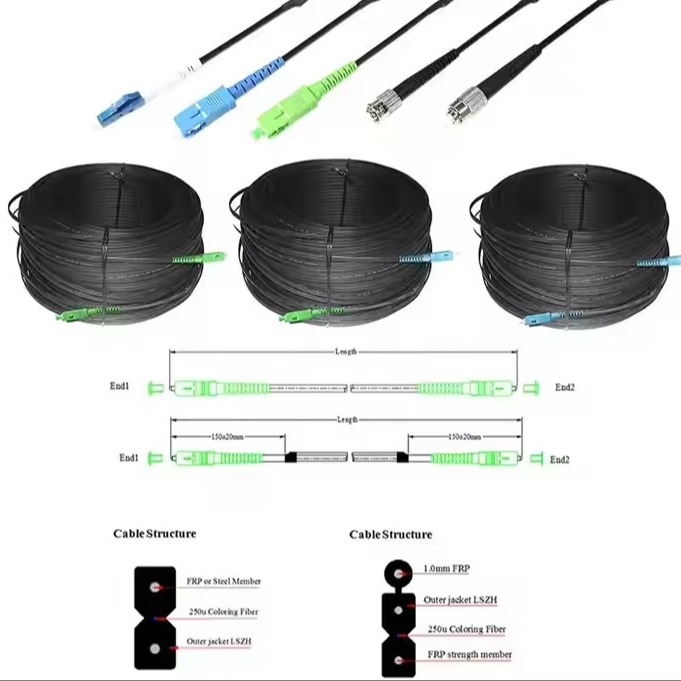

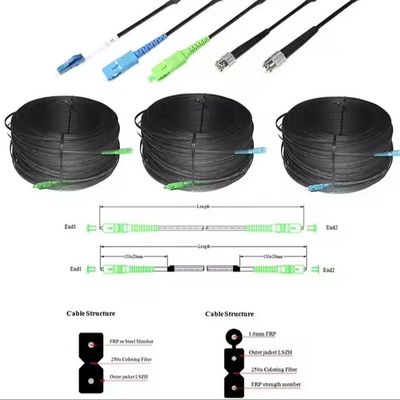

This SC/APC to SC/UPC fiber optic patch cord is designed for reliable and high-performance connections in telecom and data networks. It adopts 9/125µm single-mode simplex fiber with a 900µm buffered structure, ensuring durability and stable transmission.
Each patch cord is factory terminated, UPC polished, and 100% tested for insertion loss and return loss. Test results are recorded and traceable with a unique Quality Control number, guaranteeing long-term reliability. The cable complies with TIA/EIA-568-B.3 standards and Telcordia GR-326-CORE Issue 3 requirements, ensuring excellent end-face geometry and superior optical performance.
The 3.0mm LSZH jacket offers flame retardance and low smoke emission, making it safe for indoor use, including data centers, FTTH, FTTX, LAN, and telecom rooms. Available in 1m, 2m, and 3m lengths, this patch cord provides flexible installation options for different networking needs.
Key Features:
-
Connector type: SC/APC to SC/UPC
-
Fiber type: 9/125µm Single-Mode Simplex
-
Jacket material: LSZH, 3.0mm outer diameter
-
Factory polished and terminated for stable performance
-
Fully compliant with TIA/EIA and Telcordia standards
-
100% tested for insertion loss & return loss with traceable QC records
-
Length options: 1m, 2m, 3m
-
Ideal for FTTH, FTTX, data centers, LAN, CATV, and telecom applications
Connector Type
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
≥40dB
|
≥50dB
|
≥60dB
|
≥35dB
|
|
Exchange
|
≤0.2dB
|
|
Repeatability
|
≤0.2dB
|
|
Servicelife
|
>1000times
|
|
Tensile strength
|
>10kg
|
|
Temperature range
|
-40°C to +85°C
|
Technical Data
|
Type
|
Standard,Master
|
|
Style
|

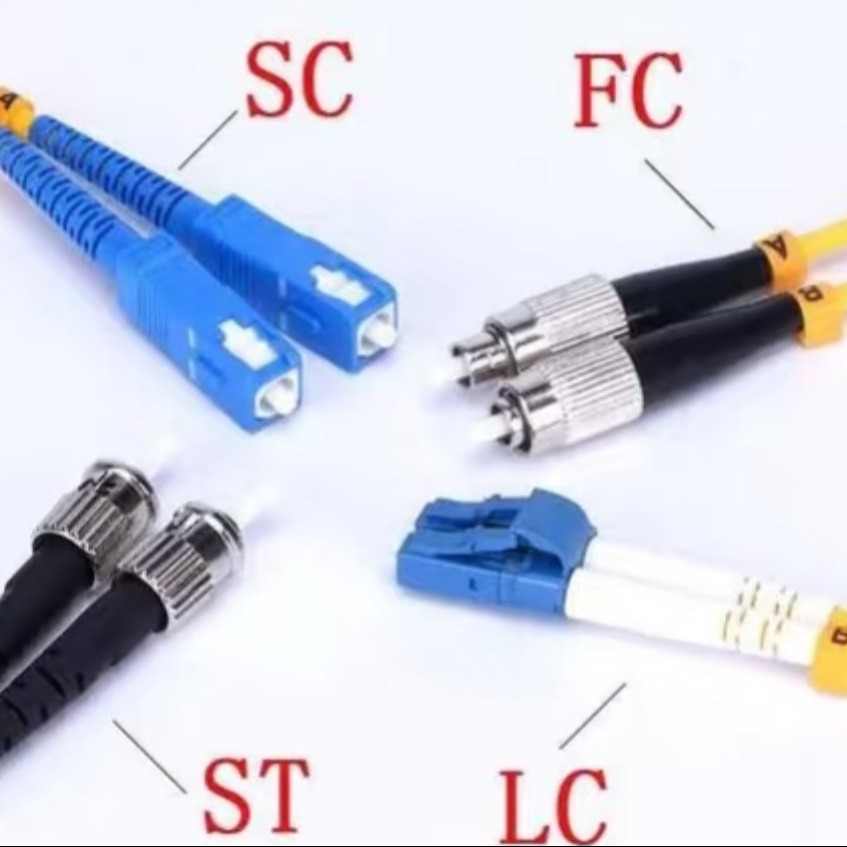

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,
FC/APC,LC/APC.MU/APC
|
|
Fiber
|
Singlemode/Multimode
50/125,62.5/125(Multi mode) OM2&OM1
50/125,10G(Multi mode)OM3
|
|
Cable
|
Simplex,Duplex
outer diameter:3.0mm,20mm,0.9mm
PVC or LSZH
|
|
Polishing Manner
|
UPC,SPC,APC(8°&6°)
|
|
Insertion Loss
|
≤0.1dB (For Single mode Master)
≤0.25dB (For Single mode Standard)
≤0.25dB (ForMultimode)
Tested by JDSRM3750
|
|
Return Loss
(Single mode)
|
UPC≥50dB
SPC≥55dB
APC≥60dB (typ.65dB)
Tested by JDSRM3750
|
|
Repeat ability
|
≤0.1dB
|
|
Operating temperature
|
-400 C° to 850 C°
|
|
Geometry Requirement
(Single mode)
|
Ferrule Endface Radius
7mm≤R≤12mm (For APC)
10mm≤R≤25mm (For Standard)
Apex Offset≤30μm (For Master)
Apex Offset≤50μm (For Standard)
Under cut-50nm SU≤50nm
Tested by DORCZX-1
|
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord
Q1: What is the difference between SC/APC and SC/UPC connectors?
A1: SC/APC connectors use an 8° angled end-face to reduce back reflection, while SC/UPC connectors have a flat surface with ultra-polished contact. APC is commonly used in CATV, FTTx, and high-precision networks, while UPC is often used in data and telecom applications.
Q2: Is this patch cord single-mode or multimode?
A2: This is a single-mode (SM) fiber optic patch cord, using 9/125µm simplex fiber for long-distance and high-speed transmission.
Q3: What lengths are available?
A3: Standard lengths include 1m, 2m, and 3m, but we can customize other lengths upon request.
Q4: What jacket material is used?
A4: The cable uses a 3.0mm LSZH (Low Smoke Zero Halogen) jacket, which is flame-retardant and safer for indoor installations.
Q5: Are these patch cords tested before shipment?
A5: Yes, every patch cord is 100% factory tested for insertion loss and return loss, with traceable test data.
Q6: What standards does the product comply with?
A6: The patch cord meets TIA/EIA-568-B.3 and Telcordia GR-326-CORE Issue 3 standards, ensuring consistent quality and reliable performance.
Q7: Where can this patch cord be used?
A7: It is ideal for FTTH, FTTX, LAN, CATV, data centers, and telecom networks.
Q8: Can I order customized connectors or lengths?
A8: Yes, customized connector types (LC, FC, ST, etc.) and cable lengths are available upon request.
