Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Contact Now

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Minimum Order Quantity : 50PCS Packaging Details : PE bag or plastic box and Cartoon box
Delivery Time : 3-5 work days Payment Terms : Western Union,T/T, L/C
Supply Ability : 30000pcs per day
Place of Origin: Guangzhou, China Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC Model Number: Fiber Optic Pigtail

Detail Information
Features: High Performance In IL&RL Application: FTTH FTTB FTTX Network
Connector Type: SC UPC Length: 3 Meters Or Customized
Color: Customized Cable Diameter: 0.9/2.0/3.0mm
Ferrule End-face: PC/UPC/APC Jacket Material: PVC/LSZH/PE
Product Name: Fiber Optic Pigtail Transmitter Wavelength: 1310nm
Item: Optical Fiber Patch Cord Fiber Type: G.652D/G.657A1/G.657A2
Network: 4g, 5G Fiber No: 1 (Simplex)
Products: OM4 SC-SC 12Core Fiber Optic Patch Cable Fiber Counts: 9/125um, 50/125um,62.5/125u
Return Loss: >50dB(UPC)/>60dB(APC) Cable Diammeter: 2.0 3.0mm
Ferrule: APC Polish Type: UPC To UPC
Cable Length: 1m/2m/3m/5m/10m/Customized Fiber Mode: Single Mode
Cable Type: Single-mode/Multi-mode Number Of Cores: Single Core
Wavelength: 1260-1650nm Optional Connectors: LC/ SC/FC/ST
Inner: Ceramic Polishing: PC Or UPC
Number Of Conductors: 1 Jacket: PVC/LSZH
Highlight:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Product Description

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

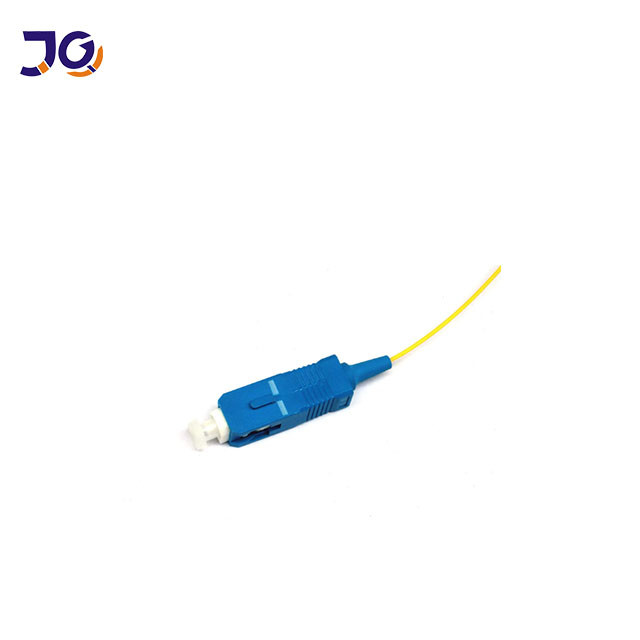

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

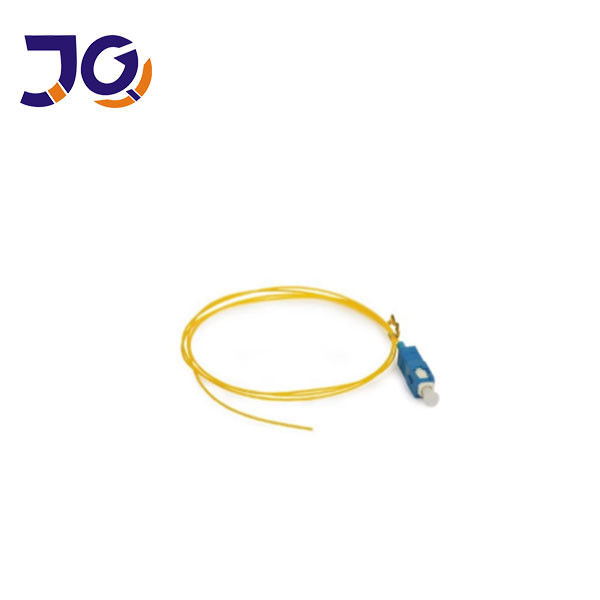

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

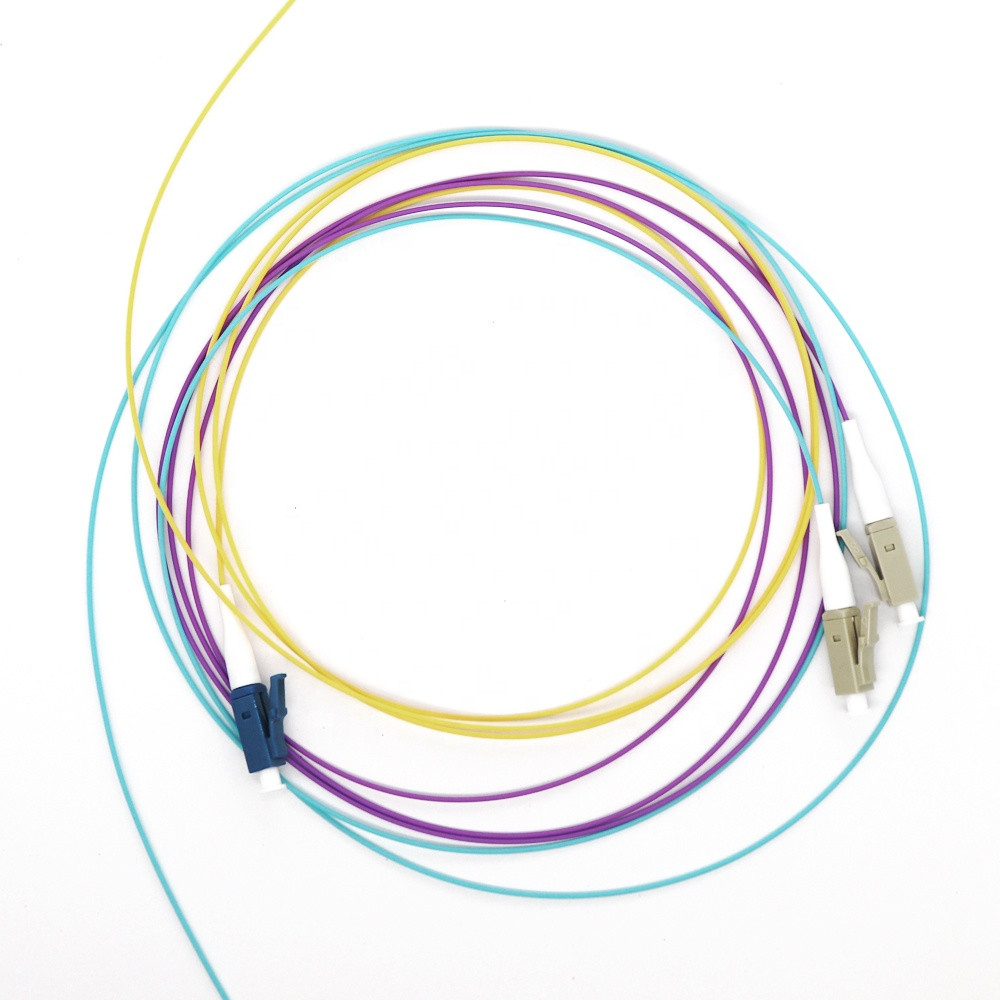

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
