SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition
SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition
SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition
Contact Now

SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition

Minimum Order Quantity : 50PCS Packaging Details : 100PCS In One Export Cartoon box
Delivery Time : 5-8 work days Payment Terms : Western Union, T/T, L/C,Alipay
Supply Ability : 5000pcs per day
Place of Origin: Guangzhou, China Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC Model Number: SM-SX Patch Cord

Detail Information
Material: PVC/LSZH Color: Yellow
Item: Optical Fiber Patch Cord Repeatability: ≤ 0.2 DB
Fiber Count: Simplex Or Duplex Fiber Type: SM Or MM
Quality Control: 100% Test Before Shipping Connector Type: SC/APC-SC/UPC
Highlight:

LSZH fiber optic patch cord

,

SC APC SC UPC patch cable

,

FTTH fast data transmission cable

Product Description

Product Description

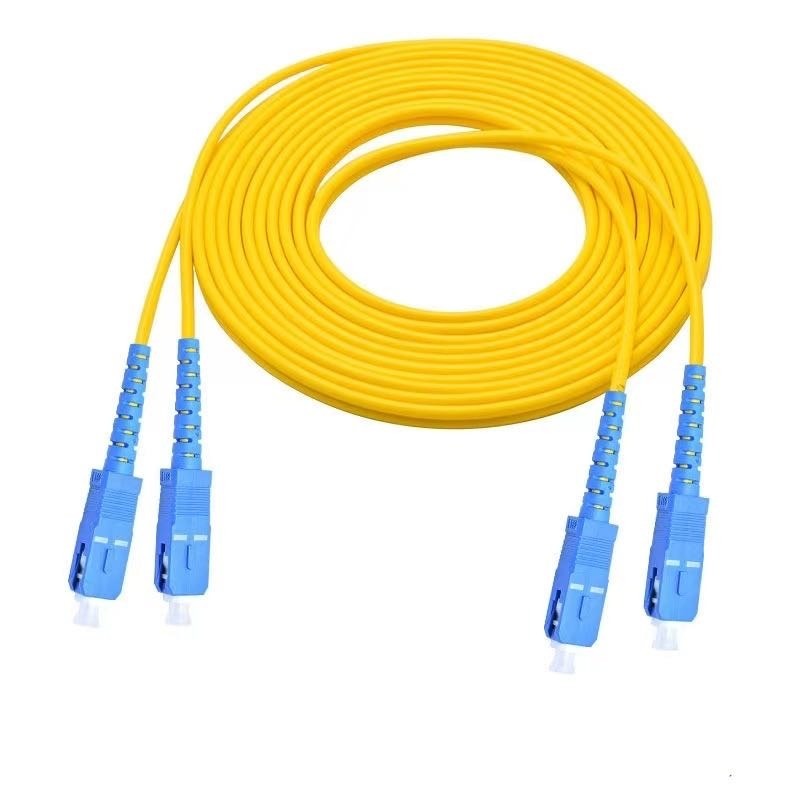

SC/APC to SC/UPC fiber patch cord for reliable high-speed telecom/data connections. Uses 9/125µm single-mode simplex fiber with 900µm buffer for durability.



Factory-terminated, UPC polished, 100% tested (insertion/return loss) with traceable QC. Meets TIA/EIA-568-B.3 and Telcordia GR-326 standards.



3.0mm LSZH jacket: flame-retardant, low-smoke for indoor safety. Lengths: 1m/2m/3m. Ideal for data centers, FTTH/FTTX, LAN, telecom.

Key Features

  • Connectors: SC/APC to SC/UPC
  • Fiber: 9/125µm SM Simplex
  • Jacket: LSZH, 3.0mm
  • Factory polished/tested
  • TIA/EIA & Telcordia compliant
  • 100% tested w/ QC records
  • Lengths: 1m/2m/3m
  • For FTTH/FTTX, data centers, LAN, CATV, telecom

Optical Characteristics





Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



≤0.3dB



≤0.3dB



≤0.3dB



Return loss



≥40dB



≥50dB



≥60dB



≥35dB



Exchange



≤0.2dB



Repeatability



≤0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C





Technical Data



Type



Standard,Master



Style



LC,SC,ST,FC.MU,DIN,MPO,SC/APC,



FC/APC,LC/APC.MU/APC



Fiber



Singlemode/Multimode



50/125,62.5/125(Multi mode) OM2&OM1



50/125,10G(Multi mode)OM3



Cable



Simplex,Duplex



outer diameter:3.0mm,20mm,0.9mm



PVC or LSZH



Polishing Manner



UPC,SPC,APC(8°&6°)



Insertion Loss



≤0.1dB (For Single mode Master)



≤0.25dB (For Single mode Standard)



≤0.25dB (ForMultimode)



Tested by JDSRM3750



Return Loss

(Single mode)



UPC≥50dB



SPC≥55dB



APC≥60dB (typ.65dB)



Tested by JDSRM3750



Repeat ability



≤0.1dB



Operating temperature



-400 C° to 850 C°



Geometry Requirement

(Single mode)



Ferrule Endface Radius



7mm≤R≤12mm (For APC)



10mm≤R≤25mm (For Standard)



Apex Offset≤30μm (For Master)



Apex Offset≤50μm (For Standard)



Under cut-50nm SU≤50nm



Tested by DORCZX-1

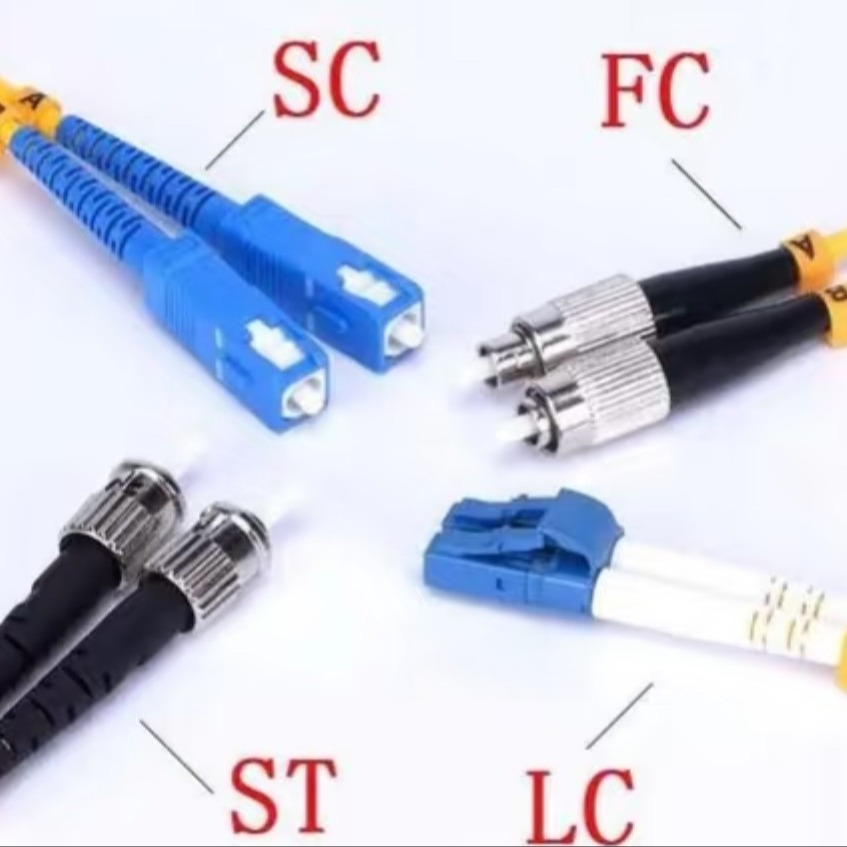

Connector Type

SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 0



SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 1





Feature



Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability





Application

Communication rooms



FTTH (Fiber to The Home)



LAN  (Local Area Network)



FOS(fiber optic sensor)



Fiber Optic Communication System



Optical fiber connected and transmitted equipment



Recommed Products



SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 2













Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 3

SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 4

SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 5







SC APC SC UPC 3mm LSZH Fiber Patch Cord FTTH 1m 2m 3m Fast Data Transmition 6





Factory Pictures





FAQ – SC/APC to SC/UPC Fiber Optic Patch Cord

Q1: Difference between SC/APC and SC/UPC connectors? A1: SC/APC has an 8° angled end-face to minimize back reflection; SC/UPC has a flat, ultra-polished surface. APC suits CATV/FTTx/high-precision; UPC fits data/telecom.



Q2: Single-mode or multimode? A2: Single-mode (SM) with 9/125µm simplex fiber for long-distance/high-speed use.



Q3: Available lengths? A3: 1m, 2m, 3m standard; custom lengths on request.



Q4: Jacket material? A4: 3.0mm LSZH (flame-retardant, low-smoke/zero-halogen) for safe indoor use.



Q5: Tested before shipment? A5: Yes, 100% factory-tested for insertion/return loss with traceable data.



Q6: Compliance standards? A6: TIA/EIA-568-B.3 and Telcordia GR-326-CORE Issue 3 for quality/performance.



Q7: Usage applications? A7: FTTH, FTTX, LAN, CATV, data centers, telecom.



Q8: Custom options? A8: Yes, custom connectors (LC/FC/ST etc.) and lengths available.
