Home /Products/Fiber Optic Patch Cord/12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB

12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB

50PCS
MOQ
12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB
Features Gallery Product Description Request A Quote
Features
Specifications
Application: FTTH FTTB FTTX Network
Connector Type: SC UPC
Length: Can Be Customized
Color: Customized
Cable Diameter: 0.9/2.0/3.0mm
Ferrule End-face: PC/UPC/APC
Jacket Material: PVC/LSZH/PE
Product Name: Fiber Optic Pigtail
Highlight:

12 cores SC UPC fiber pigtail

,

0.9mm multimode fiber optic cable

,

FTTH FTTB fiber patch cord
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC
Model Number: Fiber Optic Pigtail
Payment & Shipping Terms
Packaging Details: PE bag or plastic box and Cartoon box
Delivery Time: 3-5 work days
Payment Terms: Western Union,T/T, L/C
Supply Ability: 30000pcs per day
Product Description

Key Features

  • Connector: SC UPC (custom: LC/FC/ST/MU/E2000)
  • Fiber: MM (50/125 or 62.5/125); SM optional
  • Cable: 0.9/2.0/3.0mm OD
  • Jacket: PVC/LSZH (OM1/OM2/OM3)
  • Polished: PC/UPC/APC/SPC
  • 100% IL/RL tested
  • High interchangeability/repeatability/durability
  • Types: Simplex/duplex/bunch/ribbon fan-out

Applications

  • FTTH/FTTB
  • Telecom/broadband
  • Data centers/server rooms
  • LAN/WAN
  • CATV/CCTV
  • High-speed/optical sensing

Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

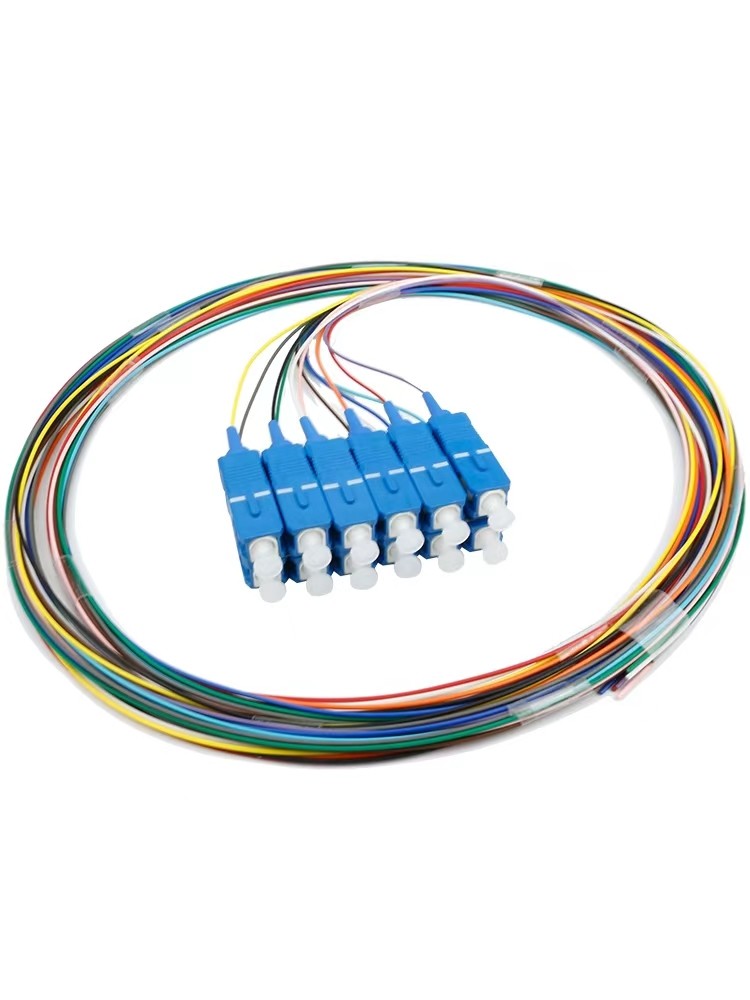

12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB 0

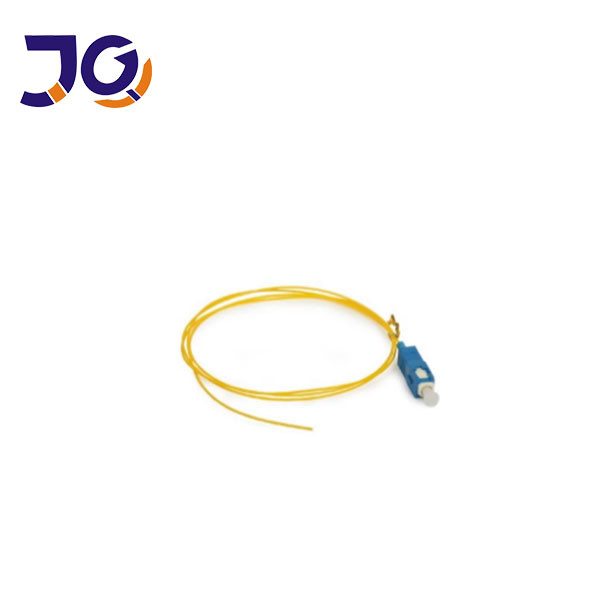

12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB 1

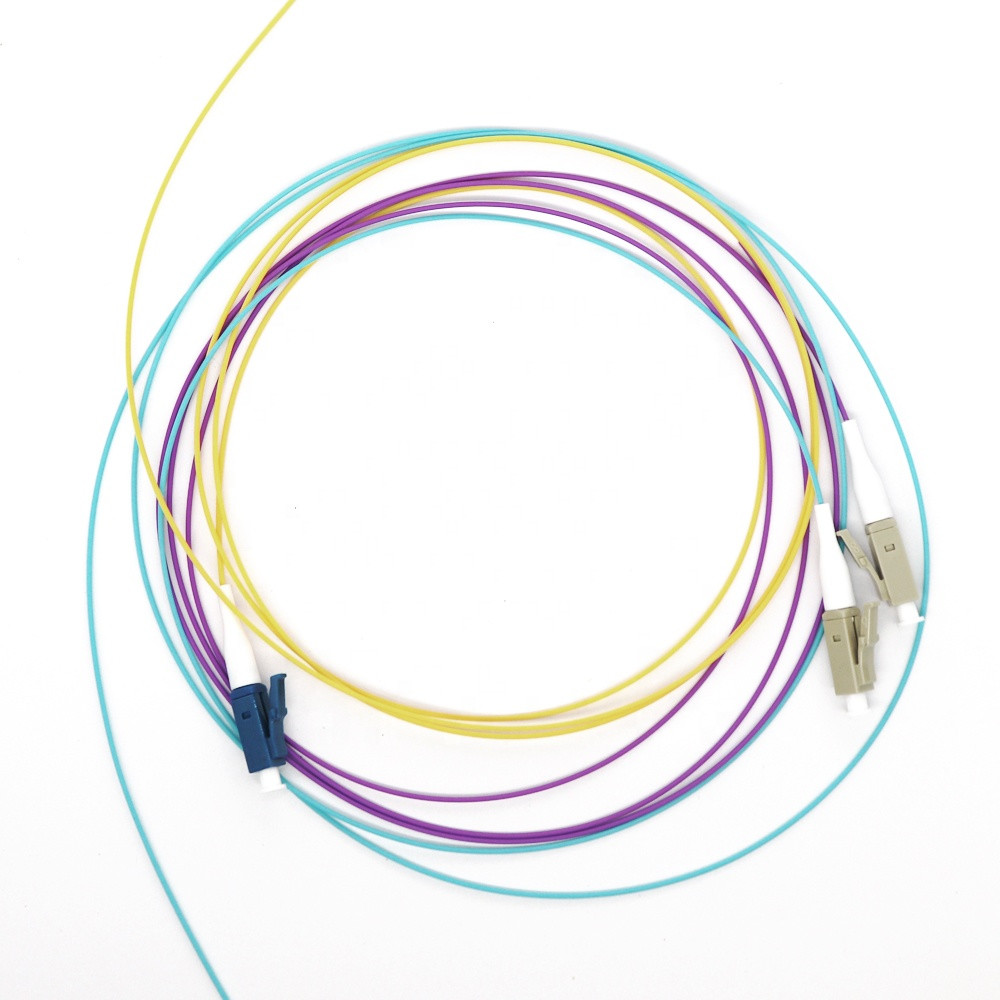

12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB 2

12 Cores SC UPC Fiber Optic Pigtail 0.9mm Multimode Cable FTTH FTTB 3

FAQ – Fiber Optic Cable & Pigtail Manufacturer

Q1: Real manufacturer? A1: Yes, 10+ years in fiber cables/patch cords/pigtails. Factory in Guangzhou, China—visits welcome.



Q2: Small/trial orders? A2: Yes, to start long-term partnerships.



Q3: Warranty? A3: Up to 25 years for cables; 100% tested (IL/RL).



Q4: Delivery time? A4: 3–5 days standard; 7–15 days bulk/custom.



Q5: OEM/ODM? A5: Yes, custom length/jacket/connectors/logos—send specs.



Q6: Standards/samples? A6: ISO9001/CE/RoHS/FCC/Telcordia GR-326. Free samples (shipping on you).
