Home /Products/Aerial Fiber Optic Cable/Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode

Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode

1km
MOQ
Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: PE, MDPE, LSZH, HDPE
Outer Diameter: 6/7/8/9mm
Steel Wire: 0.7/0.8/1.0mm
Color: Black Or Orange Or Customized
Fiber Count: 2/4/6/8/12/24 Core
Structure: Central Loose Tube Cable
Strength Member: Two Steel Wires Strand/FRP Central Strength Member
Installation: Aerial &Duct
Product Name: Outdoor Optic Fiber Cable
Fiber Type: Single Mode Or Multi Mode
Oem: Available
Operating Temperature: -40 ~ +60 C
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYXTW-4/6/8/12B1
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Aerial Central Tube GYXTW Fiber Optic Cable

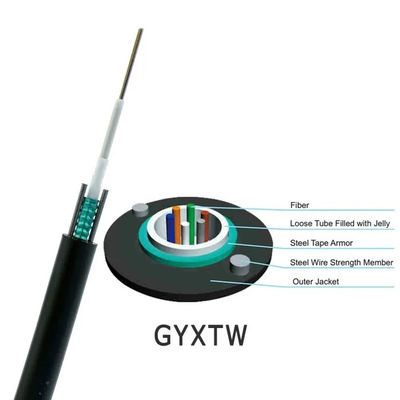

The 250 μm fibers are housed in a high-strength PBT loose tube filled with water-blocking gel. The tube is longitudinally wrapped with PSP for added protection, and additional water-blocking materials are applied between the PSP and the tube to maintain a compact, watertight structure. Two parallel steel wires on both sides of the steel tape provide extra tensile strength. The cable is finished with a durable PE outer sheath.

Key Features

  • Excellent mechanical and temperature stability

  • Hydrolysis-resistant PBT loose tube with enhanced strength

  • Water-blocking gel for reliable fiber protection

  • Strong crush resistance and flexible handling

  • PSP layer improves moisture protection

  • Dual steel wires increase tensile performance

  • Lightweight, small diameter, and easy to install



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black





Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8  78 1000/3000 1000/3000 10D/20D
14~24 10  90 1000/3000 1000/3000 10D/20D





Product Image

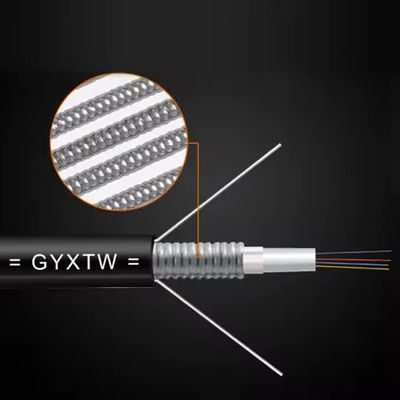

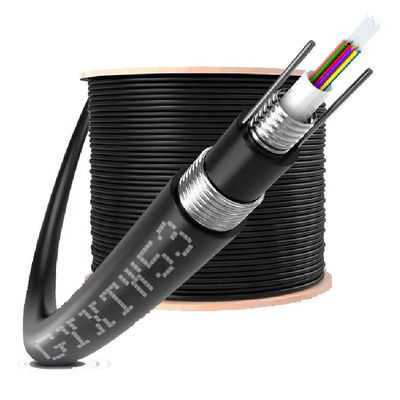

Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode 0



Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode 1



Application

Usable in Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃



Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days



Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode 2



Central Tube GYXTW Fiber Optic Cable 4 6 8 12 24 Core OD 6mm Outdoor Single Mode 3



FAQ

1. Are you a trading company or a manufacturer?
We are a direct manufacturer with 10+ years of experience in the R&D and production of fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, and you are welcome to visit anytime.



2. How is the product quality?
Every fiber is fully tested before shipment to ensure stable quality. After confirming the price, we can provide free samples for evaluation.



3. Do you accept small orders?
Yes, small orders are welcome. We support new projects and understand that business often starts with small quantities.



4. What is your delivery time?
Generally 3–7 working days depending on order quantity. We will arrange production and shipment as soon as payment is received.



5. Do you offer OEM service?
Yes, OEM is available. We can print your logo and customize products according to your requirements.
