ASU80 Single Loose Tube Self Supporting Fiber Optic Cable FTTH Aerial Outdoor Communication

ASU80 Self Supporting Single Loose Tube Fiber Optic Cable

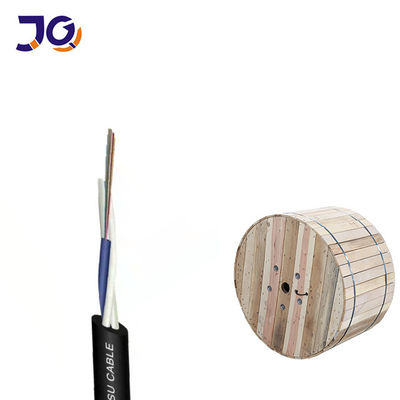

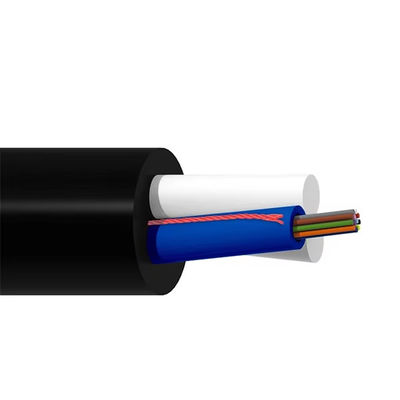

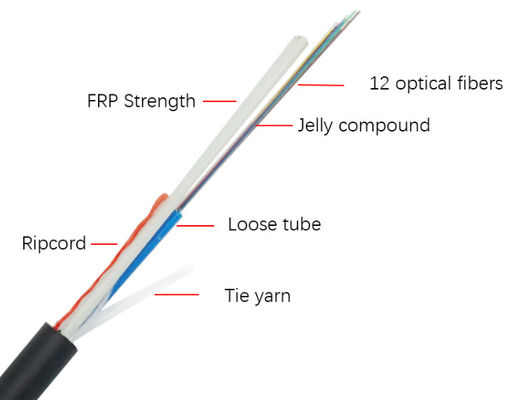

ASU80 is a non armored self supporting uni tube fiber optic cable. The optical fibers are placed in a loose buffer tube. The cable core is filled with jelly to prevent water intrusion and migration and is covered with a black polyethylene outer jacket. Two embedded FRP or metallic strength members provide the required tensile strength for aerial installation.

Features

• Small size and light weight design for easy handling and installation

• Two FRP strength members provide excellent tensile performance

• Gel filled or gel free structure ensures reliable waterproof performance

• Low cost with high fiber capacity

• Stable performance for outdoor communication networks

Applications

• Short span aerial installation

• Duct installation

• FTTH and access network deployment

Optical Characteristics

Technical parameter

Real Factory

FAQ – ASU80 Self Supporting Single Loose Tube Fiber Optic Cable

1 What is ASU80 fiber optic cable

ASU80 is a non armored self supporting single loose tube fiber optic cable designed for short span aerial and duct installation.

2 What applications is ASU80 suitable for

It is mainly used in FTTH access networks short span aerial lines and duct installation.

3 Is ASU80 cable armored

No ASU80 is a non armored cable with FRP or metallic strength members for tensile support.

4 Is the cable gel filled

Both gel filled and gel free structures are available with good waterproof performance.

5 What fiber types are supported

Single mode fibers such as G652D G657A1 and G657A2 are supported.

6 Can the cable be customized

Yes fiber count jacket material printing and OEM service can be customized.
