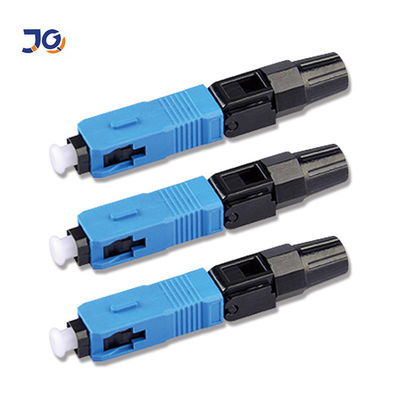

SC/UPC APC SM MM Fiber Optic Connector For CATV

Minimum Order Quantity :	100pcs	Packaging Details :	package carton
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	SC/UPC SC/APC

Detail Information
Oem:	Available	Weight:	3g
Temperature:	-40℃to 75℃	Color:	OEM
Application:	FTTH FTTB FTTX Network	Return Loss:	< -45db
Repeatability Test:	IL≤0.2dB RL≤5dB	Insert Loss:	Less 0.25db
Highlight:	SM MM Fiber Optic Connector , CATV Fiber Optic Connector

Product Description

Product Features
1 Alignment in the inner bore of the ceramic ferrule - high precision alignment
2.C-shaped groove takes the palce of V-shaped groove.
3.Ceramic has low thermal coefficient of expansion - working temperature is ranging from -40 ℃ to +85 ℃
4.Ceramic has high rigidity - connection point without deformation
5. Ceramic has good property—long lifetime
6. Easy assembly and high one-time assembly success rate
7.High lifetime, easy assembly, high reliability and high return loss
8. The quick assembly fiber connector can be assembled and disassembled for many times.
9.Super high one-time assembly success rate
10. The SC fast connector is made of special material. Fibers alignment is done in the inner bore of the ceramic ferrule and
fibers are locked by the locker.

Application
1.CATV
2. Active device termination
3. Telecommunication networks
4.Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9.Wide Area Networks(WANs)

Parameters	Specifications
Connector Type	SC/LC/FC/ST
Dimension	60mm
Cable Diameters	0.9/2.0/3.0mm
Fiber Mode	SM/MM
Grinding end-face	UPC/APC
Insertion Loss	UPC	APC
	≤0.3dB	≤0.3dB
Return Loss	UPC	APC
	≥45dB	≥50dB
Tension Test	≥100N
Operating Temperature	-40℃~+75℃

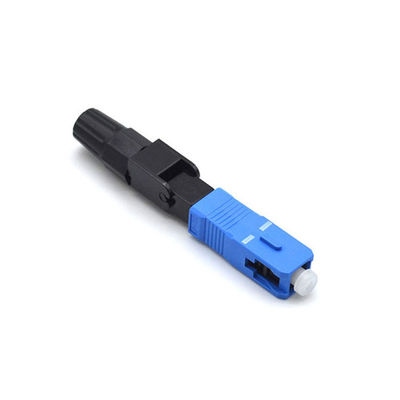

SC/UPC SC/APC optical fiber single mode fast connector for FTTH drop cable
Size(CM)	6044.524.5
QTY(PCS/Box)	1000
N.W(KG/BOX)	5.6
G.W(KG/Box)	8.5

SC/UPC APC SM MM Fiber Optic Connector For CATV 1

COMPANY PROFILE

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
