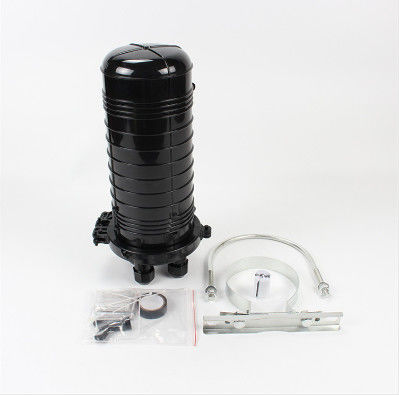

Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type

Minimum Order Quantity : 1 piece Packaging Details : Wooden Drum
Delivery Time : 2days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 8000 kilometers per month
Place of Origin: Guangdong,China Brand Name: JQ/OEM
Certification: CE/ISO9001 Model Number: Optical cable joint box

Detail Information

Model Number: Joint Closure Place Of Origin: Guangdong, China
Application: Telecommunications Oem: Available
Brand Name: JQ/Haiso/OEM Operating Temperature: -40℃- +60℃
Color: Black Warranty: 2years
Package: 6PCS/Carton Box
High Light:

dome Optical cable joint box


Mechanically sealed Optical cable joint box

Product Description

Product Description:

The optical cable splice box belongs to the mechanical pressure sealed joint system, and is a connection protection device that provides optical, sealing and mechanical strength continuity between adjacent optical cables.

Widely used in communication, network system, CATV cable TV, cable network system and so on.

Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type 0

Technical characteristics:

Can be used for single core, ribbon cable. It can be raised, hung on walls and held poles. Tensile sealing: 2000N axial tension, no air leakage. Voltage resistance: 15KV(DC). Tensile seal: After the product is inflated, it can withstand 2000N axial tension without air leakage. Impact seal: After the product is inflated, it can withstand the impact energy of 16N*m (Newton *m) three times, and the product has no cracks and no air leakage. After sealing, it can be opened and used repeatedly if the sealing material does not change. All other performance requirements meet the YD/T814-1996 standard.


Working environment:
Ambient temperature: -45℃-+80℃ Relative humidity: ≤ 85% (+30℃) Protection class (EN60529) : IP54, IP58. Product weight: 2KG
Cable connection box configuration list:

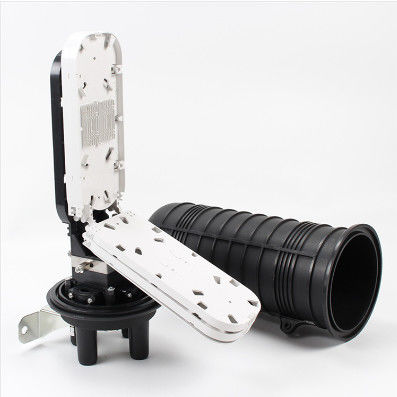

1. Cover shell; 2, optical fiber welding disc;
3. Press the hoop tightly; 4, sealing with silicone rubber;
5, overhead hanging equipment and other components.

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

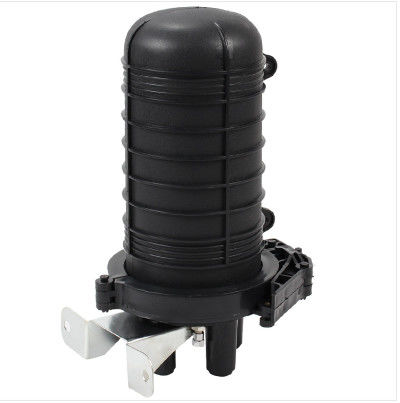

Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type 1Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type 2

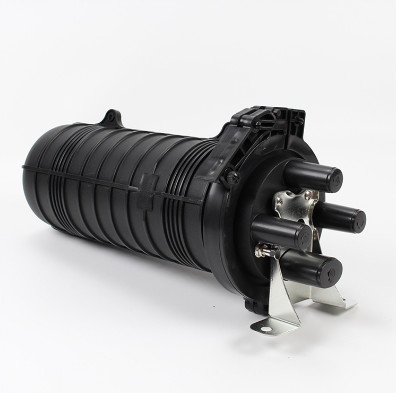

Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type 3

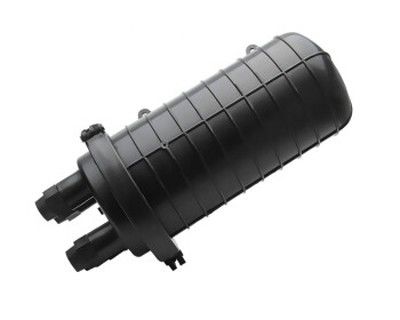

Optical Cable Joint Box Mechanically Sealed Connection Box Dome Type 4


1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
We Support OEM and Customize products.
