OEM Quick Assembly SC APC Fiber Optic Connector

Product Details:
Place of Origin: CHINA
Brand Name: jiqian
Certification: ISO
Model Number: SC/UPC SC/APC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: package carton
Delivery Time: 2-4day
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100km per 2 day

Detail Information

Oem: Available Color: OEM
Application: FTTH FTTB FTTX Network Product Name: Fiber Optic Adapter
Insertion Loss: < 0.2DB Color: Blue Green
Channels Number: Simplex,Duplex
High Light:

0.2DB Fiber Optic Connector

,

OEM SC APC Fiber Optic Connector

Product Description

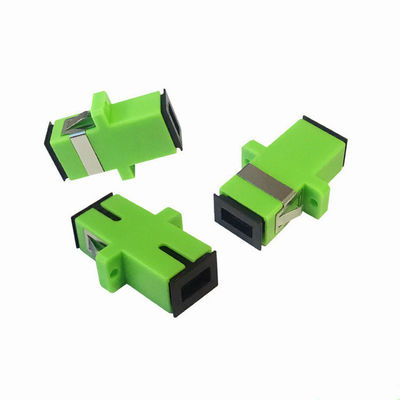

SC APC Fiber Optic Adapter Simplex Single Mode FTTH Field Quick Assembly Connector

Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules together.It is used to provide a cable to cable fiber connection.

SC-APC fiber adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, thatholds the two ferrules together. SC-APC fiber optic adapters are flange type in plastic housing; Single mode adapters are withCeramic sleeve while multimode fiber adapters are with bronze sleeve.

Features
1, UPC or APC Optional
2, SM or MM Optional
3, With/Without flange Optional
4, Simplex , Duplex or Quad Optional
5, Zirconia Sleeve ,Compact design
6, Low insertional loss, High return loss
7, High precision of mechanical dimensions
8, High reliability & stability

Products Description
OEM Quick Assembly SC APC Fiber Optic Connector 0
OEM Quick Assembly SC APC Fiber Optic Connector 1


Technical Data
Parameter for adaptor
Parameter
Unit
Description
SM/PC
SM/APC
MM
Sleeve

Zirconia
Zirconia
Phosphor Bronze
Operation Wavelength
nm
1310 or 1550
850
Insertion Loss
dB
0.2
0.2
0.2
Connection Durability
Times
1000 Mating
Operating Temperature
(°C)
-40~+80
Storage Temperature
(°C)
-40~+85
Relative Humidity
%
95

OEM Quick Assembly SC APC Fiber Optic Connector 2


OEM Quick Assembly SC APC Fiber Optic Connector 3
