Name: Simplex Duplex SC/UPC SC/APC SM Fiber Optic Adapter
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: Fiber Optic Adapter
Price: 0.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Feature: Low Insertion Loss Value

Wave Length: 1310/1550nm

Product Name: SC/UPC Single Mode Duplex Fiber Optic Adapter

Type: Single Mode

Application: FTTH FTTB FTTX Network

Storage Temperature: -40℃~+75℃

Housing Material: Metal Or Plastic Housing

Warranty: 3 Years

Color: Green,blue

Highlight:

1310nm Fiber Optic Cable Adapter

1550nm Fiber Optic Cable Adapter

1550nm fiber optic couplers

Basic Infomation

Place of Origin: Guangzhou China

Brand Name: JQ/OEM

Certification: ISO9001

Model Number: Fiber Optic Adapter

Payment & Shipping Terms

Packaging Details: Cartoon box

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300PCS per day

Gallery

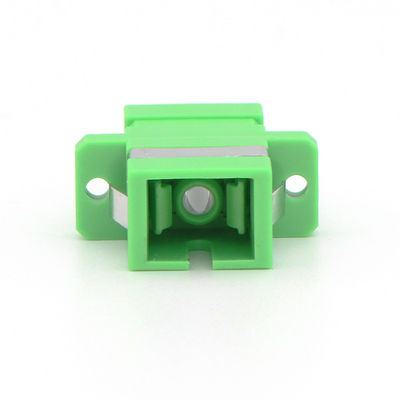

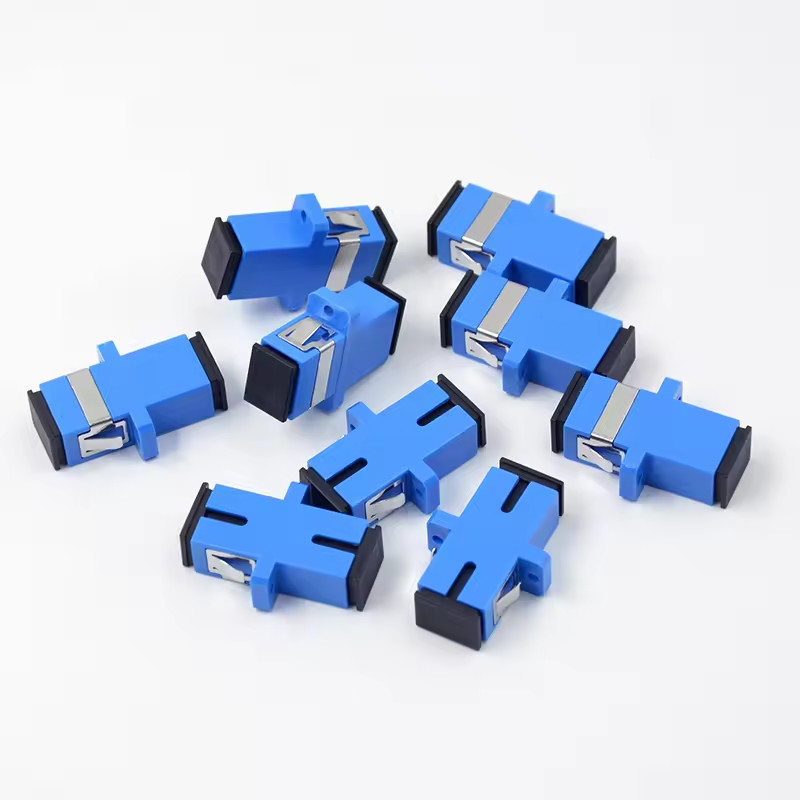

Simplex Duplex SC/UPC SC/APC SM Fiber Optic Adapter

Product Description

Simplex Duplex SC/UPC SC/APC SM Fiber Optic Adapter

Ordering Information
Such as:SC/UPC-SC/UPC-SM-SX

Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal

Specification

Type	SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB)	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB)	≤0.2dB
Temperature Range	-40°C-+85°C
Material of sleeve	Zirconia or Bronze

Reliability testing

Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB

Feature

Low insertional loss and back reflection loss

Type: SC/UPC,SC/APC

Mode: Singlemode

Fiber core: Simplex, Duplex

Structure: with flange, without flange

Sleeve: Ceramic sleeve

Housing: Plastic housing

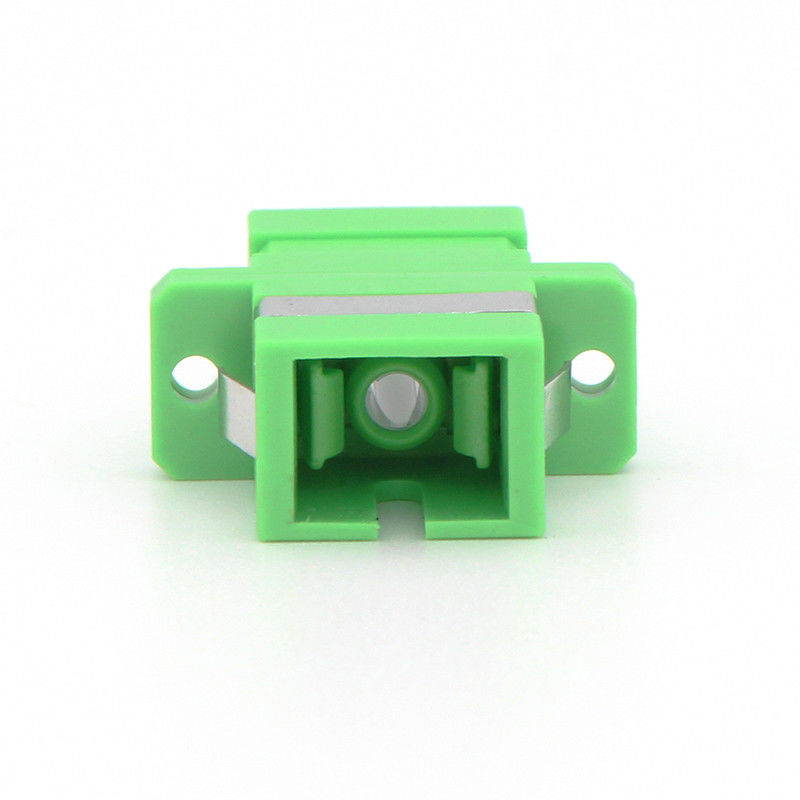

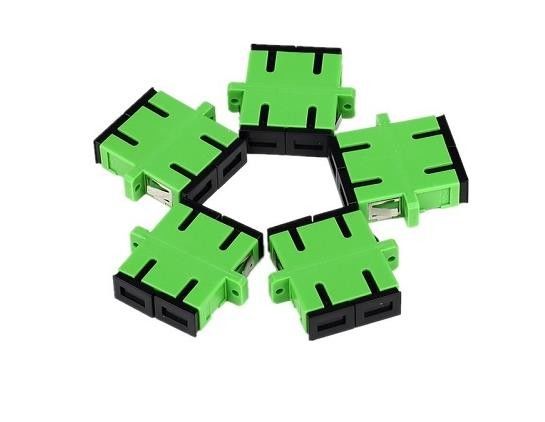

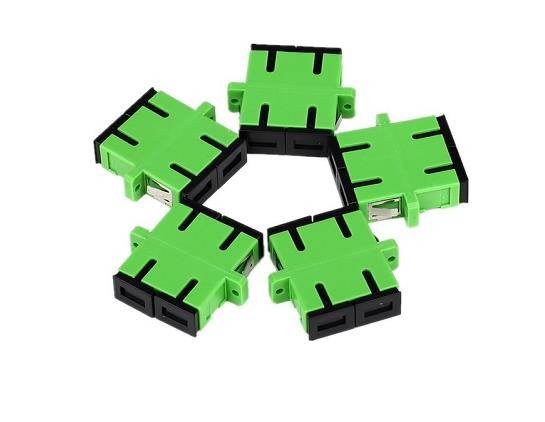

Adapter Picture

Packing&Delivery

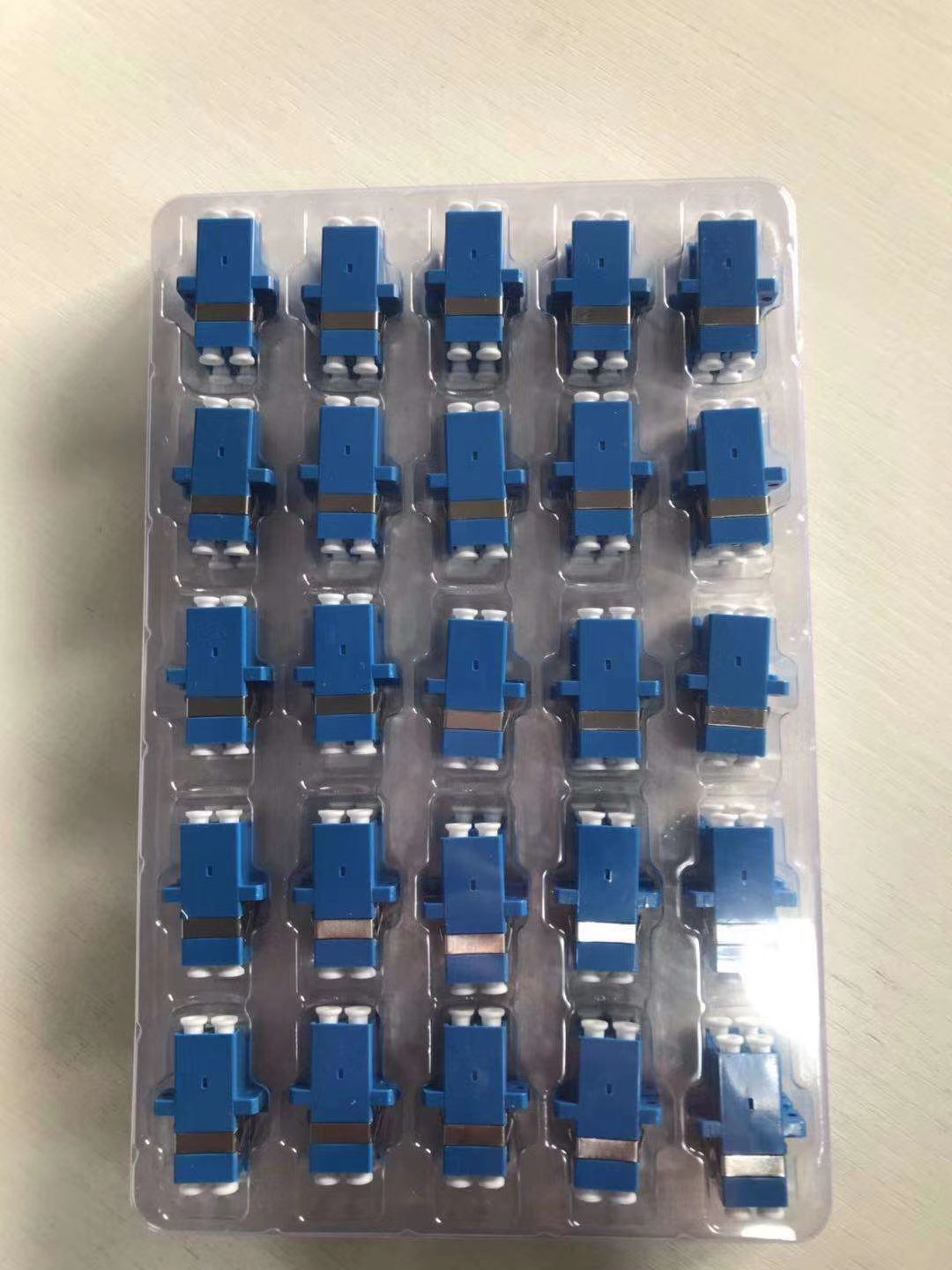

25pcs per PE bag with stick label (we could add customer's logo in the label.)

Why choose us :
1.Competitive price

	2. Fast delivery

	3.Free sample provided

	4.Longtime warranty

	5.Reliable quality, OEM service available

	6. Professional product and technical support

	7.Prompt answer for any question or inquiry

	8.Value-added service: except good products, we can provide good services on logistic and other help you may need
We Support OEM and Customize products

Welcome to your inquiry! Welcome to visit our factory!
Contact me at +86 18122384553 to get free sample.
