LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer

1000m
MOQ
LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer
Features Gallery Product Description Request A Quote
Features
Specifications
Material: LSZH /PVC
Fiber Type: G657A1/G657A2
Colour: Black Or White
Size: 2.0MM*3.0MM
Packing: 2KM~5KM/reel
Fiber Brand: YOFC
Application: Network Or FTTH
Number Of Conductors: 1 Or 2 Or 4 Or 6 Or 8 Or 12
Certification: ISO9001,CE,ISO,ROHS
Application: FTTH
Highlight:

PVC Jacket FTTH Fiber Optic Drop Cable

,

3km/Drum FTTH Fiber Optic Drop Cable

,

3km/Drum indoor drop cable
Basic Infomation
Place of Origin: Guangdong CHINA
Brand Name: jiqian/OEM
Certification: ISO9001/CE/ROHS
Model Number: GYJXCH GJYXFCH
Payment & Shipping Terms
Packaging Details: package carton
Delivery Time: 2-4day
Payment Terms: Western Union, T/T, L/C
Supply Ability: 200km per day
Product Description

G657A1 G652D Single Mode FTTH Indoor LSZH Drop Cable GJXH FTTH Fiber Optic Drop Cable





FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.

Product Description

FTTH DROP CABLE
MODEL: GJXCH-4B6a1
Fiber: SM G657A1
Fiber Count: 4
Parallel Wire: 0.45mm *2
Messenger Wire: 1.0mm
Jacket Material: LSZH
Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.30dB Return Loss: ≥50dB
Durability: ≤0.2dB
Test Wavelength: 1310/1550nm
Operation temperature: -40℃~ 85℃

product feature:

Part Number
Self-supporting Drop Cable GJXCH
Fiber Count
2 core (1 core, 4 core also)
Strength Member
One self-supporting 1.0mm steel wire and Two parallel 0.45mm steel wire
Cable Dimension (WxH approx.)
(2.0±0.2)x(5.0±0.2)mm
Out Jacket
LSZH
Out Jacket color
black or white
Application
FTTH cable (Fiber to the home), used indoor, Access network

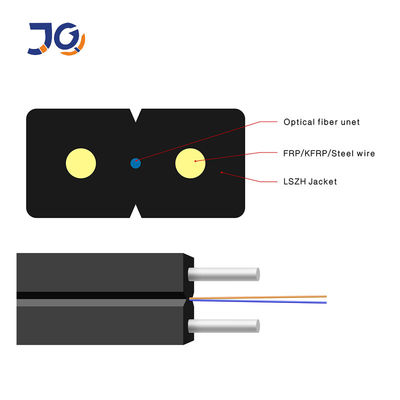

Cable structure :

 LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer 0



LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer 1

LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer 2

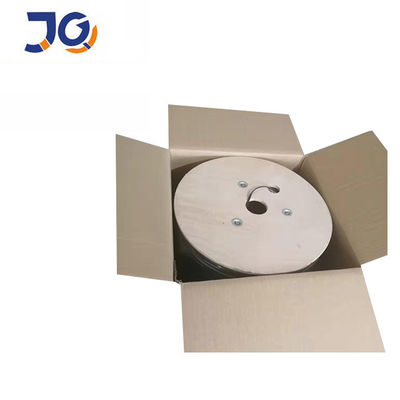

 Packing & Delivery

 LSZH Jacket 2km/Drum FTTH Fiber Optic Drop Cable manufacturer 3






FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!



2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available


3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.


4.What about Payment?


L/C,T/T,Western Union and Paypal are acceptable.


5.Delivery time?

Generally 3-7 working days, also it is according to qty.



6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
