Home /Products/FTTH Fiber Optic Drop Cable/GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network

GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network

1km
MOQ
GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Manufactuer: Yes
Type: Drop Cable GJXH
Fiber Type: G657A1/A2/G652D/G657A1/G657A2
Jacket: LSZH PVC
Oem: Available
Central Strength Member: FRP Strength Member,steel Wire Strength Member
Weight: 10-20kg/km
Highlight:

2 core FTTH fiber optic cable

,

indoor fiber drop cable G657A2

,

LSZH PVC fiber optic cable
Basic Infomation
Place of Origin: China
Brand Name: JQ/OEM/Customize
Certification: ISO 9001,ROHS CE-EMC FCC SDOC
Model Number: GJXH-2B6
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

2 Core Indoor FTTH GJXH Drop Cable G657A2 LSZH Flame Retardant Jacket

Key Features

  • Designed for FTTH Fiber to the Home access networks

  • Dual parallel steel wires provide stable tensile strength and easy installation

  • LSZH sheath with low smoke and halogen free safety performance

  • Compact structure with good flexibility for indoor wiring

  • Black or white jacket options for different installation environments

Applications

  • FTTH indoor drop connections from distribution box to user terminal

  • Residential apartments and home broadband networks

  • Indoor fiber routing in corridors walls and risers

  • Telecom access networks and last mile fiber deployment

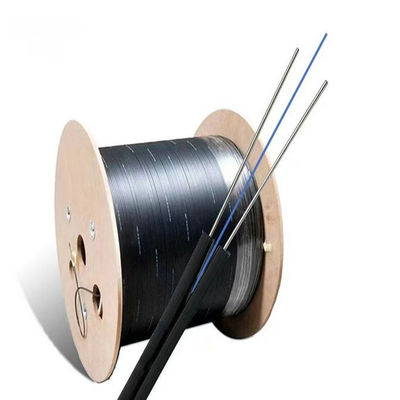

Indoor Drop Cable Single Mode 1 / 2 / 4 Core FTTH Drop Cable



Single-mode optical fiber (G657A1)
Dual dielectric FRP strength members or parallel steel wires
Optical fibers are placed between two FRP/KFRP rods or steel wires
Finished with a black or white LSZH outer sheath





Fiber Optical

Item
Unit
Specification
G. 657A
Mode field diameter
1310nm
mm
8.6 ± 0.4
Cladding diameter
mm
125.0 ± 0.7
Cladding non-circularity
%
≤1.0
Core concentricity error
mm
≤0.5
Coating diameter
mm
245 ± 5
Coating/cladding concentricity error
mm
≤12
Cable cut-off wavelength
nm
≤ 1260
Attenuation Coefficient
1310nm
dB/km
≤0.35
1550nm
dB/km
≤0.21
Macro-bend loss (1 turn,7.5mm radius)
1550nm
dB/km
≤0.5
1625nm
dB/km
≤1.0
Proof stress level
kpsi
≥100





Technical parameters



Product
Model		 Fiber
Count
(core)		 Cable Diameter(mm) Cable Weight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)

Crush

Resistance
Long/ShortTerm(N)

 Bending
Radius
Static/Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30

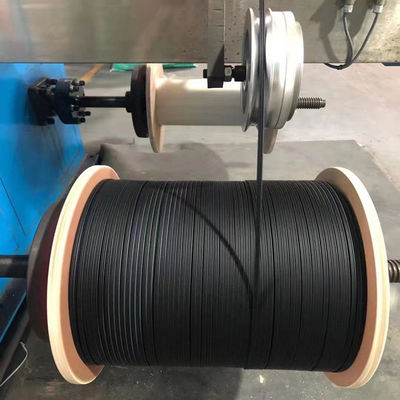

GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 0
Related Products
GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 1




Package



Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box



GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 2

GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 3

GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 4

GJXH 2 Core FTTH Indoor Fiber Optic Drop Cable G657A2 PVC LSZH for Home Network 5





Lead time:
Quantity(km)
Samples
1-100km
100-500km
Earliest time
1days
3-5 work days
5-7 work days





FAQ



Q1: Are you a factory or a trading company?
A: We are a direct manufacturer.



Q2: What is your MOQ?
A: The minimum order quantity for fiber optic cable is 1 km.



Q3: Which fiber brands do you use?
A: YOFC, FiberHome, and equivalent brands.



Q4: Do you accept small orders?
A: Yes. Trial and small orders are supported for new projects.



Q5: What is the delivery time?
A: Usually 5–7 working days, depending on order quantity.



Q6: Can you provide customized products and logos?
A: Yes. OEM service is available.



Q7: What payment terms do you accept?
A: T/T, L/C, and Western Union with 30% deposit and 70% before shipment.
