Product Description
Armored Duct Aerial Uni-tube 12 Core Fiber Cable
Outdoor Armored Duct Aerial Uni-tube 12 Core Fiber Cable

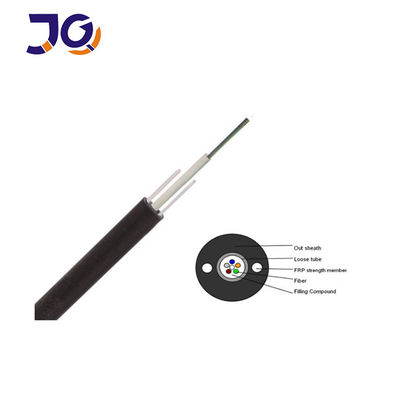

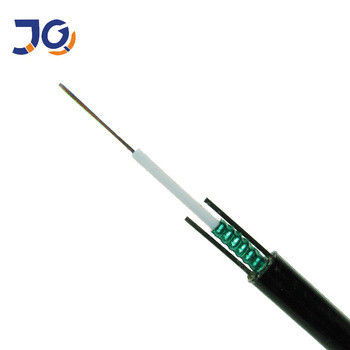

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Product Characteristics
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
| Item |
Specification |
| Fiber type |
Single mode |
| Fiber material |
Doped silica |
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm |
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km |
| Point discontinuity |
≤ 0.05 dB |
| Cable cut-off wavelength |
≤ 1260 nm |
| Zero-dispersion wavelength |
1300 ~ 1324 nm |
| Zero-dispersion slope |
≤0.092 ps/(nm².km) |
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm |
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km) |
| PMD |
≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm |
(8.6~9.5)±0.6 um |
| Core / Clad concentricity error |
≤0.6 um |
| Cladding diameter |
125.0 ± 1 um |
| Cladding non-circularity |
≤1.0% |
| Primary coating diameter |
245 ± 10 um |
| Proof test level |
100 kpsi (=0.69 Gpa), 1% |
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
