OEM Aerial Duct Fiber Optic Cable GYFTY G652D 12 48 Core FRP Strength Member

4 km
MOQ
OEM Aerial Duct Fiber Optic Cable GYFTY G652D 12 48 Core FRP Strength Member
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Brand: YOFC/Fiberhome/ Corning
Color: Black Or Orange
Jacket Metarial: PE,HDPE/LSZH/AT
Strength Member: FRP(with PE If Needed)
Fiber Count: 4-144cores
Installation: Aerial & Duct
Drum Length: 2/3KM Or Customized
Product Name: GYFTY Outdoor Fiber Cable
Highlight:

OEM aerial fiber optic cable GYFTY

,

48 core fiber optic cable FRP

,

G652D aerial duct cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/ Customized
Certification: ISO9001, FCC, ROHS/CCC/FCC
Model Number: GYFTY-12/24/48F
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200KM Per day
Product Description

Aerial Duct GYFTY G652D 12–48 Core Fiber Optic Cable with FRP Strength Member

Features

  • Lightweight and easy to install

  • Strong mechanical and temperature resistance

  • Low signal loss and stable transmission

  • Gel-filled tubes protect fibers from moisture

  • Non-metallic FRP core prevents EMI interference

  • Water-blocking system for reliable outdoor use

Applications

  • Outdoor aerial and duct installation

  • Long-distance communication networks

  • FTTH, LAN, and data transmission systems




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















 1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500

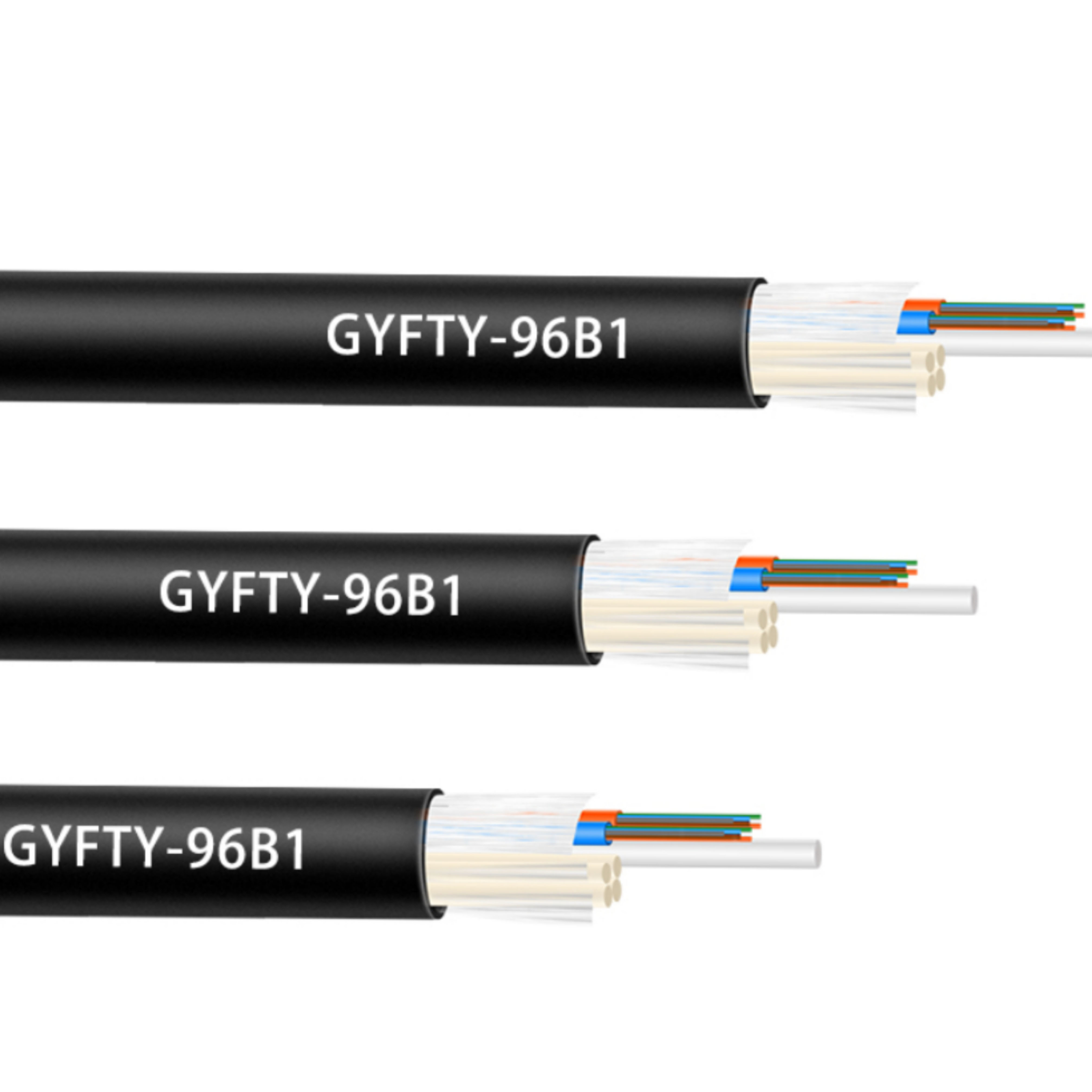

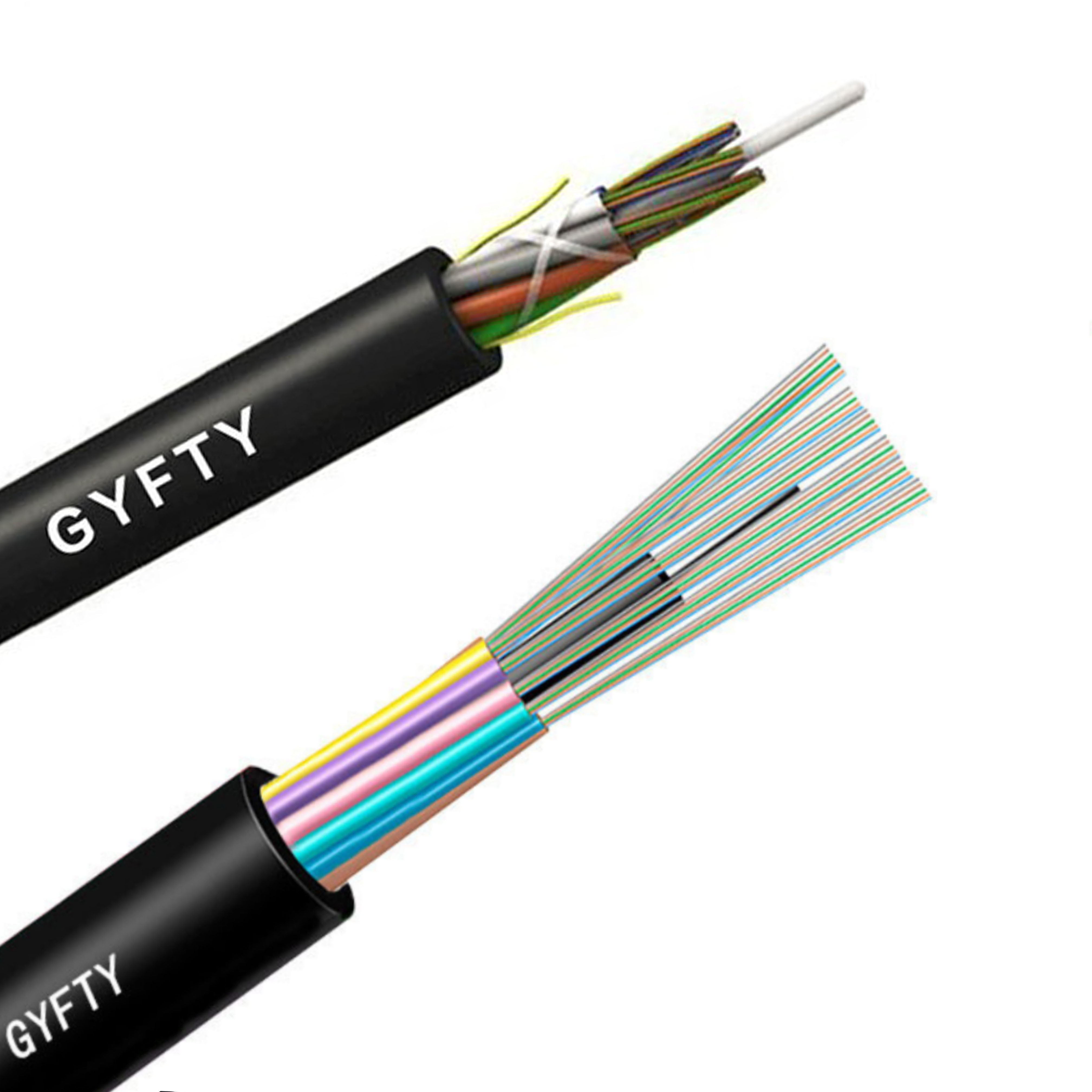

Detail product pictures

OEM Aerial Duct Fiber Optic Cable GYFTY G652D 12 48 Core FRP Strength Member 0



OEM Aerial Duct Fiber Optic Cable GYFTY G652D 12 48 Core FRP Strength Member 1

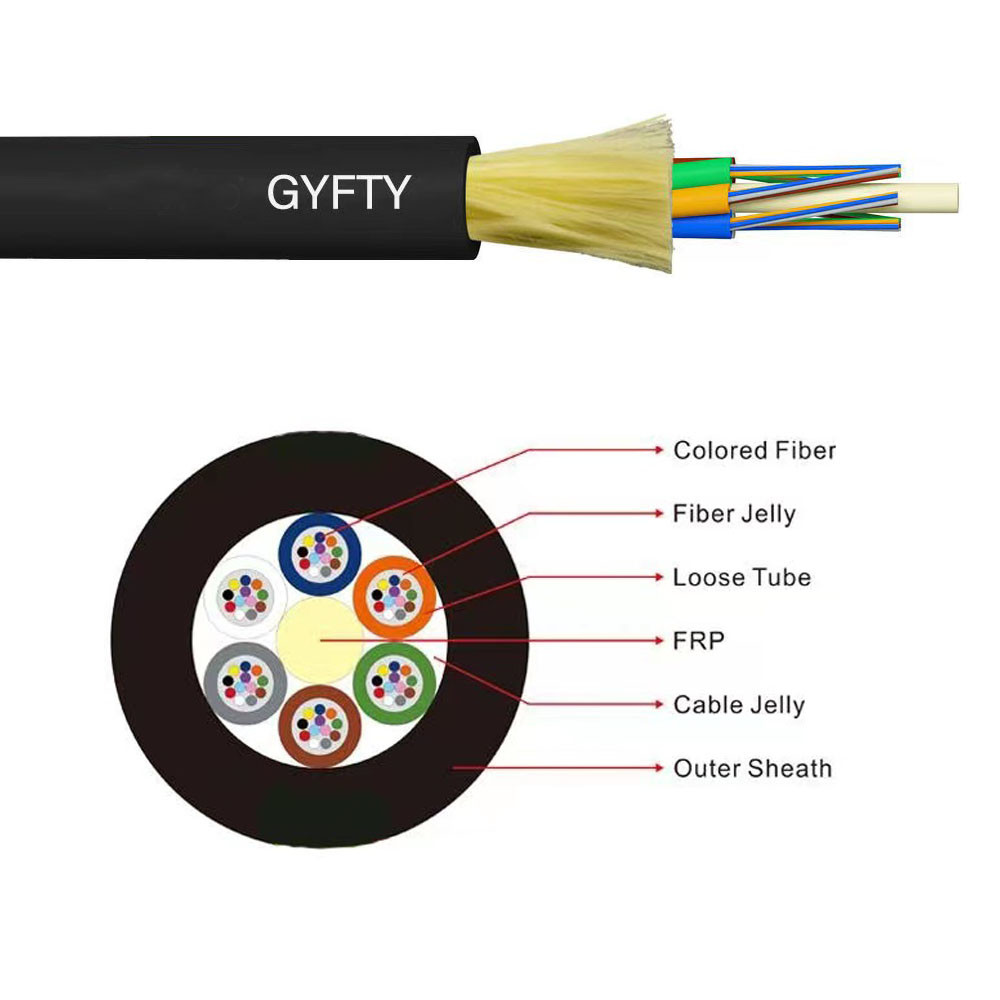

                                   Picture shows about the GYFTY-48 C

FAQ

  1. Are you a factory or trading company?
    Yes, we are a professional manufacturer of fiber optic cables, MPO breakout cables, and patch cords, exporting worldwide.

  2. What are your main products?
    Outdoor/indoor fiber cables, FTTH drop cables, ADSS cables, and SC/LC/FC/ST/MPO patch cords.

  3. What is the warranty period?
    20-year warranty for all fiber optic cables.

  4. Do you have material certifications?
    Yes, we use ISO9001 and RoHS certified raw materials from trusted suppliers.
