12 Core fiber optic cable outdoor G652D G657A overhead armored fibre optical cable GYXTW
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Detail Information |
|||
Cable Brand: | Jiqian | Place Of Origin: | Guangzhou,China |
---|---|---|---|
Number Of Conductors:: | 12 Cores | Application: | Duct/aerial |
Armoured: | Yes | Fiber Type: | Fiberhome/YOFC |
Suitable Temperature: | -40+60 | Certification: | ISO 9001/CE/ROHS/FCC |
Manufacturer: | Yes | ||
Highlight: | ROHS 12 Core Fiber Cable,Armored 12 Core Fiber Cable |
Product Description
Armored Duct Aerial Uni-tube 12 Core Fiber Cable
Outdoor Armored Duct Aerial Uni-tube 12 Core Fiber Cable

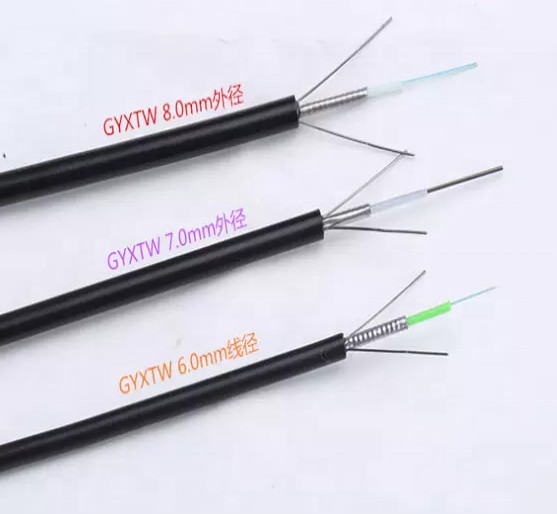

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Product Characteristics
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Performance of Cabled Optical Fiber
The performance of cabled optical fiber (ITU-T Rec. G.652D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
Point discontinuity | ≤ 0.05 dB |
Cable cut-off wavelength | ≤ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | ≤0.092 ps/(nm².km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
PMD | ≤0.2 ps/km½ |
Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
Core / Clad concentricity error | ≤0.6 um |
Cladding diameter | 125.0 ± 1 um |
Cladding non-circularity | ≤1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
