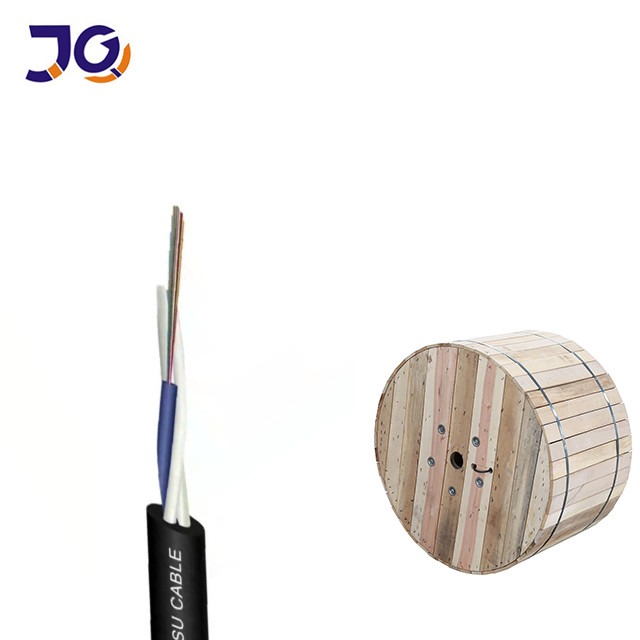

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor
Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor
Contact Now

Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor

Minimum Order Quantity : 2km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou,China Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: ASU Cable/GYFFY

Detail Information
Fiber Count: 4 8 12 24 Core Type: Aerial
Span Length: 80m Or 100m Fiber Model: G652D, G657A1, G657A2
Sheath: PE/MDPE/HDPE/LSZH/PVC Strength Member: FRP/KFRP
Sheath Color: Black Or Customize Fiber Brand: YOFC/Fiberhome/Fujikura/Corning
Highlight:

FRP aerial fiber optic cable

,

12 core ASU 80 drop cable

,

GYFFY FTTH outdoor cable

Product Description

Product Description

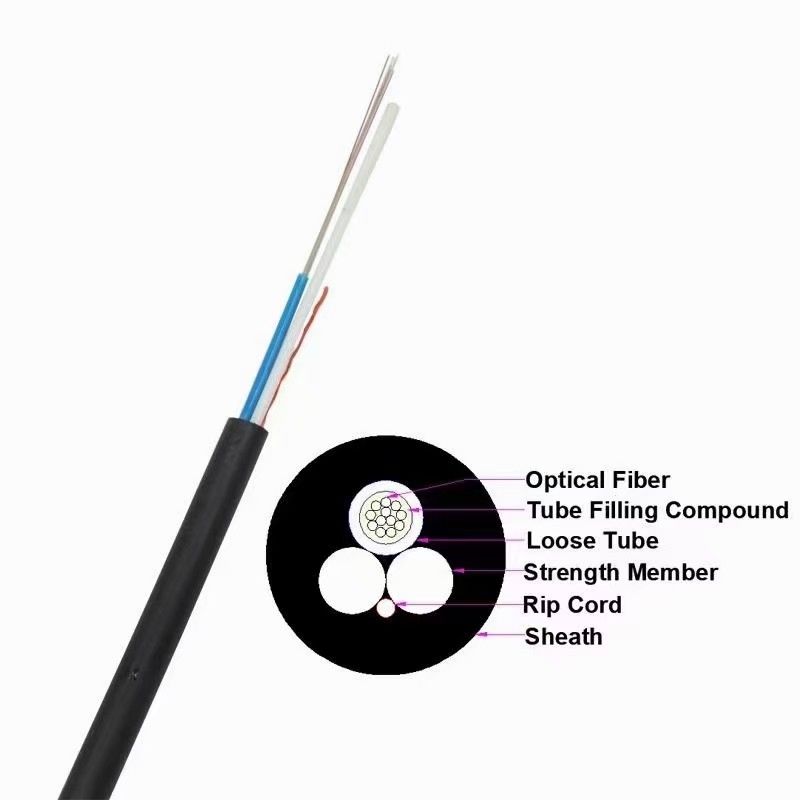

ASU cable uses a loose tube stranded structure. The 250μm fibers are placed in a high-modulus PBT loose tube. The tubes and fillers are stranded around a central FRP non-metallic strength member to form a compact core. The core is filled with waterproof gel and covered with a thin PE inner sheath.

Features

  • Small size and lightweight

  • Dual FRP strength members for high tensile performance

  • Optional gel filled or gel free design with strong waterproof protection

  • Low cost with high fiber capacity

  • Suitable for short span aerial installation and duct applications

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Technical parameter


Cable Core		 Unit 2F 4F 6F 8F 10F 12F
No. Of Tubes   1 1 1 1 1 1
No. Of fibers core 2 4 6 8 10 12
Fiber Counts in tube core 2 4 6 8 10 12
Cable Diameter mm 6.6±0.5 6.8±0.5
Cable Weight Kg/km 40±10 45±10
Allowable tensile Strength N Span=80,1.5*P
Allowable crush resistance N 1000N
Operation temperature ℃ -20℃ to +65℃



Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY FTTH Outdoor 0



FAQ

1. Are you a trading company or manufacturer?
We are a manufacturer with 10+ years of experience specializing in fiber optic cables, drop cables and patch cords. Our factory is located in Guangzhou and welcomes your visit.



2. How is the product quality?
All fibers are fully tested before delivery. Free samples are available for quality checking after price confirmation.



3. Do you accept small orders?
Yes, small orders are welcome. We support new projects and understand that business often starts small.



4. What is the delivery time?
Generally 3–7 working days depending on order quantity. We will arrange shipment as soon as payment is received.



5. Do you offer OEM service?
Yes, OEM is available. We can print your logo and support custom requirements.
