Name: Sheath Reinforcement KFRP Unit Tube Fiber Optic Cable With Glass Yarn
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYFXTY-12B1
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Type: Single Mode G652D

Jacket Material: PE

Strength Member: Glass Yarn

Cable Diameter: 5.5mm Or 6.3mm

Color: Black

Storage/Operation: -40℃~+70℃

Application: Aerial

Fiber Count: 2/4/6/8/12 Core

Type: Fiber Optic Cable With Glass Yarn

Length: 2km Or Customized Length

Sheath Reinforcement: FRP KFRP

Highlight:

KFRP Fiber Optic Cable

Sheath Reinforcement Fiber Optic Cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GYFXTY-12B1

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4500KM Per Month

Gallery

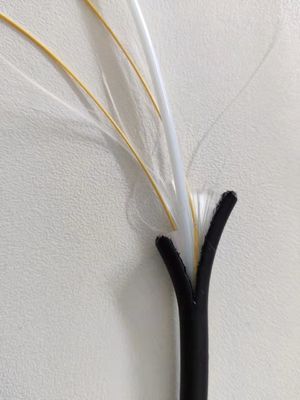

Sheath Reinforcement KFRP Unit Tube Fiber Optic Cable With Glass Yarn

Product Description

Sheath Reinforcement FRP KFRP Unit Tube G652D Fiber Optic Cable With Glass Yarn

Features

Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.

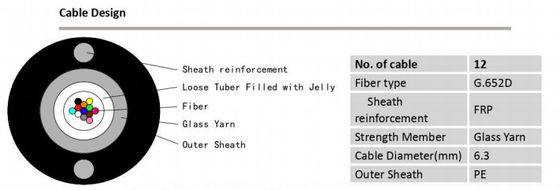

Sheath Reinforcement KFRP Unit Tube Fiber Optic Cable With Glass Yarn 0

Optical Characteristics

G.652

G.655

50/125μm

62.5/125μm

Attenuation(+20C)

@850nm

≤3.0dB/km

@1300nm

≤1.0dB/km

@1310nm

≤036dB/km

≤0.40dB/km

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth(ClassA)

@850nm

≤2500MHz-km

≥2200MHz.km

@1300nm

≤1000MHz.km

≥2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.15NA

CableCut-off Wavelength

≤1260m

≤1480nm

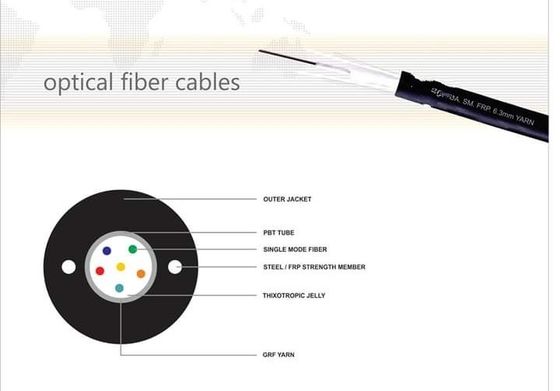

Structure and Technical Specification OF GYFXTY

Technical parameter

Sheath reinforcement	Material	mm	FRP
Sheath reinforcement	Diameter (±0.05mm)	mm	1.0
Loose Tube	Material	mm	PBT
	Diameter (±0.05mm)		2.0
	Thickness (±0.03mm)		0.32
Outer Sheath	Material	mm	PE
	Thickness (±0.05mm)		1.8(nominal)
	color		black
Cable Weight(110.0kg/km)		kg/km	30.6
Max Tensile Load	Short Term	N	1000
Max Tensile Load	Long Term	N	500
Crush Resistance	short Term	N/100 mm	≤1000
Crush Resistance	Long Term	N/100 mm	≤300
ttenuation	1310nm	dB/km	≤0.35
ttenuation	1550nm	dB/km	≤0.21
Min.bending radius	Without Tension	mm	10.0xCable-
Min.bending radius	Under Maximum Tension	mm	20.0×Cable-
Temperature range c℃)	lnstallation	c	-20~+60
	Transport&Storage		-40~+70
	peration		-40~+70

Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;

Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Sheath Reinforcement KFRP Unit Tube Fiber Optic Cable With Glass Yarn 3
