4 Core FTTH Fiber Optic Drop Cable G657A2 Color coated

1km
MOQ
4 Core FTTH Fiber Optic Drop Cable G657A2 Color coated
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Number Of Conductors: 1/2/4
Application: Outdoor Aerial
Fiber Type: G652D/G657A1/G657A2
Certification: ISO 9001/CE/FCC/ROHS
Manufacturer: Yes
Outer Sheath: LSZH
Fiber Brand: Fiberhome/YOFC
Highlight:

FCC 4 core ftth cable

,

FCC FTTH Fiber Optic Drop Cable

,

G657A2 4 core ftth cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO 9001 CE FCC ROHS
Model Number: GJYXCH/GJYFXCH
Payment & Shipping Terms
Packaging Details: Wooden drum
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500 per month
Product Description

Optical Fiber Cable 1 Core 2 Core 4 Core Single Mode 3 Steel Wire Fibra Optica Cable

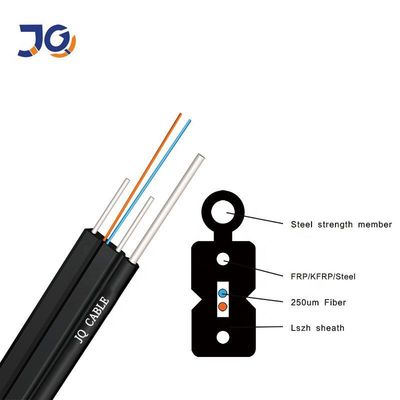

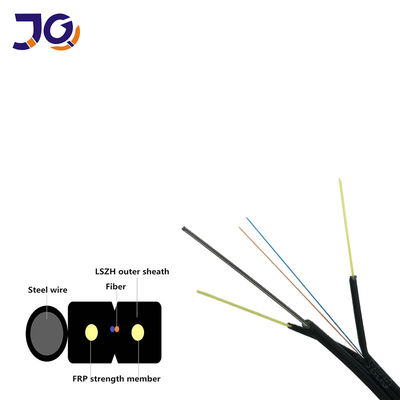

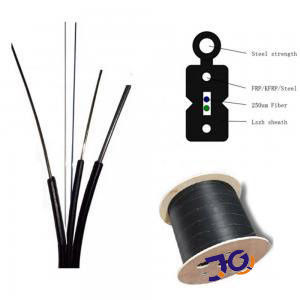

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.
4 Core FTTH Fiber Optic Drop Cable G657A2 Color coated 0
Technical parameters: FTTH Drop Cable GJYXCH/GJXH/GJYFXCH
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)
Crush Resistance(N/100MM)
Bending Radius(mm)
Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GJXFH-1Xn
(2.0±0.1)*( 3.0±0.1)
7.5
200
100
1000
500
20D
15D
GJXFH-2Xn
(2.0±0.1)*( 3.0±0.1)
7.5
200
100
1000
500
20D
15D
GJXFH-3Xn
(2.0±0.1)*( 3.0±0.1)
7.5
200
100
1000
500
20D
15D
GJXFH-4Xn
(2.0±0.1)*( 3.0±0.1)
7.5
200
100
1000
500
20D
15D
Storage/Working temperature(℃)
-20~+60
Cable type
OD(mm)
NominalWeight(kg/km)
tensile strength(N)
Crush Resistance(N/100MM)
Bending Radius(mm)
Short-term
Long-term
Short-term
Long-term
Dynamic
Static
GJYXFCH-1Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-2Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-3Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
GJYXFCH-4Xn
(2.0±0.1)*( 6.2±0.3)
23.6
600
300
2200
1000
20D
15D
Storage/Working temperature(℃)
-20~+60

Packing:

4 Core FTTH Fiber Optic Drop Cable G657A2 Color coated 1

Certification:

4 Core FTTH Fiber Optic Drop Cable G657A2 Color coated 2

FAQ



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
