Jiqian Overhead Outdoor 48 Core Fig 8 Fiber Optical Cable Self Supporting Armored Figure 8 Fiber Optic Cable GYTC8S
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30KM Per days |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYTA-36B1 |
|
Detail Information |
|||
| Fiber Type: | G652D | Color: | Black |
|---|---|---|---|
| Jacket: | PE | Strength Member: | Steel Wire |
| Fiber Count: | 2-144cores | Length: | 2km Or Customized Length |
| Installation: | Aerial & Duct | Oem: | Available |
| Type: | Singlemode & Multimode | Model: | GYTA-36core |
| High Light: | G652D 36 Core Fiber Optic Cable,GYTA-36B1 36 Core Fiber Optic Cable,GYTA-36B1 single mode outdoor fiber cable |
||
Product Description
36 Core G652D Fiber Aluminum Stranded Armored Outdoor Single Mode Fiber Optic Cable
Product Description

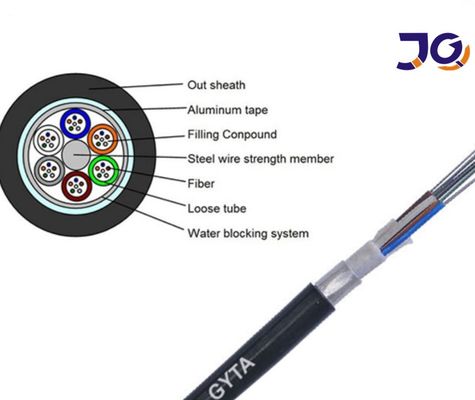

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Which is stranded loose tube fiber optic cable with compact structure, the cable jacket is made of polyethylene, High strength loose tube that is hydrolysis resistant; Cable filling materials ensure high reliability,Aluminum tape makes the cable crush resistant and moisture proof. So,the GYTA has a very good watertight performance.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Application
Used for duct or aerial applications.
Used for long communication and LANS installation
Suitable for the situation of high requirements of moisture resistance.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
|
Fiber Count (Core) |
Out sheath Diameter (mm) |
Weight (KG/KM) |
Min.allowable tensile strength(N) |
Min.allowable crush load(N/100m) |
Min. bending radius (mm) |
Suitable Temperature (c) |
|||
|
Short term |
Long term |
Short term |
Long term |
short term |
Long term |
|
|||
|
24 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
36 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
42 |
10.5 |
105 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
48 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40～+60 |
|
60 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
72 |
12.0 |
150 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
96 |
12.5 |
165 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
|
144 |
14.0 |
180 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40~+60 |
Product show
