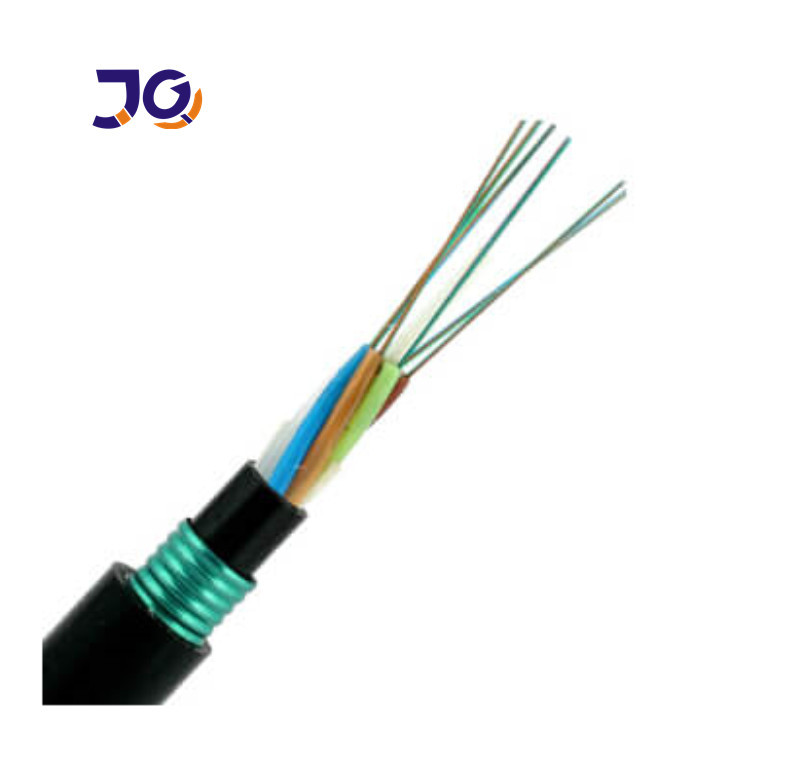

Non-Metal GYFTY53 Stranded Water-Blocking Fiber Optic Cable
Non-Metal GYFTY53 Stranded Water-Blocking Fiber Optic Cable Non-Metal GYFTY53 Stranded Water-Blocking Fiber Optic Cable
Contact Now

Non-Metal GYFTY53 Stranded Water-Blocking Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Place of Origin: Guangzhou,China Brand Name: JQ/OEM
Certification: ISO9001 Model Number: GYFTY53-48B1

Detail Information
Fiber Count: 2-288 Cores Fiber Type: Single Mode/multi Mode
Jacket: PE Color: Black
Product Name: Outdoor Fiber Optic Cable Model Number: GYFTY53-48 Core
Structure: Loose Tube Installation: Aerial Or Duct
Strength Member: FRP Oem: Available
Highlight:

GYFTY53 Outdoor Fiber Optic Cable

,

GYFTY53 outdoor optical fiber cable

,

GYFTY53 48 core fiber optic cable

Product Description

Non-Metal GYFTY53 Stranded Water-Blocking Fiber Optic Cable



The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* Crush resistance and flexibility
* The following measures are taken to ensure the cable watertight:
* Single Fiber Reinforced Plastic as the central strength member
* Loose tube filling compound
* 100% cable core filling
* PSP enhancing moisture-proof
* Water-blocking material

Application

1. Direct burial

2. Underground

3. Backbone Internet



Optical Characteristics











G.652D



50/125um



625/125μm



Attenuation



@850nm







≤3.0dB/km



≤3.0dB/km



(+20°C)



@1300nm







≤1.0dB/km



≤1.0dB/km







@1310nm



≤0.36dB/km















@1550nm



≤0.22dB/km











Bandwidth(ClassA)



@850nm







2500MHzkm



2200MHz:km







@1300nm







21000MHz-km



2600MHzkm



NumericalAperture











0.200+0.015NA



0.275+0.015NA



CableCut-

offWavelengthλcc







≤1260nm















Technical Data



Fiber count



Nominal

Diameter(mm)



Nominal

weight(kg/km)



Max

Fibers per

Tube



No.of

(Tube+fillers)



AllowableTensile Load

(N/100mm)



Allowable Crush

Resistance(N/100mm)



short

Term



long

term



short

Term



long term



2~36



10.2



125



12



6



3000



1000



3000



1000



36~72



15.1



212



12



6



3000



1000



3000



1000



74~96



16.3



246



12



8



3000



1000



3000



1000



    98~120



17.8



288



12



10



3000



1000



3000



1000



   122~144



19.4



336



12



12



3000



1000



3000



1000



>144



Design according to the customer request





Performance
Item Parameters



Loose tube

 Material PBT
Color All colors display
Filler Material PE
Color Black
CSM Material FRP
Inner jacket Material HDPE
Color Black
Outer armoured Material Plastic coated steel strip
Outer jacket Material HDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Short term 1500N
Crush Short term 3000N/100mm
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
