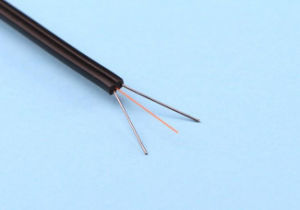

Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable

1KM
MOQ
Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G657A1/G657A2/G652D
Fiber Count: 1/2/4 Core
Jacket Material: LSZH/PVC
Application: FTTH FTTB FTTX Network
Attenuation(max): ≤0.36dB /KM(1310nm)
Product Name: FTTH Indoor Cable
Certification: ISO9001
Strength Member: FRP/Steel Wire
Color: White/black
Oem: Available
Highlight:

JGXH FTTH Fiber Optic Drop Cable

,

FTTB FTTH Fiber Optic Drop Cable

,

JGXH ftth optical fiber cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001
Model Number: GJXH/GJXFH
Payment & Shipping Terms
Packaging Details: wooden package or cartoon box
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30KM Per day
Product Description

G657A1 G652D Single Mode FTTH Indoor LSZH Drop Cable GJXH GJXFH FTTH Fiber Optic Drop Cable



Features

High tensile of steel wire meet the requirement of self-supporting and reducing the installation cost.
Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke zero halogen and flame retardant sheath
Compliant with Telcordia GR-326-CORE specification



GJXFH







Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable 0

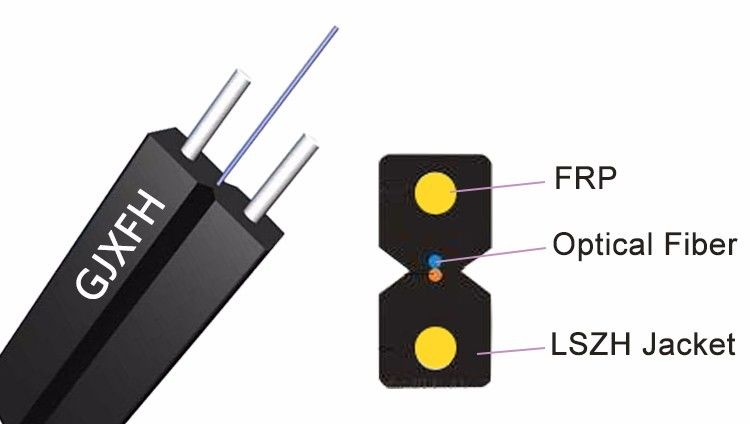

Product detail of GJXH

Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable 1





Technical parameters

Product
Model		 Fiber
Count
(core)		 CableDiameter(mm) CableWeight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)		 Crush
Resistance
Long/Short
Term(N)		 Bending
Radius
Static/
Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30





Package

Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable 2



Single Mode LSZH GJXH FTTX FTTB FTTH Fiber Optic Drop Cable 3



FAQ

1.Are you trading company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
