G652D G657A Indoor Drop Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
Minimum Order Quantity : | 1KM | Packaging Details : | wooden package or cartoon box |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100KM Per day |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 | Model Number: | GJYXCH |
Detail Information |
|||
Fiber Count: | 1/2/4 Core | Jacket Color: | Black,White,as Request |
---|---|---|---|
Jacket Material: | LSZH/PVC | Messenger Wire: | 1.0mm Steel Wire |
Application: | FTTH FTTB FTTX Network | Attenuation(max): | ≤0.36dB /KM(1310nm) |
Strength Member: | FRP/KFRP/Steel Wire | Fiber: | YOFC,or As Request |
Weight: | 20kgs/km | Length: | 1km Or 2km |
Highlight: | G652D 4 Core Drop Cable,1.0mm Steel Wire 4 Core Drop Cable,1.0mm Steel Wire outdoor drop cable |
Product Description
Outdoor Self-Supporting G657A Or G652D 1 2 4 Core Ftth Fiber Drop Cable

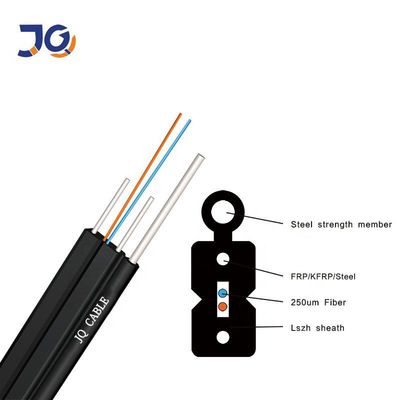

Features
1, High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.
2, Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
3, Novel flute design, easily strip and splice, simplify the installation and maintenance
4, Low smoke zero halogen and flame retardant sheath
5, (2.0±0.2)x(5.0±0.2)mm
6, Compliant with Telcordia GR-326-CORE specification
Product detail
Technical parameters
Product Model |
Fiber Count (core) |
CableDiameter(mm) | CableWeight (kg/km) |
Tensile Strength Long/Short Term(N) |
Crush Resistance Long/Short Term(N) |
Bending Radius Static/ Dynamic |
GJXH | 1 | (2.1+0.1)*(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
GJXH | 2 | (2.1+0.1)x(3.1+0.1) | 10 | 1000/2200 | 200/1000 | 15/30 |
GJXH | 4 | (2.3+0.1)*(3.3+0.1) | 12 | 1000/2200 | 200/1000 | |15/30 |
GJXFH | 1 | (2.1+0.1)x<(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
GJXFH | 2 | (2.1+0.1)x(3.1+0.1) | 9 | 800/1800 | 200/1000 | 15/30 |
GJXFH | 4 | (2.1+0.1)x(3.1+0.1) | 11 | 800/1800 | 200/1000 | 15/30 |
GJYXCH | 1 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
GJYXCH | 2 | (2.1+0.1)*(5.1+0.1) | 21 | 1500/2500 | 500/1300 | |15/30 |
GJYXCH | 4 | (2.1+0.1)x(5.1+0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 1 | (2.1+0.1)*(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 2 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |
GJYXFCH | 4 | (2.1+0.1)x(5.1+0.1) | 20 | 1500/2500 | 500/1300 | 15/30 |

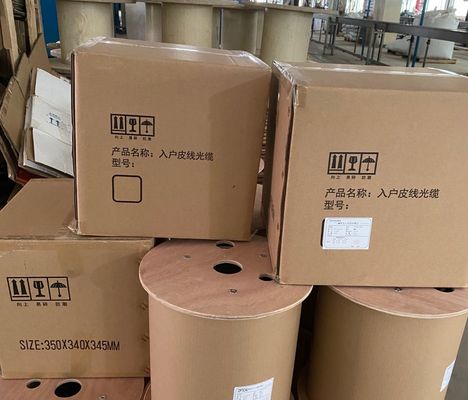

Package
Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box
