12 16 24 48 core Fiber Optic Cable GYTA53 Direct burial Double Sheath and Armored Outdoor Optical Fiber Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | GYTA53 |
|
Detail Information |
|||
| Number Of Conductors: | 48 | Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 |
|---|---|---|---|
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Cable Diameter:: | 9.6mm | Oem: | Available |
| Application: | Direct Bury | ||
| Highlight: | 9.6mm 2000m/Roll Outdoor Optical Fiber Cable,Dia9.6mm 48Cores Outdoor Optical Fiber Cable,9.6mm 2000m/Roll 48 core fiber optic cable |
||
Product Description
Brand
| Jiqian |
Optical Fiber Type | Singel Mode G652D or G657A1 |
Jacket Material | PVC or PE |
Fiber Count | 4,6,8,12,24,36,48,72,96,144 |
Jacket Color | Black |
Strength Member | 1.0mm Messenger Steel Wire or FRP |
Cable Diameter | 9.6mm |
Length | 2000m per roll or customized |
Gross Weight | 90 kgs |

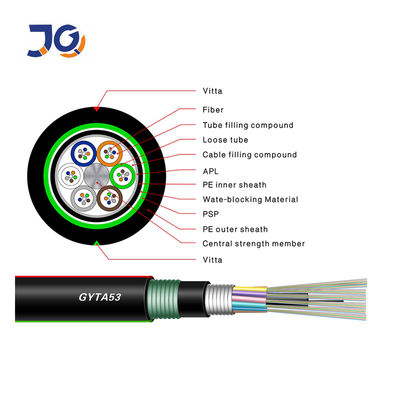

Product functions and features | The structure of GYTA53 layer stranded 53 cable is to embed 250um fiber into a loose sleeve made of high modulus material, and fill the loose sleeve tube with waterproof compound. At the center of the cable core is a metal reinforcing core. For some fiber optic cables, the metal reinforcing core needs to be extruded with a layer of polyethylene. The loose casing and filling line are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking filler. Double coated plastic steel strip longitudinally wrapped and extruded polyethylene sheathed cable.
|
No. of cable | 12 | 24 | 48 | ||
Fiber Model | G.652D | ||||
Design (StrengthMember+Tube&Filler) | 1+5 | ||||
Central Strength Member | Material | Steel Wire | |||
Diameter(±0.5)mm | 1.4 | ||||
Loose Tube | Material | PBT | |||
Diameter(±0.06)mm | 1.72 | 1.72 | 2.0 | ||
Thickness(±0.03)mm | 0.30 | 0.30 | 0.32 | ||
The Max.Core NO./Tube | 6 | 6 | 12 | ||
Filler Rope | Material | LDPE | |||
Diameter(±0.06)mm | 1.7 | 1.7 | 2.0 | ||
NO. | 3 | 1 | 1 | ||
Moisture Barrier | Material | Polymer Coated Aluminum Tape | |||
Thickness(±0.03)mm | 0.20 | ||||
Inner Sheath | Material | MDPE | |||
Thickness(±0.2)mm | 0.9 | ||||
Armoring | Material | Polymer Coated Steel Tape | |||
Thickness(±0.2)mm | 0.22 | ||||
Water Bloaking Layer | Material | Filling Compound | |||
Outer Sheath | Material | MDPE | |||
Thickness(±0.2)mm | 1.8 | ||||
Cable Diameter(±0.5)mm | 12.5 | 12.5 | 13.1 | ||
Cable Weight(±10)kg/km | 152 | 167 | 167 | ||
Attenuation | 1310nm | 0.35dB/ km | |||
1550nm | 0.21dB/ km | ||||
Min. bending radius | Without Tension | 12.5×Cable-φ | |||
Under Maximum Tension | 25.0×Cable-φ | ||||
Temperature range (℃) | Installation | -20~+60 | |||
Transport&Storage | -40~+70 | ||||
Operation | -40~+70 | ||||
Feature:
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
