GYTS 24core Duct Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553

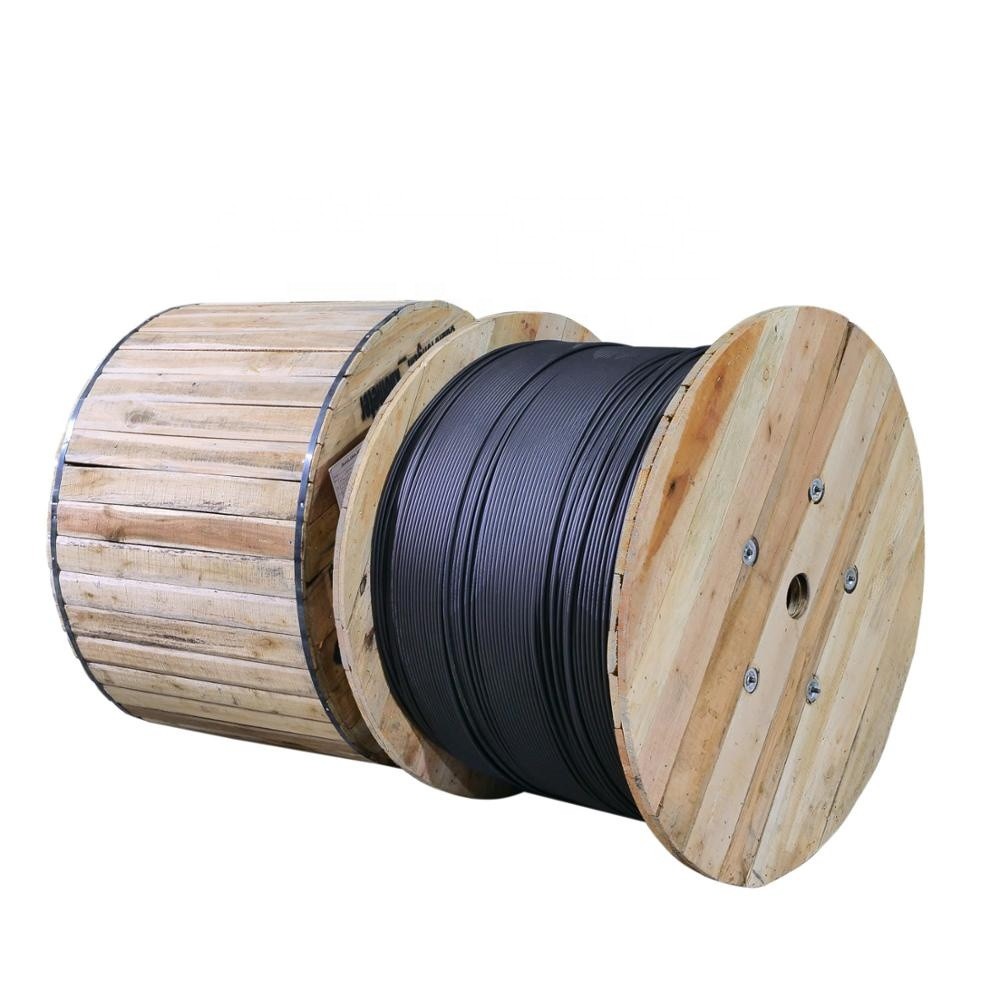

| Minimum Order Quantity : | 1000m | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | GYTS |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Aerial/duct | Number Of Conductors: | 72 96 |

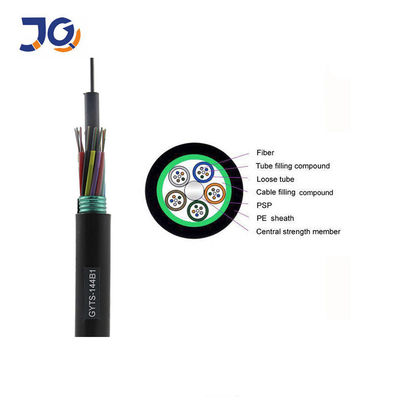

| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| High Light: | 72 conductors 1310nm Duct Fiber Optic Cable,G652D Duct Fiber Optic Cable,G652D GYTS outdoor armored fiber optic cable |
||
Product Description
| MFD(1310nm) | 9.2mm±0.4mm |
| MFD(1550nm) | 10.4mm±0.8mm |
| Cladding diameter | 125mm±1.0mm |
| Fiber diameter | 250 ± 15 mm (Colored) |
| Core/cladding concentricity error | £0.6mm |
| MFD concentricity error | £0.8mm |
| Cladding non circularity | £1.0% |
| Cut off wavelength | £1260nm |
| Attenuation coefficient | 1310nm: £0.35dB/km |
| 1550nm: £0.21dB/km | |
| Bending-loss performance of optical fiber | £0.05dB |
| Polarization mode dispersion | £0.1ps/Ökm |
| Zero-dispersion wavelength | 1300 – 1324 nm |
| Zero-dispersion slope | £0.092ps/(nm2•km) |
| Tensile strength | 1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33% |
| Crush | 1000N/100mm, conform to IEC 60794-1-E3 |
| Impact | conform to IEC 60794-1-E4 |
| Repeated bending | conform to IEC 60794-1-E6 |
| Torsion | conform to IEC 60794-1-E7 |
| Flexing | conform to IEC 60794-1-E8 |
| Kink | conform to IEC 60794-1-E10 |
| Cable bend | conform to IEC 60794-1-E11 |
| Temperature cycling test | conform to IEC 60794-1-F1 |
| Water penetration | conform to IEC 60794-1-F5B |
| Spark test voltage | Spark test voltage of cable outer jacket will be no less than 8kV AC |
Feature:
1.Good performance under mechanical stress.

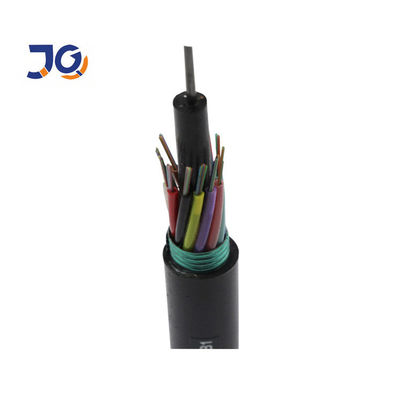

2.Loose tube gel-filled construction for superior fiber protection.
3.Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also 4.reinforces the crush resistance of fiber optical cable.
5.UV and waterproof design.
