12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH
12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH
Contact Now

12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 30km per day
Place of Origin: Guangzhou,China Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: GYFTY-48B1.3

Detail Information
Fiber Count: 4-144 Cores Fiber Type: Single Mode G652D/G657A1
Jacket: PE,MDPE,LSZH,PVC,HDPE Color: Black Or Orange Or Customized

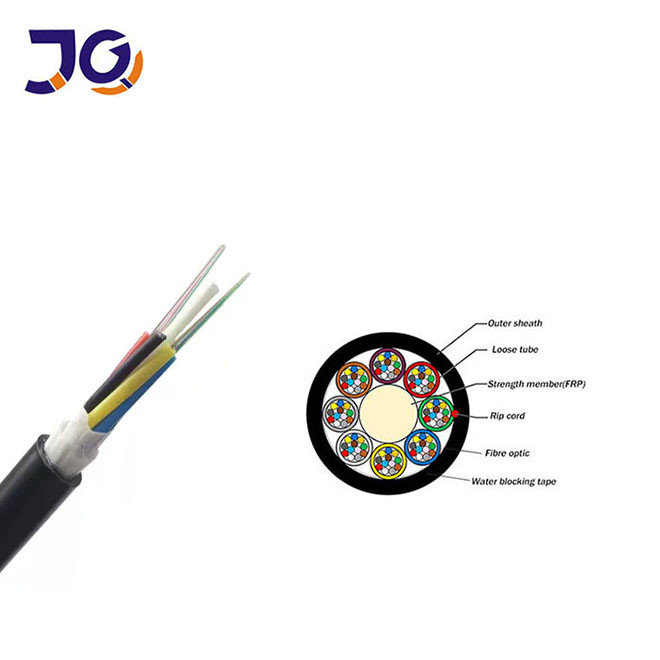

Product Name: Non-armored Duct Fiber Optic Cable Structure: Stranding Loose Tube SZ
Installation: Aerial & Duct Strenght Member: FRP
Highlight:

GYFTY duct fiber optic cable

,

outdoor FTTH fiber optic cable

,

12 core non-armored fiber cable

Product Description

2-144 Cores GYFTY Non-armored Duct Fiber Optic Cable With Factory Price, Support OEM.

Key Features

  • Small diameter lightweight and soft for easy installation

  • Optimized structure with strong water blocking performance

  • FRP non metallic central strength member for high tensile strength

  • Excellent resistance to electromagnetic interference

  • Jelly filled loose tube design with PP filler for fiber protection

  • Water blocking tape and PE outer sheath for outdoor durability

Application

  • Aerial installation

  • Duct installation

Product Characteristics

  • Excellent mechanical strength and temperature stability

  • Reliable fiber protection for long term outdoor deployment

  • PE sheath provides strong UV resistance crush resistance and flexibility




Optical Characteristics



Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%



Cable Parameters

Items Specifications
Fiber Count 48fibers
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 2.0mm±0.2mm
Material FRP or steel wire
Outer Jacket Dimension 12.0mm±0.2mm
Material PE
Color Black

12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 0

12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 1

Cable Mark: Company logo  GYFTY-48B1.3  2024 0000M



12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 2

12 24 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor FTTH 3
