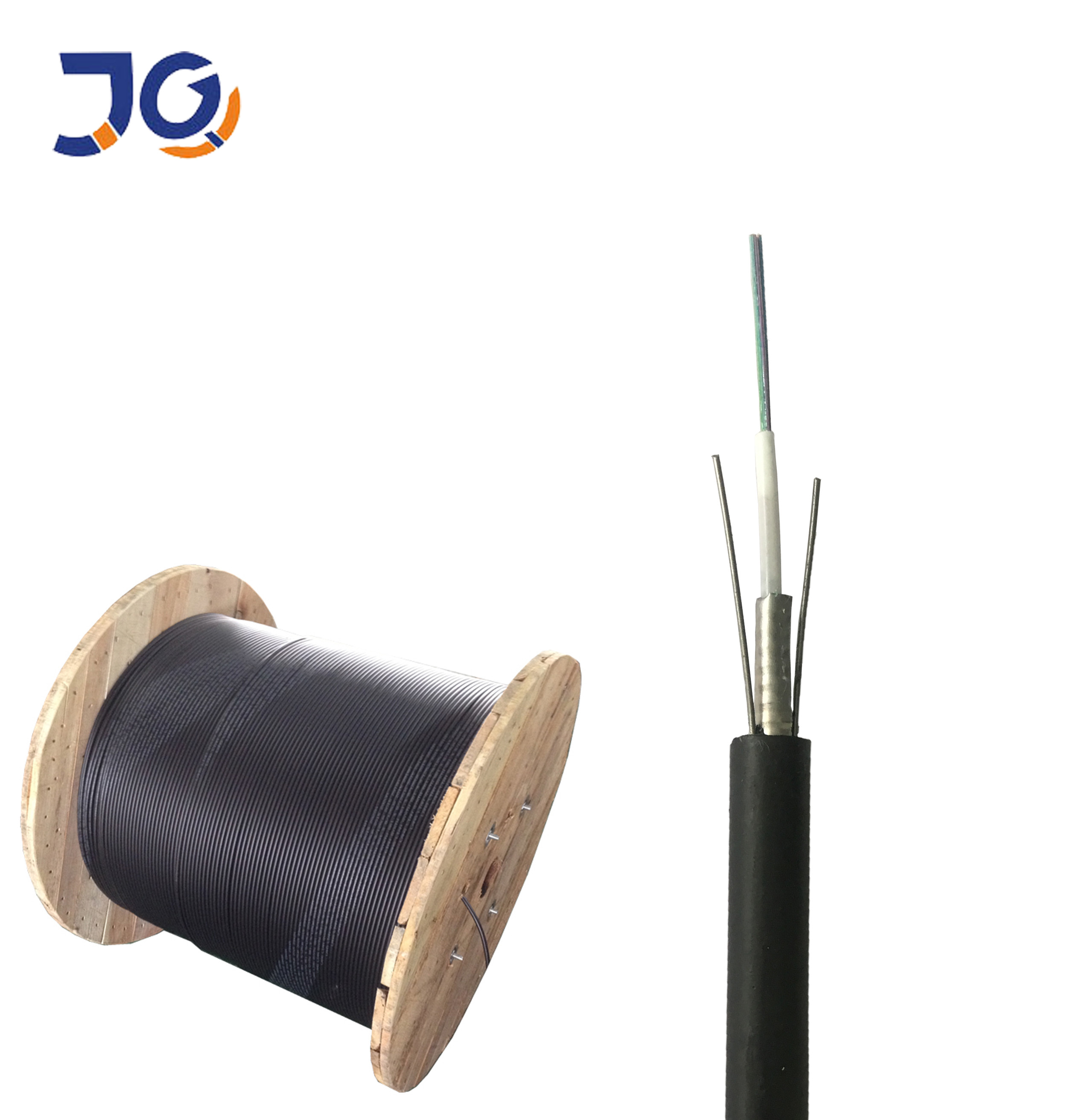

1MM Steel Wire Strength 2 4 8 12 24 Core Outdoor Fiber Optic Cable GYXTW
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | 1/2/3/4/5 km in one wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5dyas | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10000 Per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYXTW-8B1 |
|
Detail Information |
|||
| Jacket Material: | PE | Outer Diameter: | 6/7/8/9mm |
|---|---|---|---|
| Steel Wire: | 0.7/0.8/1.0mm | Color: | Black |
| Fiber Count: | 2/4/6/8/12/24 Core | Structure: | Unit Tube |
| Strength Member: | Two Steel Wire | Installation: | Aerial &Duct |
| Product Name: | Outdoor Optic Fiber Cable | Fiber Type: | YOFC Or As Request |
| Oem: | Available | ||
| High Light: | GYXTW 8Core Aerial Fiber Optic Cable,GYXTW 8Core aerial fibre cable,8Core GYXTW Fiber Optic Cable |
||
Product Description
Unit Loose Tube GYXTW 8 Core Aerial Armored Fiber Optic Outdoor Cable
Product Description

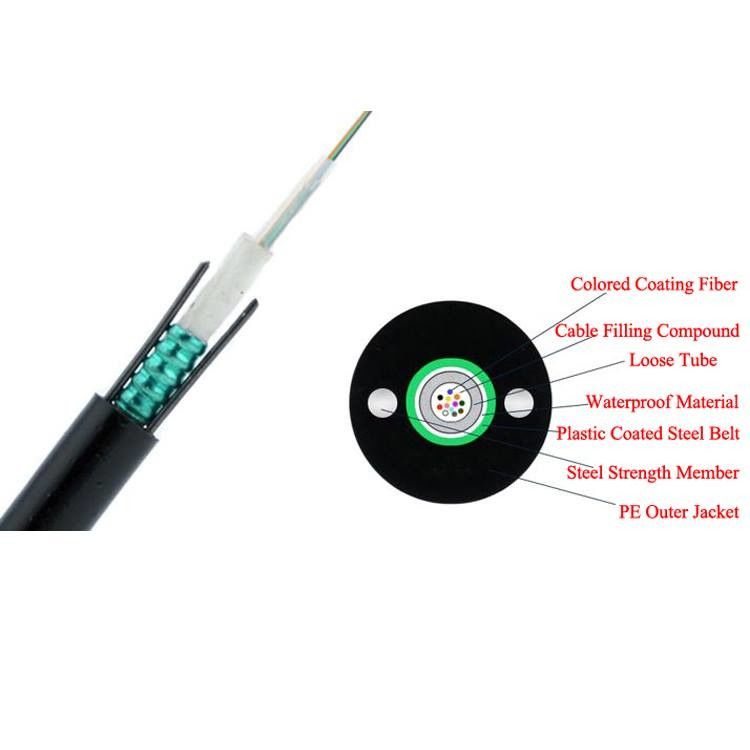

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |
Product Image
Application
Suitable for Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
