ISO9001 G.652 G.657 SC/APC Fiber Optic Pigtail

100 pieces
MOQ
ISO9001 G.652 G.657 SC/APC Fiber Optic Pigtail
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

G.652 G.657 Fiber Optic Pigtail

,

ISO9001 SC/APC Fiber Optic Pigtail

,

G.652 G.657 sm pigtail

Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001
Model Number: Fiber optic pigtail
Payment & Shipping Terms
Packaging Details: Outside:carton,inside:plastic bag
Delivery Time: 3-5 days,it depends on order quantity
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 50000 per month
Product Description

Fiber Optic Single Mode Simplex SC/APC Fiber Optic Pigtail





Feature

1.Low cost
2.Low Insertion Loss & PDL
3.High return loss (low amounts of reflection at the interface)
4.Factory-terminated and Tested
5.Ease of installation
6.Reliability
7.Low environmental sensitivity
8.Connector with Ceramic Ferrules



Application

• Apply for CATV, LAN, Telecom network, test equipment
• CATV
• Telecommunication networks
• Active device termination
• Metro
• Local Area Networks(LANs)
• Test equipment
• Premise installations

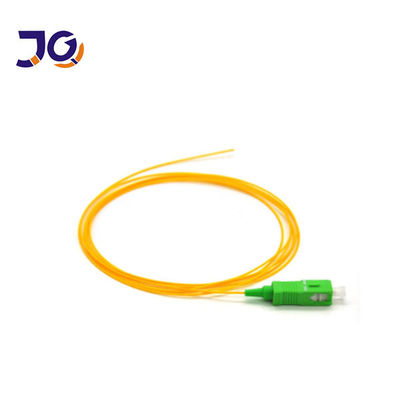

ISO9001 G.652 G.657 SC/APC Fiber Optic Pigtail 0

Specification

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657) MM(OM1/OM2/OM3/OM4/OM5)
Jacket Materials LSZH/OFNR/PVC
Connector Type FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Loss (dB) ≤0.25dB ≤0.3dB
TIA/EIA-455-107 (PC/UPC/APC) (PC/UPC)
Return Loss (dB) ≥50dB(PC/UPC) ≥40dB(PC/UPC)
TIA/EIA-455-107 ≥60dB(APC)
Exchange-ability ≤0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature (℃) -10 ~ +70
Storage Temperature (℃) -40 ~ +85
Package 1 pieces/bag

All values specified are with connectors





FAQ



1,Q:What is the MOQ?

A:100 pieces.



2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.



4.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
