Single Mode 2km Fig 8 FTTH Fiber Optic Drop Cable

Contact Now

Single Mode 2km Fig 8 FTTH Fiber Optic Drop Cable

Minimum Order Quantity :	1km	Packaging Details :	Wooden drum
Delivery Time :	3-5 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union,Alipay
Supply Ability :	4500 per month

Place of Origin:	China	Brand Name:	JQ/OEM
Certification:	ISO 9001,ROHS CE-EMC FCC SDOC	Model Number:	GJXH

Detail Information
Place Of Origin:	Guangzhou,China	Manufactuer:	Yes
Type:	Drop Cable GJXH	Fiber Type:	G657A1/A2/G652D/G657A1/G657A2
Jacket:	LSZH PVC	Length:	1km Or 2km
Oem:	Available	Central Strength Member:	FRP Strength Member,steel Wire Strength Member
Weight:	10-20kg/km
Highlight:	Fig 8 FTTH Fiber Optic Drop Cable , 2km FTTH Fiber Optic Drop Cable , 2km LSZH PVC indoor drop cable

Product Description

Indoor Drop Cable Single Mode 1/2/4 Core FTTH Fig 8 Fiber Optic Drop Cable

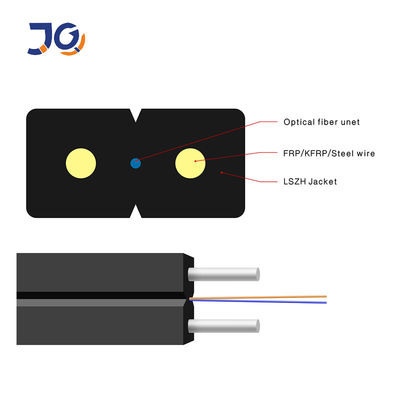

The structure is1-4 colored fibers colored fiber combined with two FRP (or steel wires),which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.Drop cable is designed for last-one-mile in the

FTTx network, enhancing the accessibility to the fiber and maximizes the installation work ability.High tensile of the diameter 1.0mm steel wire meet the requirement of self-supporting and reducing the installation cost.Two parallel FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber.Novel flute design, easily strip and splice, simplify the installation and maintenance

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in fiber optic network.

The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.

Technical parameters

Product Model	Fiber Count (core)	Cable Diameter(mm)	Cable Weight (kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/ShortTerm(N)	Bending Radius Static/Dynamic
GJXH	1	(2.1+0.1)*(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	2	(2.1+0.1)x(3.1+0.1)	10	1000/2200	200/1000	15/30
GJXH	4	(2.3+0.1)*(3.3+0.1)	12	1000/2200	200/1000	\|15/30
GJXFH	1	(2.1+0.1)x<(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	2	(2.1+0.1)x(3.1+0.1)	9	800/1800	200/1000	15/30
GJXFH	4	(2.1+0.1)x(3.1+0.1)	11	800/1800	200/1000	15/30
GJYXCH	1	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXCH	2	(2.1+0.1)*(5.1+0.1)	21	1500/2500	500/1300	\|15/30
GJYXCH	4	(2.1+0.1)x(5.1+0.1)	21	1500/2500	500/1300	15/30
GJYXFCH	1	(2.1+0.1)*(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	2	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30
GJYXFCH	4	(2.1+0.1)x(5.1+0.1)	20	1500/2500	500/1300	15/30

Feature

1.Two parallel steel wire strength members ensure good performance of crush resistance to protect the fiber.

2.Novel flute design, easily strip and splice, simplify the installation and maintenance.

3.Low smoke zero halogen and flame retardant sheath.

4.Single mode (2.0±0.2)x(3.0±0.2)mm.

5.Compliant with Telcordia GR-326-CORE specification.

Application

Adopted to outdoor distribution.
As pigtail of communication equipment
Suitable for communication equipment.
Can be installed conveniently and perated simply

Package

Nominal shipping length of the cable will be 1 or 2 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Single Mode 2km Fig 8 FTTH Fiber Optic Drop Cable 2

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
