G652D G657A Indoor Drop Cable
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553

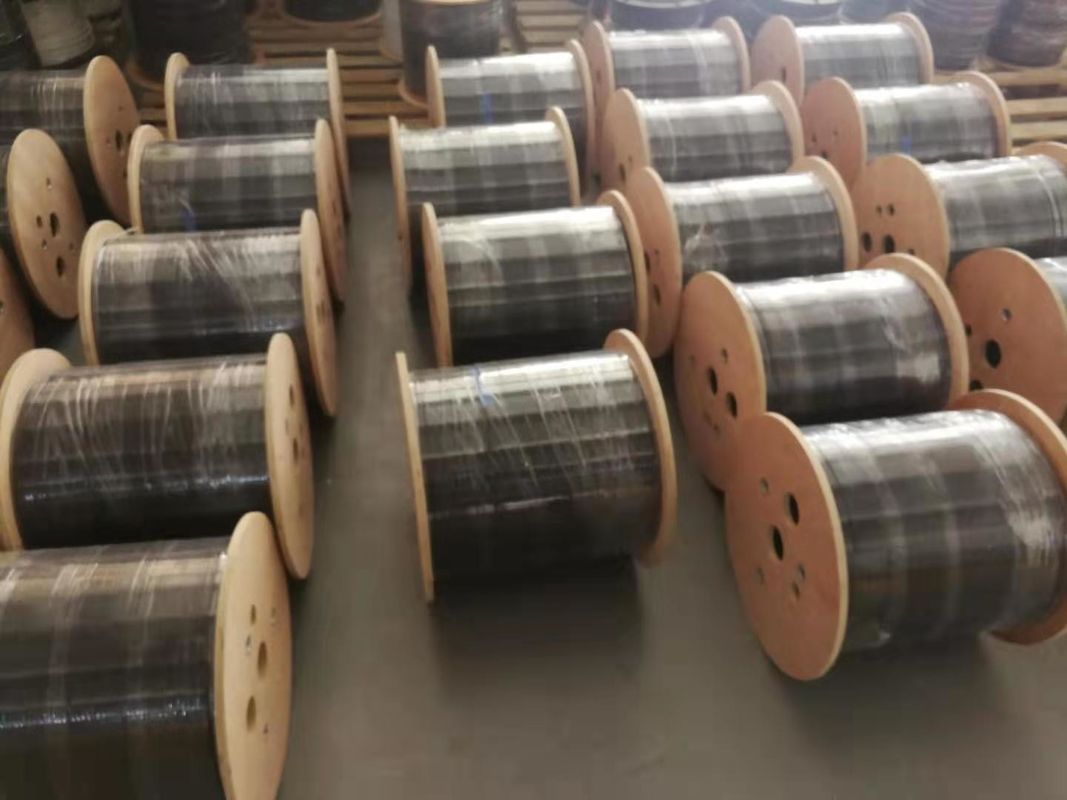

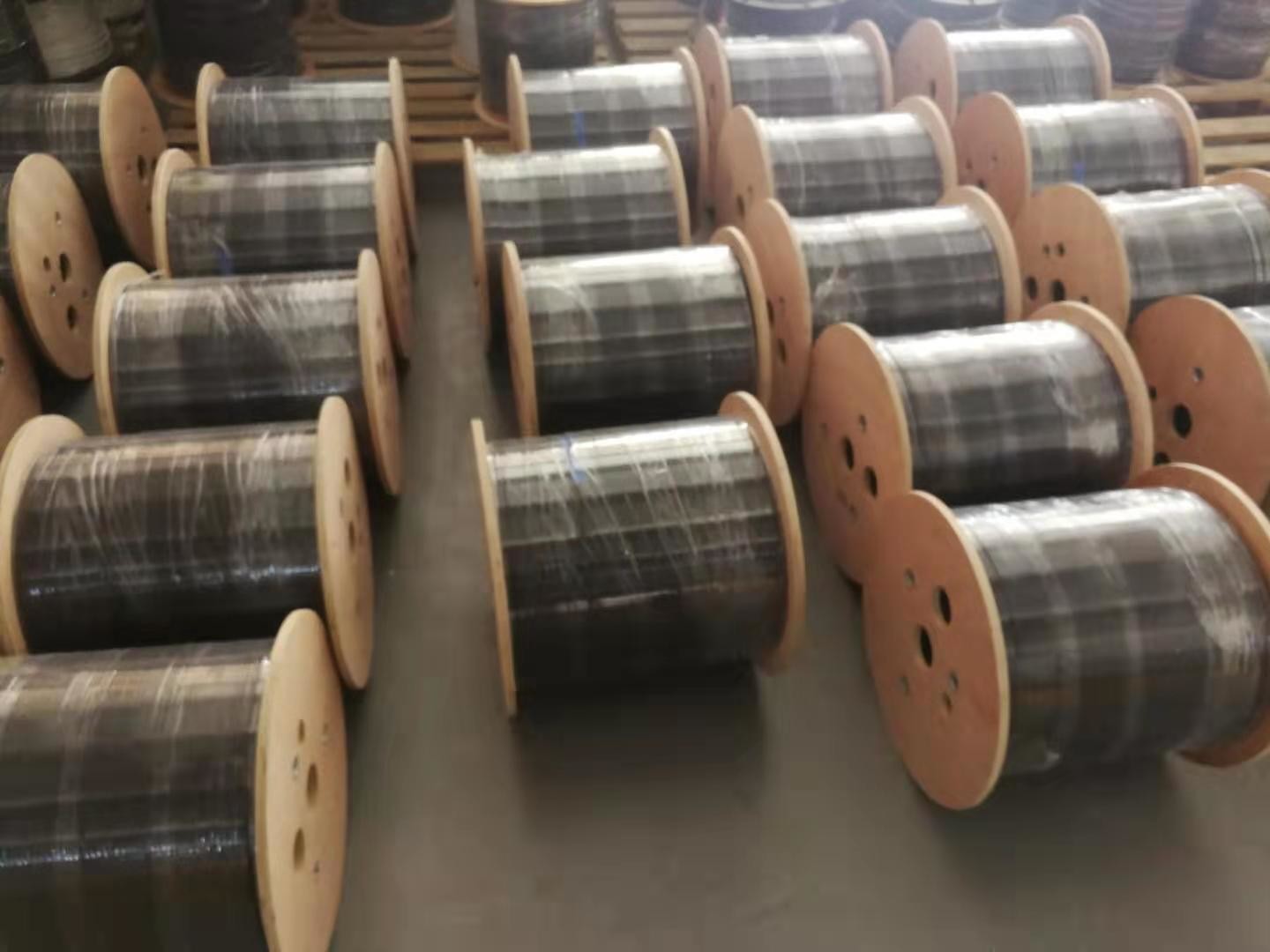

| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | GJYXCH |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Brand Name: | Jiqian |
|---|---|---|---|
| Number Of Conductors: | 1/2/4 | Application: | Outdoor Aerial |
| Fiber Type: | G652D/G657A1/G657A2 | Certification: | ISO 9001 |
| Manufacturer: | Yes | Outer Sheath: | LSZH |
| Fiber Brand: | Fiberhome/YOFC | ||
| High Light: | GJYXCH FTTH Fiber Optic Drop Cable,GJYXCH fiber optic drop wire,GJYXCH 4 core drop cable |
||
Product Description

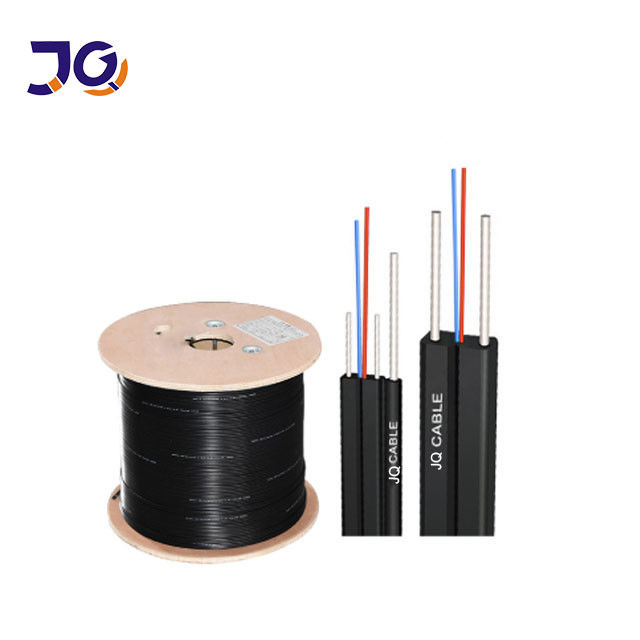

GJYXCH Self-Support Steel Wire Fiber Optic Cable FTTH Single Mode Drop Cable
FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.
The indoor fiber construction comprises of 1,2,4 cores optical fibers, 2 parallel FRP (Fiber Reinforced Plastic) strength member and LSZH Jacket. Outdoor FTTH cable construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Fiber used in these cables are bend insensitive and can be used for applications where multiple bends are present. These light weight cables are suitable for direct installation in Villas, Multi dwelling units and have excellent crush and impact resistance properties.
Cable Options
1.Fiber Count:1/2/4 Core
2.Fiber Type: G652D, G657A1, or G657A2 single-mode fiber, or other types of fiber
3.Jacket Material: Environmental flame-retardant polyvinyl chloride (PVC) or environmental low smoke zero halogen flame retardant polyolefin (LSZH)
3.Jacket Color: Black,White
Applications
FTTH Indoor/Outdoor
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
|
Attenuation (+20°C) |
@850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | |||
|
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
|
||
Technical Parameters
Fiber Count |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| 2 | (2.0±0.2)×(3.4±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| 4 | (2.0±0.2)×(4.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
