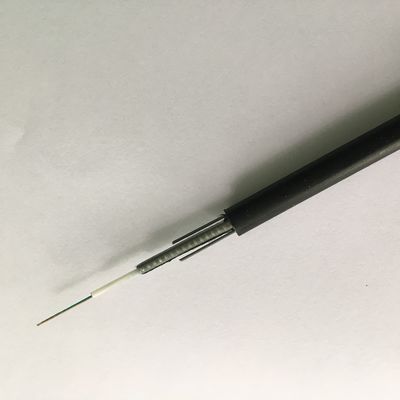

GYXTW 4b1 Armoured Singlemode Aerial Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYXTW

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Aerial/duct Number Of Conductors: 4 6 8
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Highlight:

Singlemode Aerial Fiber Optic Cable

,

GYXTW Aerial Fiber Optic Cable

,

Dia 7.6mm GYXTW 4b1 Fiber Optical Cable

Product Description

GYXTW Armoured Singlemode Outdoor 2 4 6 8 12 core Fiber Optic Cable

Outdoor fiber optic cable gyxtw 4b1 Armored Fiber Optic Cable

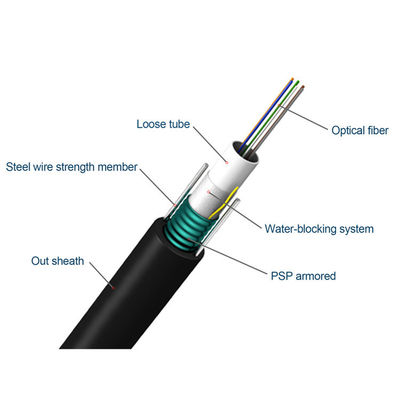

GYXTW single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials



and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials



are distributed into interstices between them to guarantee the compactness and longitudinal water-blockingperformance.



Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

GYXTW 4b1 Armoured Singlemode Aerial Fiber Optic Cable 0



Technical Parameters

Part NO:Increased by 2 fiber Fiber Count Tubes Fillers Cable OD(mm) Cable Weight(kg/km) Tensile Strength Long/Shot Term(N) Crush Resistance Long/Short Term(N)
GYXTM-2~12 2~12 1 0 7.6 87 600/1500 300/1000
GYXTM-14~24 14~24 1 0 8.5 120 600/1500 300/1000
GYXTM-2~12 2~12 1 0 8.8 116 600/1500 300/1000
GYXTM-14~24 14~24 1 0 9.6 134 600/1500 300/1000





Storage/Operating Temperature:-40℃ to +70℃



Bend Radius (Static/Dynamic):10D/20D





Optical Characteristics



    G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20°C)

@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm





Feature

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound, 100% cable core filling
7. PSP/PAP enhancing moisture-proof
8.Steel wire used as the central strength member

Standard Fiber Colour Identification



NOTE:

a. The colour of fiber in loose tube is arranged from No.1 colour successively

b. Other colour indentifications available on request

Tube Full Colour Identification



NOTE:

a. The colour of loose tube in cable is arranged from No.1 colour successively



Application Scope:

♥ Adapted to outdoor distribution.

♥ Suitable for aerial, pipeline laying method.

♥ Long distance and local area network communication.

fiber optic cable price per meter

Features:

♥ Corrugated Steel Armor:

Provide additional mechanical protection;

♥ Two Parallel Steel:

Improving the tensile strength;

♥ Medium Density Polythylene Jacket:

Low friction in installation;

Excellent protection from environmental hazards;

♥ Sheath Markings:

Provide positive identification and length verification;

Customized print available;

Optical embedded stripe available for additional cable identification;

♥ Cable Watertight Method:

PSP enhancing moisture-proof

Loose tube filling compound



COMPANY PROFILE
 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.



FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
